24
1) Remove the right side front shroud as outlined in Section 6.1.
2) Remove the right side middle shroud as outlined in Section 6.2.
3) Remove the console as outlined in Section 6.3.
4) Remove the handlebar from the rope as outlined in Section 6.4.
5) Remove the rubber center cover as outlined in Section 6.5.
6) Remove the plastic center cover as outlined in Section 6.6.
7) Remove the 2 screws holding the speed sensor to the frame (Figure A).
8) Remove the 2 screws holding the speed sensor to the speed sensor bracket (Figure B).
9) Tie a string / wire to the plug end of the defective speed sensor and pull the defective speed sensor out of the frame (Figures C & D). This will leave the
length of string / wire inside of the frame.
10) Tie the string / wire inside of the frame to the plug end of the new speed sensor and pull the new speed sensor through the frame.
11) Reverse Steps 1-10 to install a new speed sensor. NOTE: When remounting the speed sensor to the frame, be sure to space the speed sensor so that it
reads the magnet but does not make contact.
FIGURE A
FIGURE B

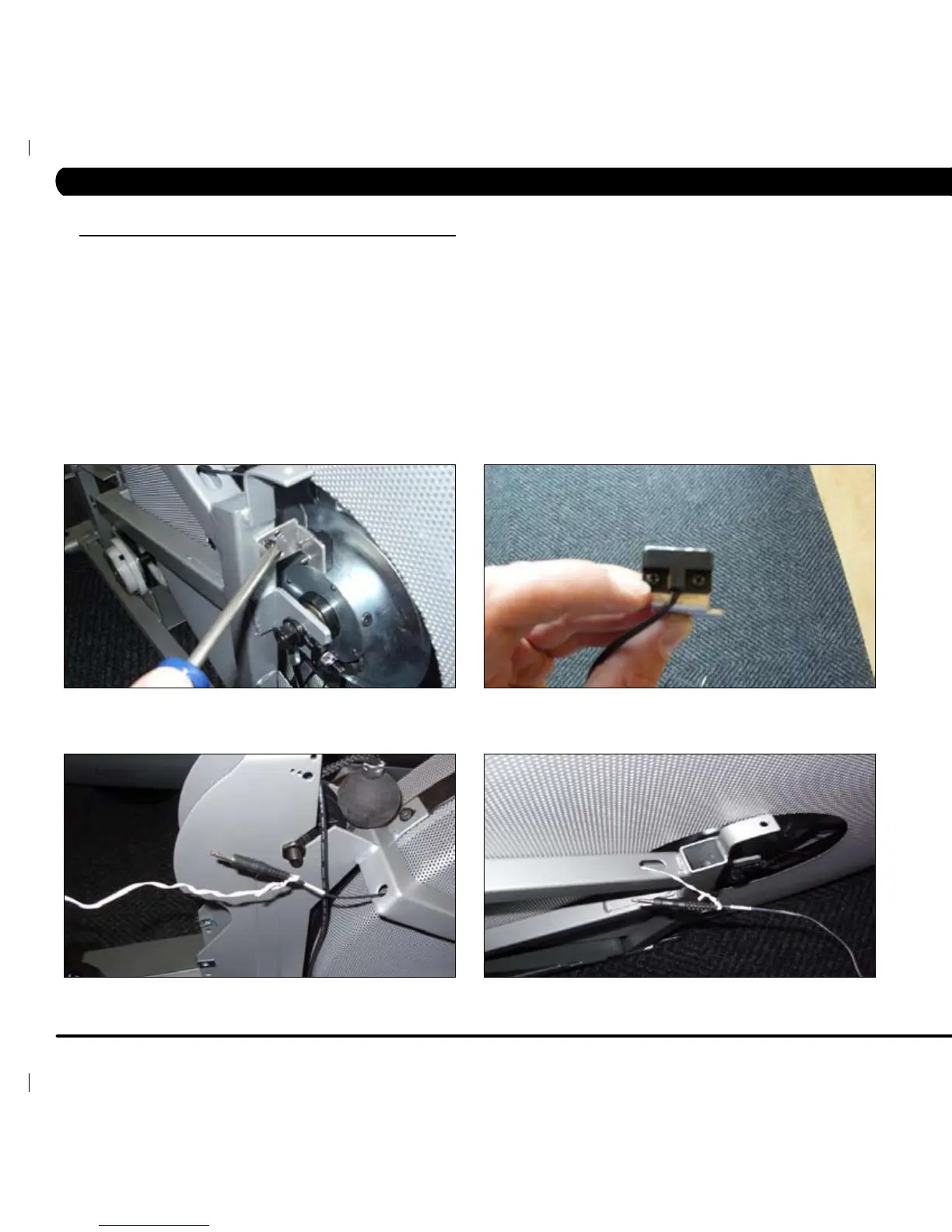

6.12 SPEED SENSOR REPLACEMENT
FIGURE C
FIGURE D
CHAPTER 6: PART REPLACEMENT GUIDE
