6.17 STROKE SENSOR REPLACEMENT
CHAPTER 6: PART REPLACEMENT GUIDE
1) Remove the handlebar bracket as outlined in Section 6.15.
2) Remove the 2 long screws / nuts holding the seat rail to the frame (Figures A & B).
3) Disconnect the console cable from the stroke sensor wire (Figure C).
4) Cut the tie strap holding the stroke sensor wire to the seat rail (Figure D).
5) Remove the 2 screws holding the stroke sensor to the bottom of the seat rail (Figure E).
6) Tie a cable around the end of the stroke sensor wire (Figure F), and pull the stroke sensor out of the seat rail, sensor first.
7) Reverse Steps 1-6 to install a new stroke sensor. NOTE: Use the cable you just ran to pull a new stroke sensor into position inside of the seat rail.
8) Test the rower for function as outlined in Section 6.19.

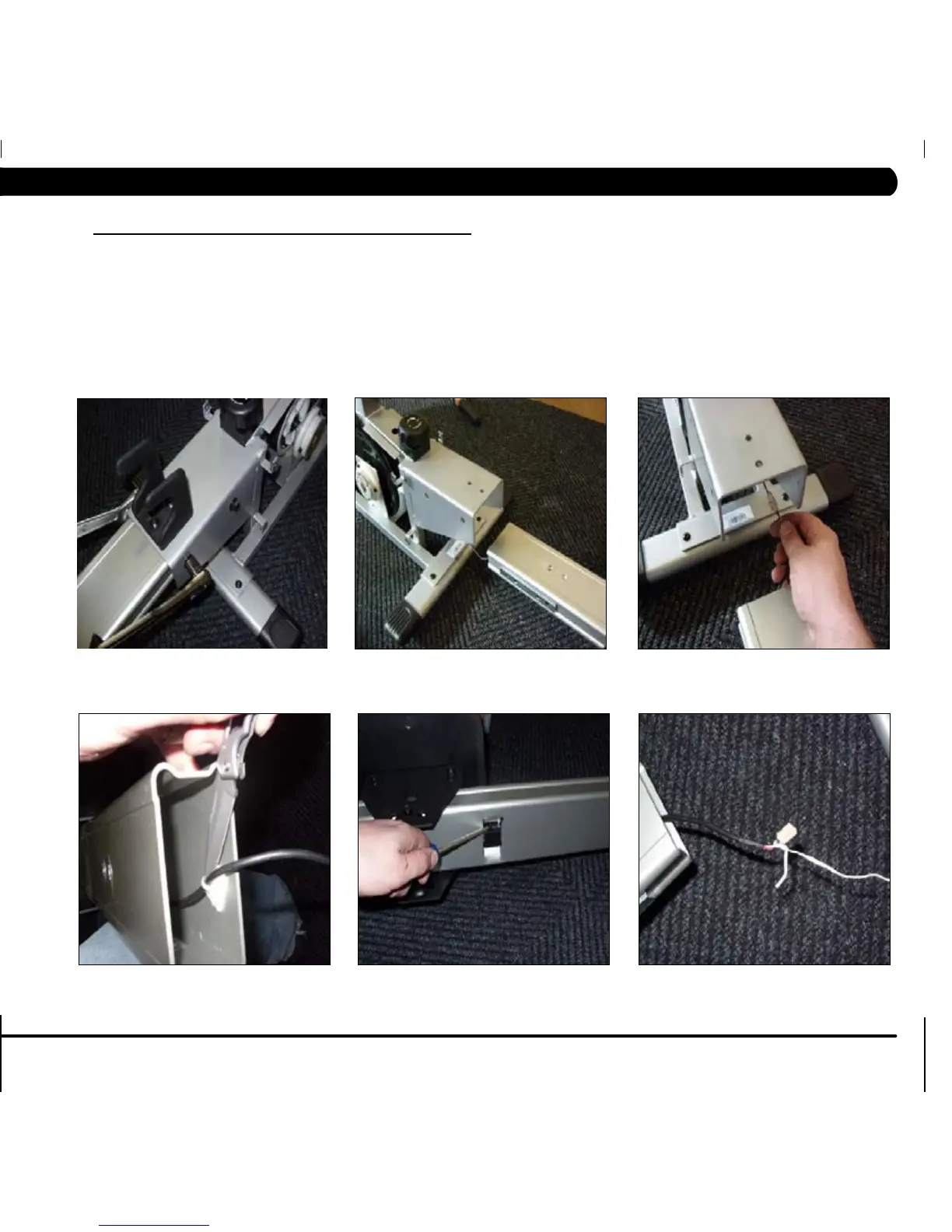

FIGURE A
FIGURE B
FIGURE C
FIGURE D FIGURE E FIGURE F
To Next Page
