Connecting your Maevex 5150 decoder
This section describes how to connect your Maevex 5150 decoder.

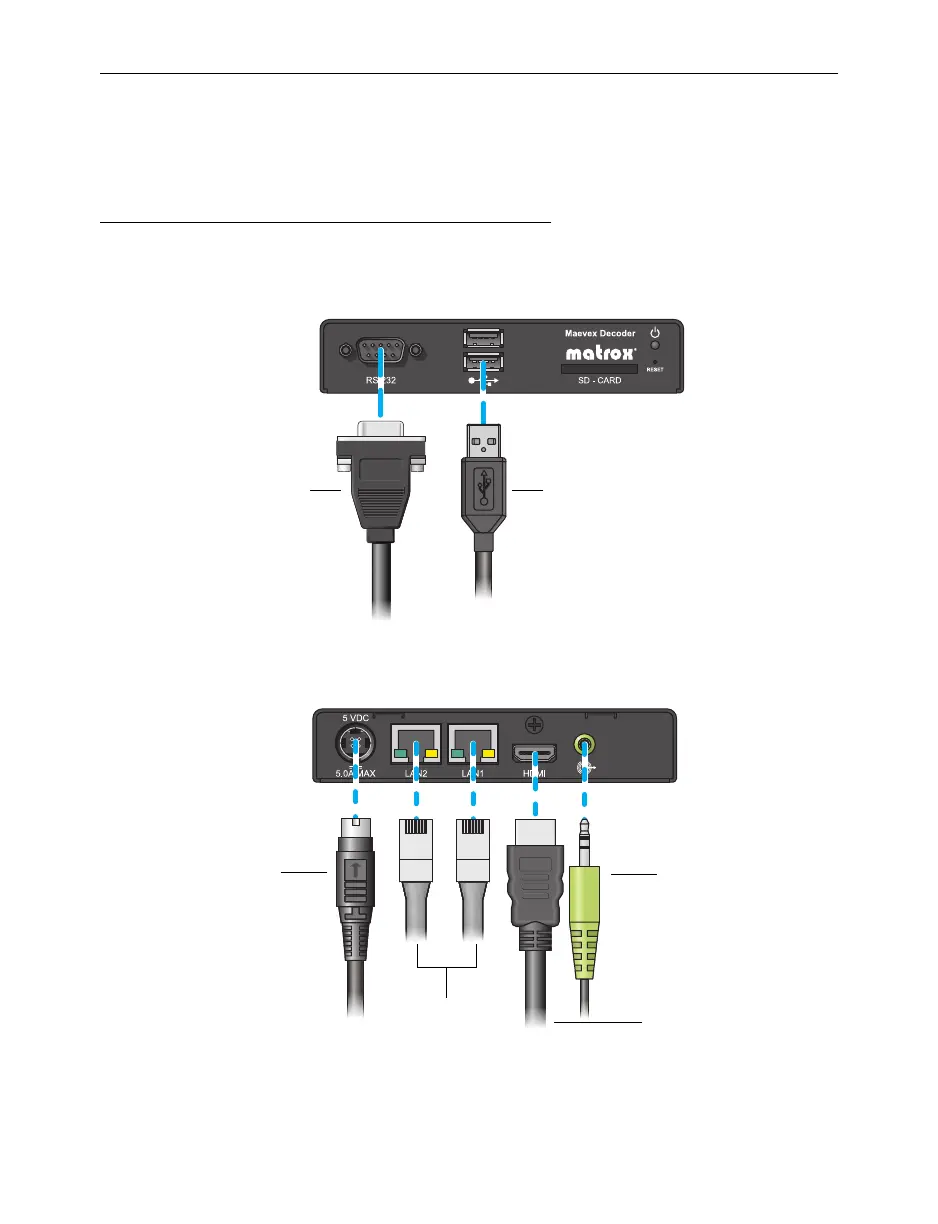

Connection overview
Maevex 5150 decoder (Front)
Maevex 5150 decoder (Back)
RS232
(RS232 device)
USB
5V DC
power
LAN1/LAN2
(network or
decoder)
HDMI
(monitor)
Line Out
