Signal Connections
The Maverick MK2 Spot can receive DMX, sACN or Art-Net™ signals. The Maverick MK2 Spot
has 2 etherCON® through ports, and 3- and 5-pin DMX In and Out ports. For more information
about DMX, read the DMX primer at:
http://www.chauvetlighting.com/downloads/DMX_Primer_Rev9_ML_WO.pdf
Art-Net™
Connection
Art-Net™ is an Ethernet protocol that uses TCP/IP, which transfers large amounts of DMX512
data using an etherCON® RJ45 connection over a large network. An Art-
Net™ protocol
document is available from www.chauvetprofessional.com.
Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.
Chauvet Professional recommends using unicast Art-Net™ for best results.
sACN
Connection
Also known as ANSI E1.31, streaming ACN is an Ethernet protocol that uses the layering and
formatting of Architecture for Control Networks to transport DMX512 data over TCP/IP or any
other ACN compatible network. ACN is maintained by the Professional Lighting and Sound
Association (PLASA).

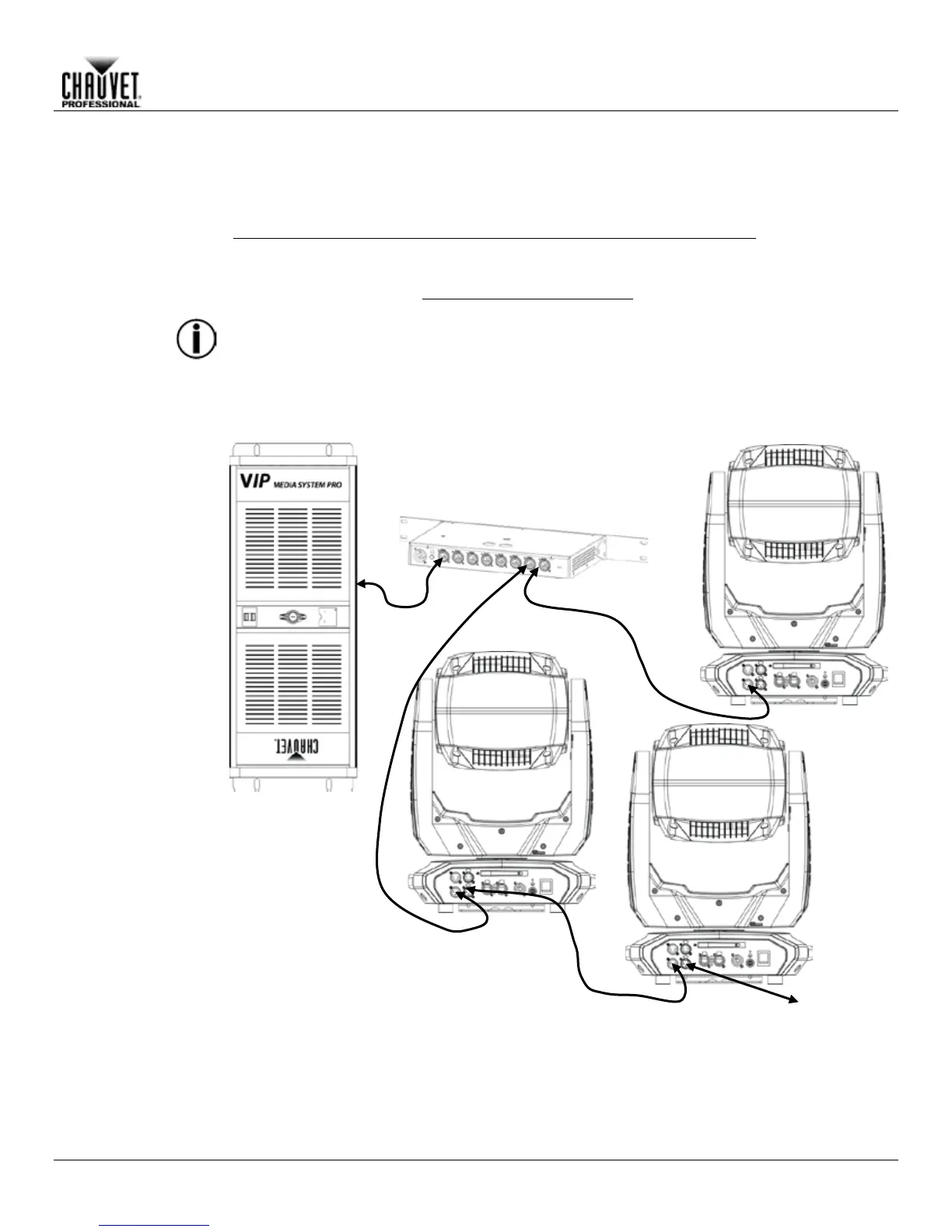

Connection
Diagram
Switch or Router
(such as the NET-Switch
from CHAUVET Professional)
Computer/Controller
(running TCP/IP
protocol)
To other TCP/IP
Devices
