Positive Displacement Flow Meters
Piston Type, P-Series 7250 psi (500 bar) rated
* See temp chart in product manual.
** Receiver portion of 2 part transmitters are not rated Ex-Proof, consult factory.
*** Te on not used above 90°C for this high pressure rated product.
† Not available for hazardous location use. (Exceeds 130°C temp. Limit.)
Product includes single directional calibration, bi-directional
calibrations for Analog and Quadrature devices are optional.

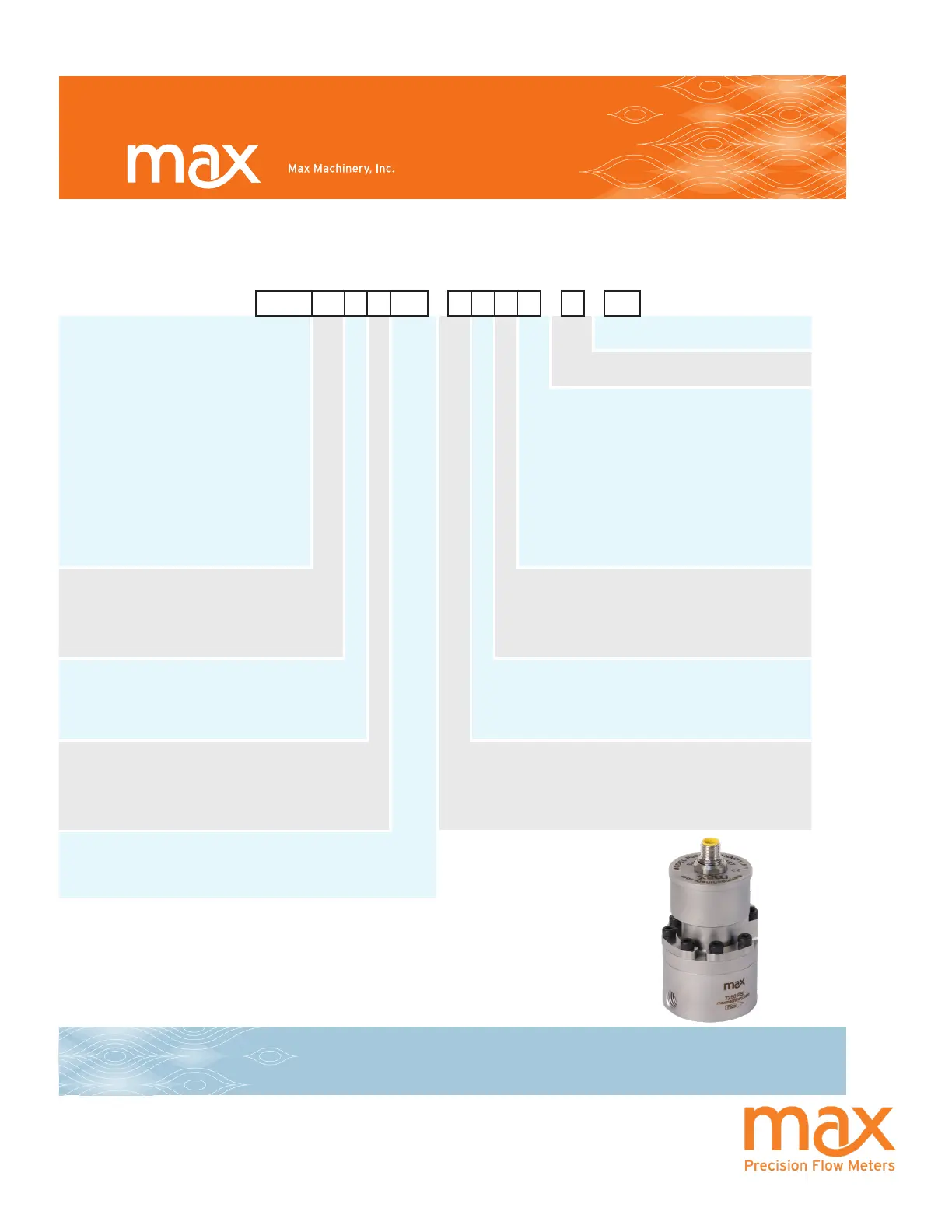

Flow Meter Selections Transmitter Selections
Model # HS
/ /
1
-
Non-Standard Options
Bi-Directional Cal: BID
1 Transmitter Type
Max Flow Range Output Type
0.2 Liters/Min P001 3 A A 4-20mA Output - Powered by 24 Vdc
2 Liters/Min P002 2 A B 4-20mA Output - Powered by 12 Vdc
A C 0-10 Volt Output - Powered by 24 Vdc
A D 0-10 Volt Output - Powered by 12 Vdc
P N 5V Pulse/Freq. - Powered by 5-26 Vdc
Q N 5V Quadrature - Powered by 5-26 Vdc
P S Current Sinking, Single Phase
Pressure Temperature Rating
7250 psi (500 bar) HS 1 90°C Industrial, 75°C Haz-Loc
2 155°C Ind./ 130°C Haz-Loc, 2 Part**
3 225°C -Industrial, 2 Part
†
Fluid Connection Electrical Connection
SAE 2 1 Industrial, Turck® Connector
1/4” and 6mm Tube 3 2 Hazardous Location, 1/2 Inch Conduit*
Seal Selection Signal Type
Viton® - FKM 1 P Pulse
Per uoroelastomer - FFKM 5 A Analog
Q Quadrature
Options
None NA
