Mechanical fastening Holes with M5 threads are available on the housing for
mounting the DSE-17 sensor.

Figure 3.1 and Figure 3.2
– A sensor bracket is required for the DSE-17-160 sensor.
– Two sensor brackets are required for the DSE-17-300 and
DSE-17-420 sensor.
1 Thread for fastening 2 Length of connection cable about 140mm

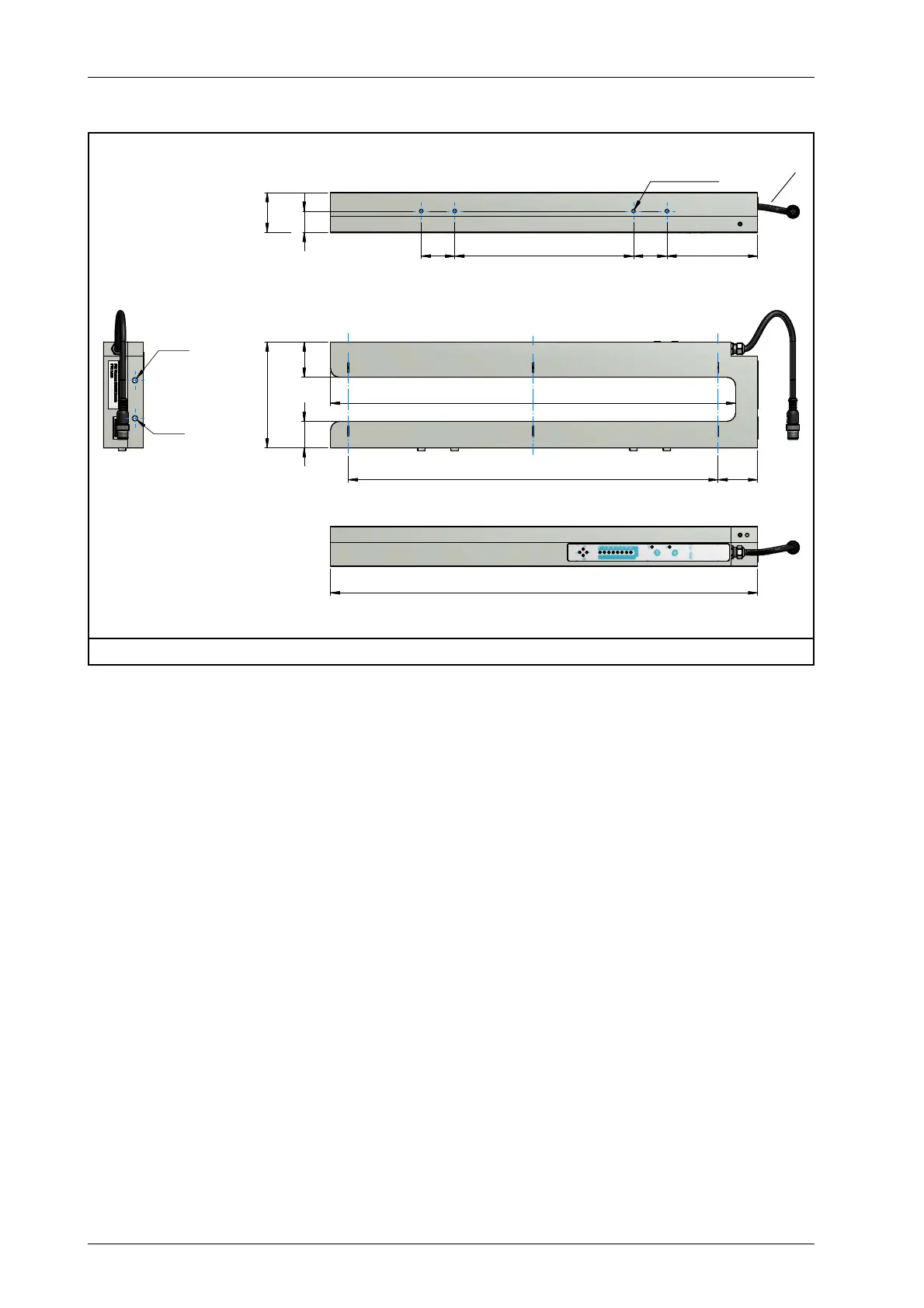

Figure 3.2: Dimensions of DSE-17-420
2
4
.
1
4
5
38 203 38 103
4
0
3
0
1
2
0
460
485
P6
P6
420
M5x5 (4x)
44.9
DSE-17-420 sensor
2
1
