Maxcess FIFE SE-44R User Manual

INSTALLATION 3 - 4
SE-44R / SE-44
Ultrasonic Sensor
www.maxcess.eu MI 1026 1 A
Installation.fm
Sensor alignment The SE-44 sensor will work satisfactorily in a position
perpendicular to the web. If the application demands greater
precision, however, the sensor should be installed at an angle of
45°
≤ϕ≤55° to the web. For optimal performance of the
sensor, the angle must be 45° (see
figure 3.3) .
Sensor-
mount
square bar
ABC
X
max.
length
MB-20 20 1600 68 42,5 15,5
MB-25 25 2200 71 46,5 18,5
MB-32 32 2400 76 51,5 23,5
1–square bar

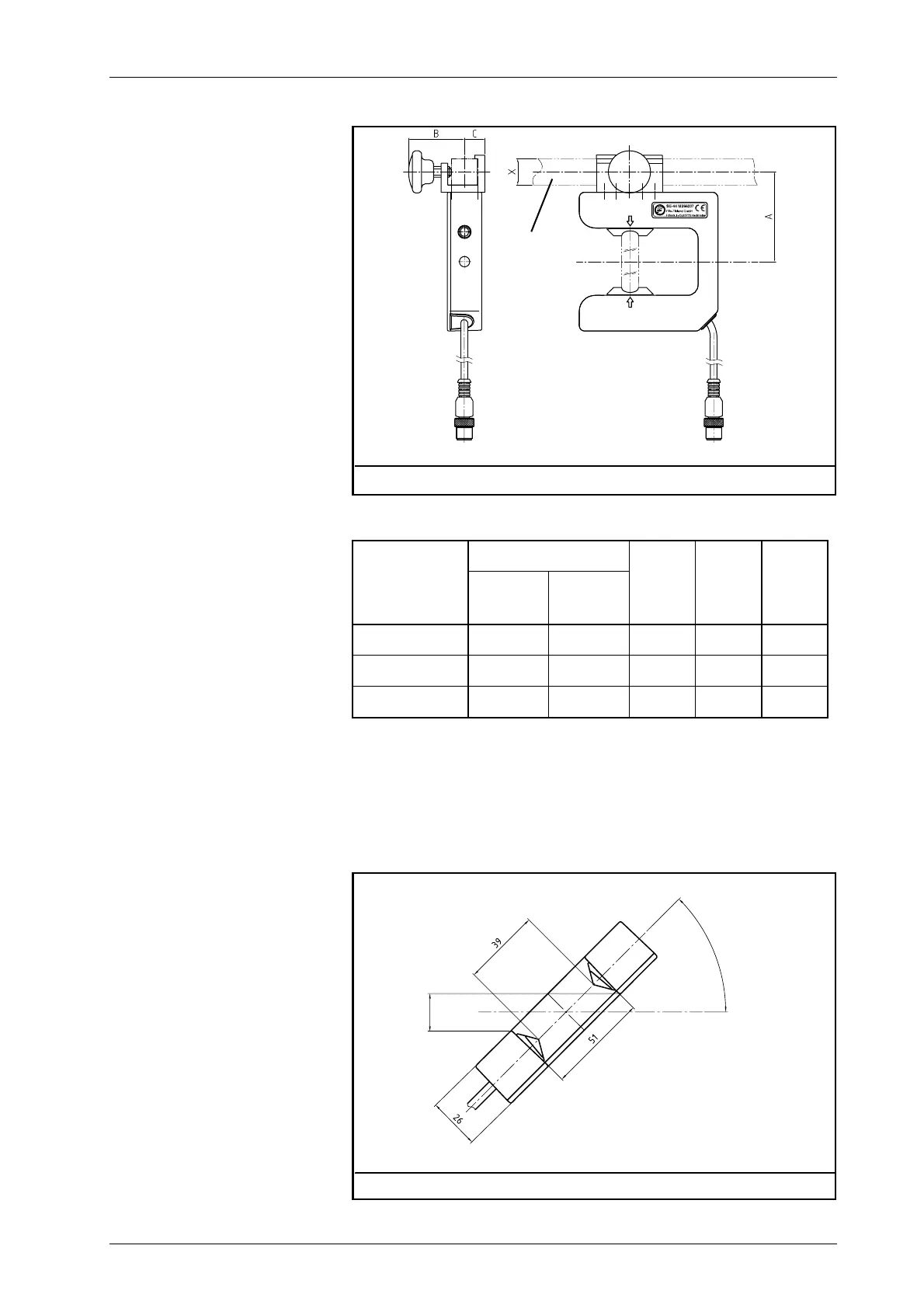

Figure 3.2: SE-44 with assembly suspension type MB
1
1–Web 2 - Sensor axis
Figure 3.3: Sensor alignment
ϕ =45°
1
2
