INSTALLATION 3 - 2
SE-44R / SE-44
Ultrasonic Sensor
www.maxcess.eu MI 1026 1 A
Installation.fm

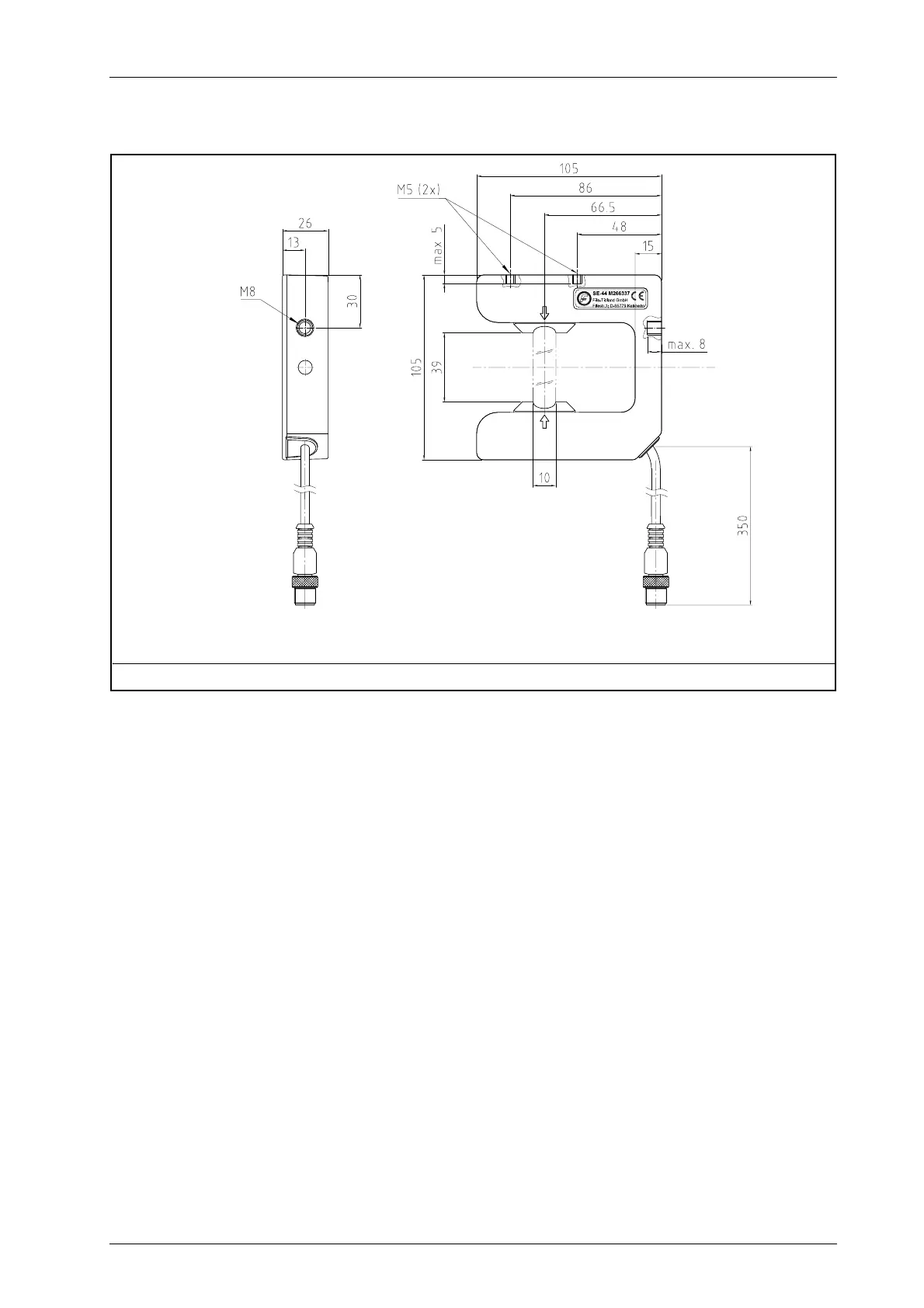

Dimensions The
figure 3.1
shows the dimensions of the SE-44 sensor.
Mechanical fastening Drill holes are available on the housing for fastening the SE-44
sensor in place (
figure 3.1
). A large variety of assembly options
are possible in connection with the various sensor mountings.
Sensor mounts of types M and MO are available for various
square bars for assembling the SE-44 sensor with M8 or 7/16
drill holes
1-
Connection cable (Cable length for SE-44R: 80mm)
M8 –
M8 threading for assembly suspension type M or MO
M5 – M5 threading for assembly suspension type MB
Figure 3.1: Dimensions of SE-44
