4
English

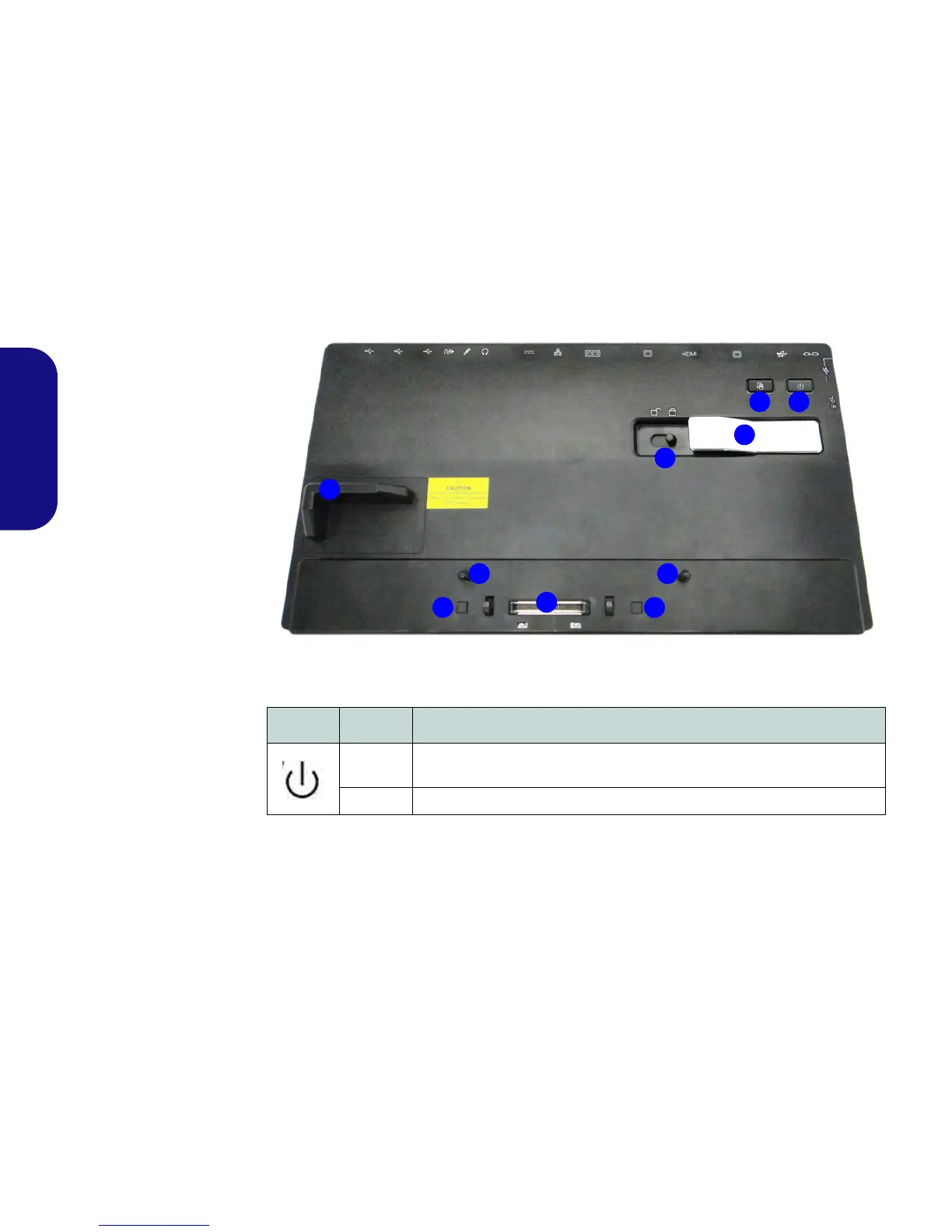

System Map: Front View
Power Button LED
Table 1 - Power Button LED
*To confirm the computer’s power status check the LED Power Indicators on the comput-
er itself.
Icon Color Description
Orange
The AC/DC adapter is Plugged In and the Computer is Off or in Hibernate
Mode*
Green The Docking Station is On or in Sleep Mode
Figure 1
Front View
1. Power Button LED
2. Backup Button (if a Hard
Disk is installed in the
Device Bay)
3. Lock Switch
4. Notebook Eject Latch
5. Notebook Placeholder
6. Retaining Pins
7. Docking Port
8. Eject Pins
2 1
7
8
3
5
8
4
6 6
