Back Panel Connectors

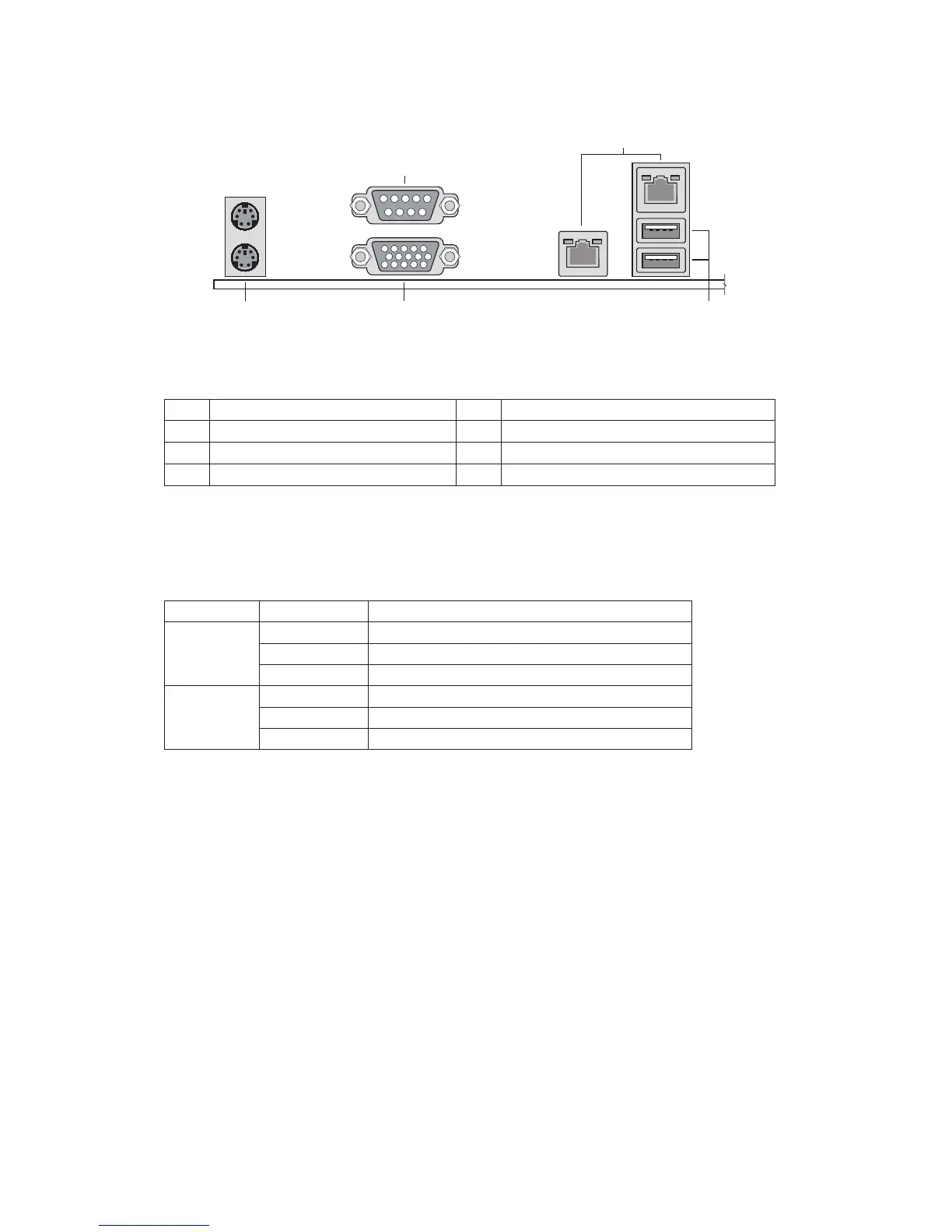

Figure 4. Back panel Connectors
Table 4. Back panel Connectors
Label Description Label Description
A. Stacked PS2 Mouse/Keyboard Ports D. NIC 1/2 (10/100/1000 Mbps)
B. Serial A E. USB1-2
C. Video
The NIC LEDs at the right and left of the NIC provide the following information:
Table 5. NIC LEDs
LED LED State Description
Right Off No network connection
Solid Green Network connection in place
Blinking Green Transmit/receive activity
Left Off 10 Mbps connection (if left LED is on or blinking)
Solid Green 100 Mbps connection
Solid Amber 1000 Mbps connection
