Only use original gaskets, made of food-safe rubber.
The gaskets and their housings must be carefully lubricated before re-use.
A full spare set of all gaskets is supplied with the machine, plus a tube of food-safe grease for
lubricating them.

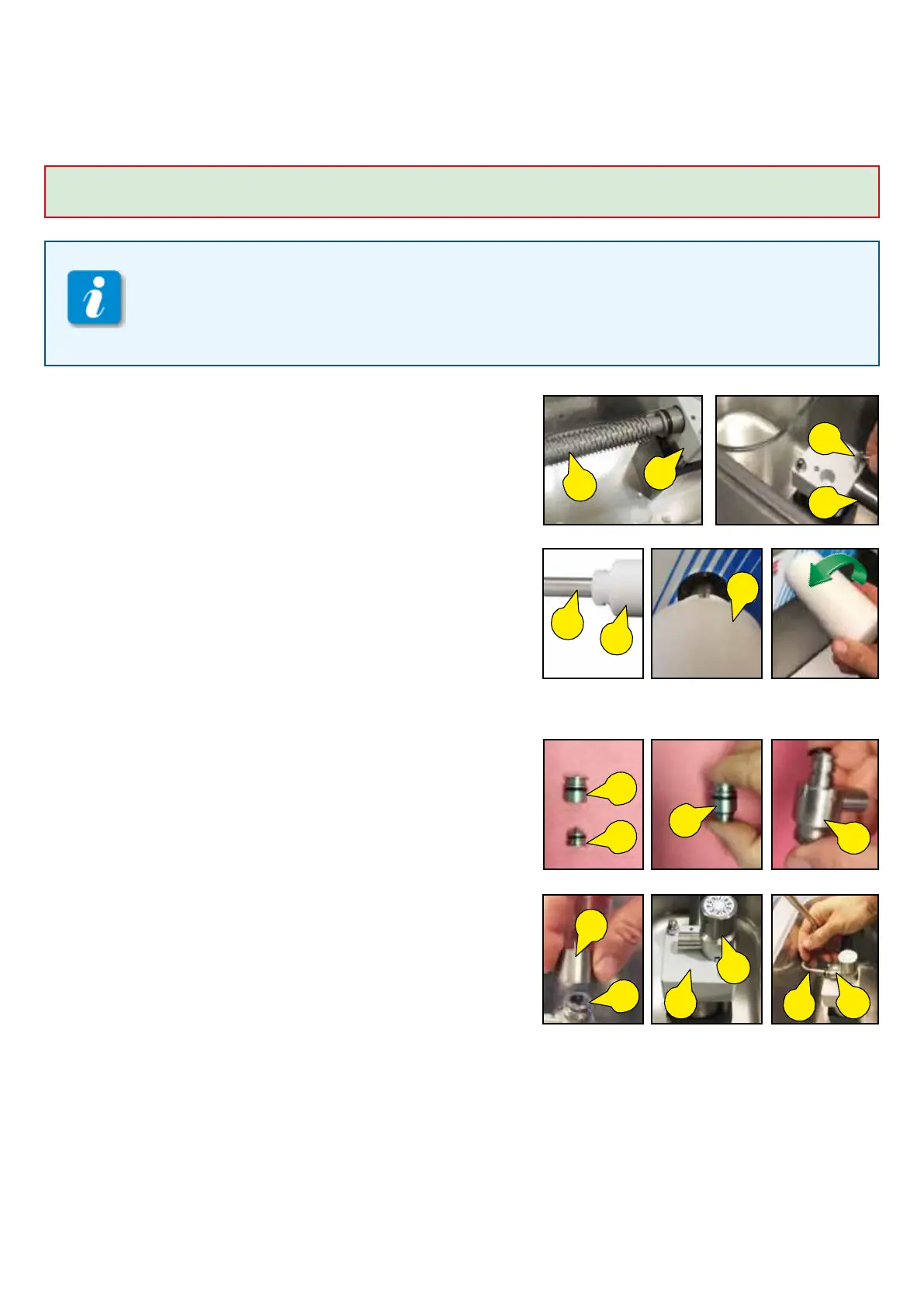

- Insert the labyrinth (11) in its housing in the pump cover (4).
- Insert the fixing rod (10) in its housing hole to lock the labyrinth (11)
in place.
- Insert the labyrinth tube (9) in the dispensing tap (8).
- Fit the slot in the dispensing tap (8) onto the pin located on the hole
in the machine’s front panel.
- Then turn it by 45°, in an anticlockwise direction, to lock the dispens-
ing tap (8).
• Reassembling the aspiration tube and rotary pressure
pump air regulator
- Insert the adjustment valve (7) in the valve holder (6).
- Insert the valve holder (6) in the air regulator (3).
- Screw the air regulation knob (5) onto the air regulator (3) by turning
it in a clockwise direction.
- Insert the air regulator (3) in its housing on the pump cover (4).
- Insert the aspiration tube (2) in the air regulator (3).
