8. With platform in vertical position, insert the

replacement torsion bar into the LH platform and

runner pin, through LH runner, platform spacer and

engage with LH torsion bar housing (FIGS. 28-2 and

28-2A). Tighten locking screw on LH torsion

bar housing.

9. Do the LH TORSION BAR ADJUSTMENT

procedure in this manual.

LH TORSION

BAR

LH RUNNER

PLATFORM

SPACER

FIG. 28-2

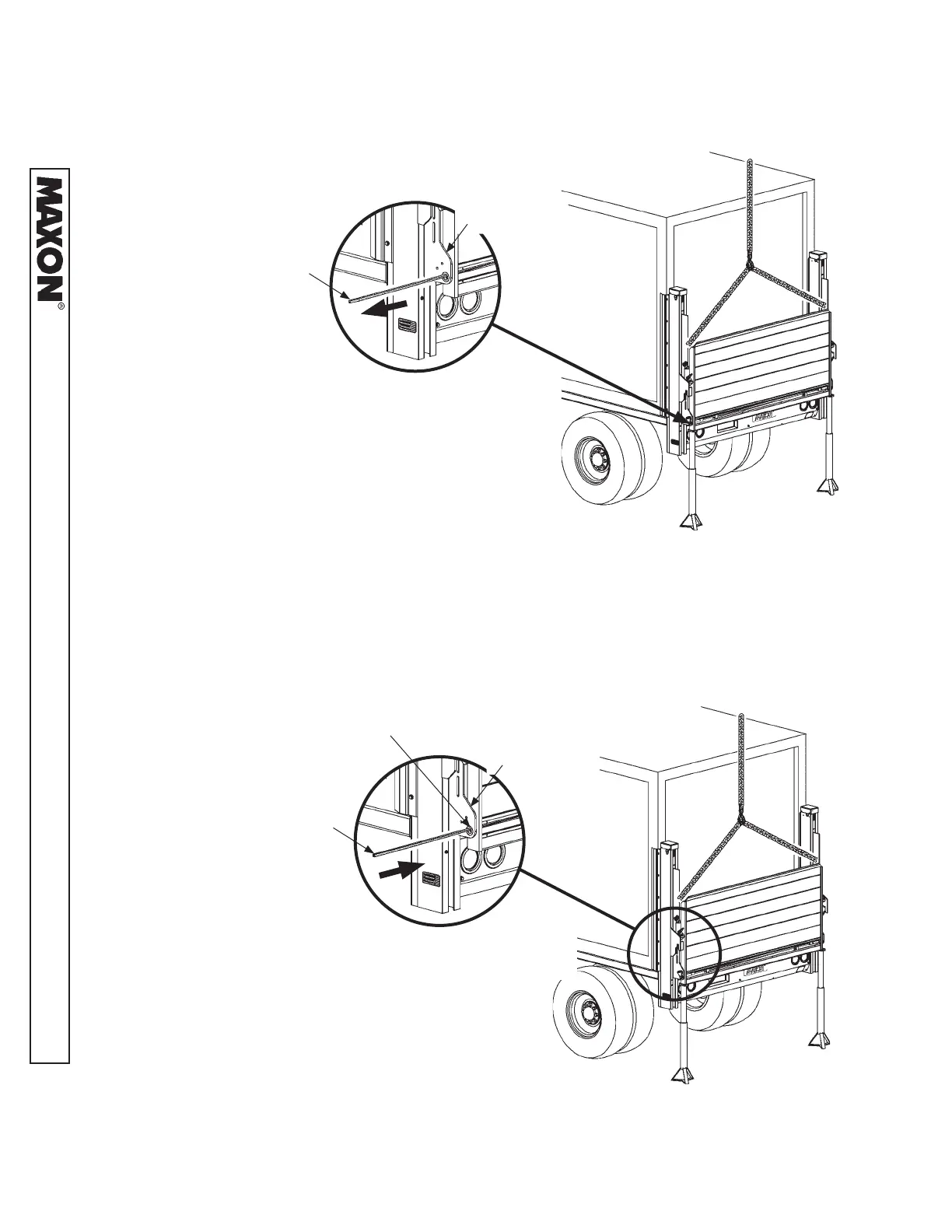

REMOVING LH TORSION BAR

FIG. 28-1A

7. Remove LH torsion bar (FIGS. 28-1 and

28-1A).

LH TORSION

BAR

LH RUNNER

FIG. 28-1

TORSION BAR REPLACEMENT - Continued

PERIODIC MAINTENANCE

REPLACING LH TORSION BAR

FIG. 28-2A
