Setup
Connections
EPOS4 50/5 Hardware Reference
CCMC | 2022-04 | rel10445
3-33
Table 3-30 Differential analog incremental encoder specification

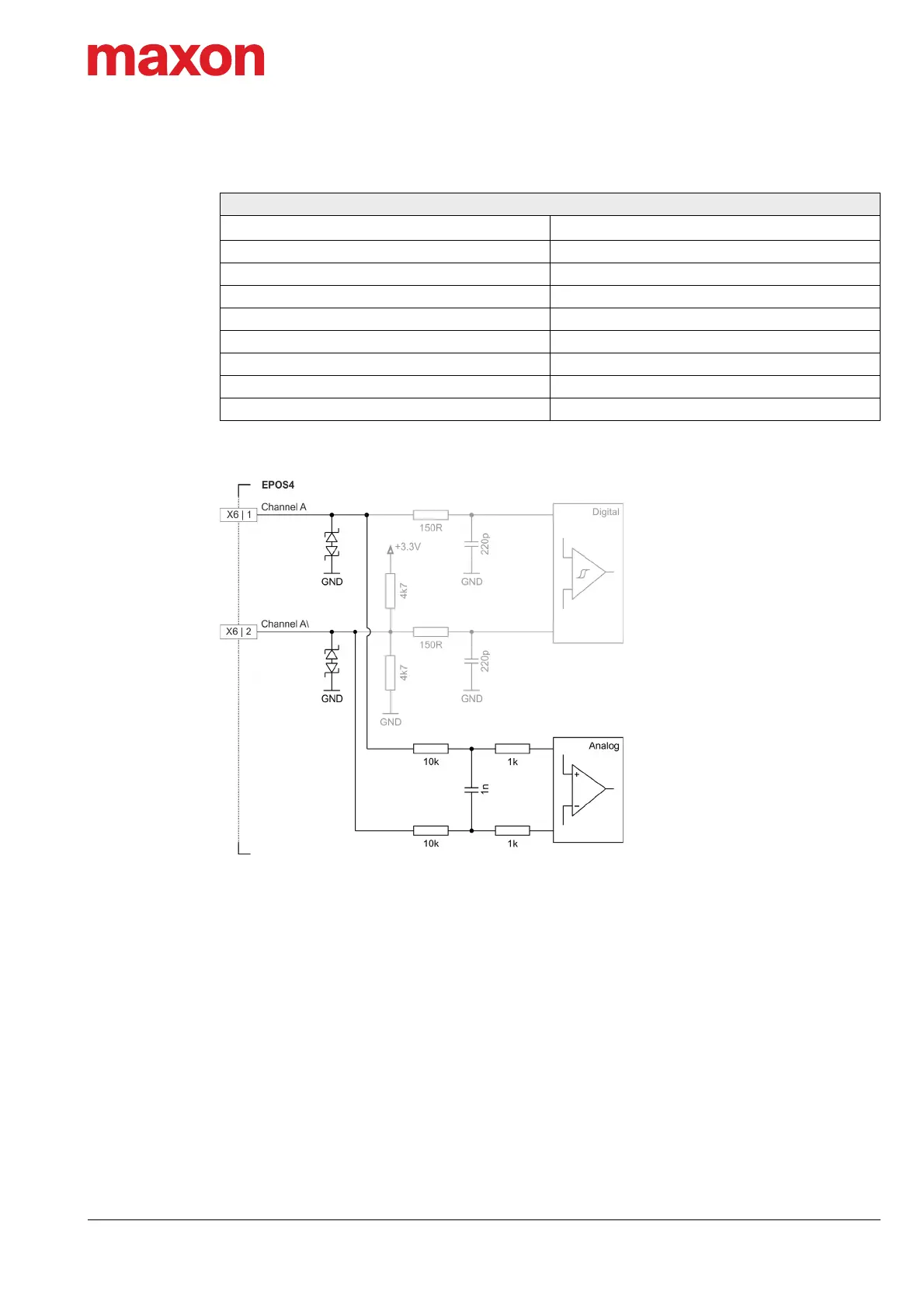

Figure 3-19 Analog incremental encoder input circuit Ch A “differential” (analogously valid for Ch B)
Continued on next page.
Analog incremental encoder SinCos (differential)
Auxiliary output voltage (V
Aux
)
+5 VDC
Max. auxiliary supply current 150 mA
Input voltage ±1.8 V (differential)
Max. input voltage ±12 VDC
Common mode voltage −9…+4 VDC (referenced to GND)
Input resistance typically 10 kΩ
A/D converter 12-bit
Resolution 0.88 mV
Bandwidth 10 kHz
