Setup
Connections
EPOS4 50/5 Hardware Reference
CCMC | 2022-04 | rel10445
3-53

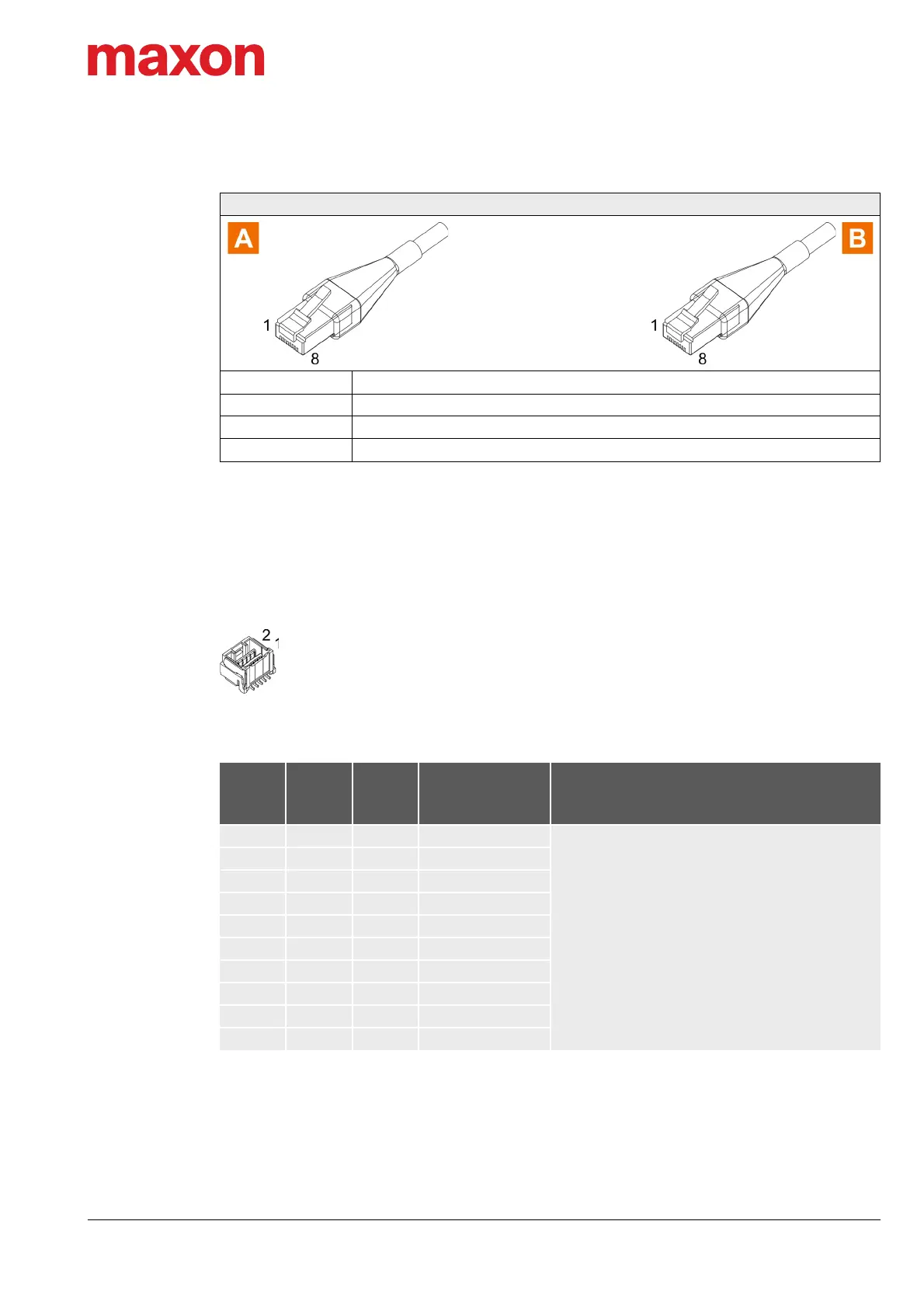

Table 3-62 Ethernet Cable
3.3.14 Extension Signal (X16)
The connector provides direct access to the signal extension slot EXT2 (chapter “3.3.15 Extension Slots
(EXT1 & EXT2)” on page 3-54) thus allowing the use of signal extension cards (such as for additional abso-
lute sensors or customized signal extensions). The pin assignment is directly related to the corresponding
extension card.
Figure 3-42 Extension Signal connector X16
Table 3-63 Extension Signal connector X16 – Pin assignment
For the matching prefab cable assembly Table 3-27 on page 3-29.
Ethernet Cable (422827)
Cross-section Cat. 5e SF/UTP (ISO/IEC 11801), 1:1 patch cable, green
Length 2 m
Head A RJ45 (8P8CS) EIA/TIA-568B
Head B RJ45 (8P8CS) EIA/TIA-568B
X16
Head A
Prefab
Cable
Head B
Signal Description
Pin Color Pin
1 white 1 EXT-1
Depending on signal extension card inserted in
extension slot EXT2 (Table 3-64)
2 brown 2 EXT-2
3 green 3 EXT-3
4 yellow 4 EXT-4
5 grey 5 EXT-5
6 pink 6 EXT-6
7 blue 7 EXT-7
8 red 8 EXT-8
9 black 9 EXT-9
10 violet 10 EXT-10
