8-Wire Feeder and Torch Connection
Comprehensive Assembly Diagram

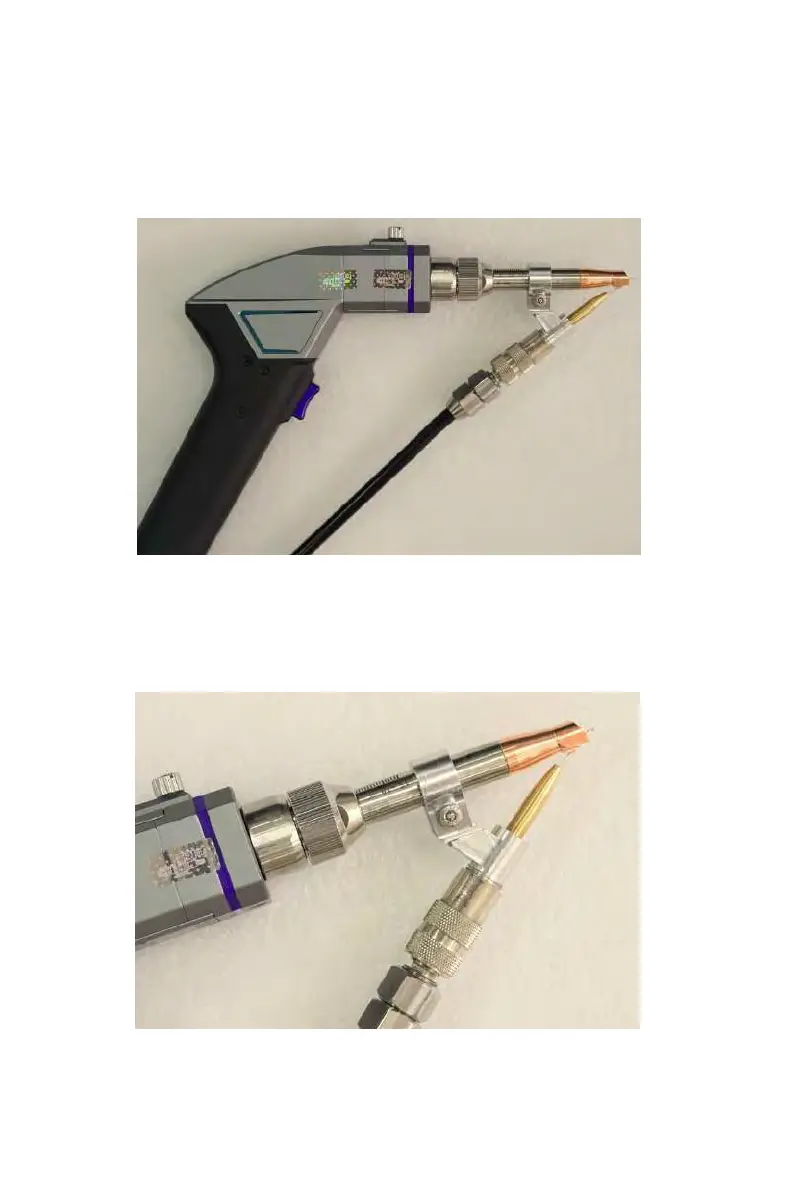

(1) Secure the wire feed tube
Insert the wire guide tube into the push-in connector
Wire Feed Tube Assembly
57
