Maxum 4100 SCB - Fuel Tank and Management Systems

22 Chapter 2: Components/Systems
4100 SCB Owner’s Manual Supplement
Fuel Tank Locations
Fuel Management Board
Your yacht may or may not be equipped with a fuel management board.
• On models equipped with a fuel management board (located under the galley steps and thru the access hatch
next to the water heater), fuel can be directed from either tank to the engines and optional generator using the
supply valves.
• On models that are not equipped with a fuel management board, the port fuel tank provides fuel for the port engine
while the starboard fuel tank provides fuel for the starboard engine and the generator.

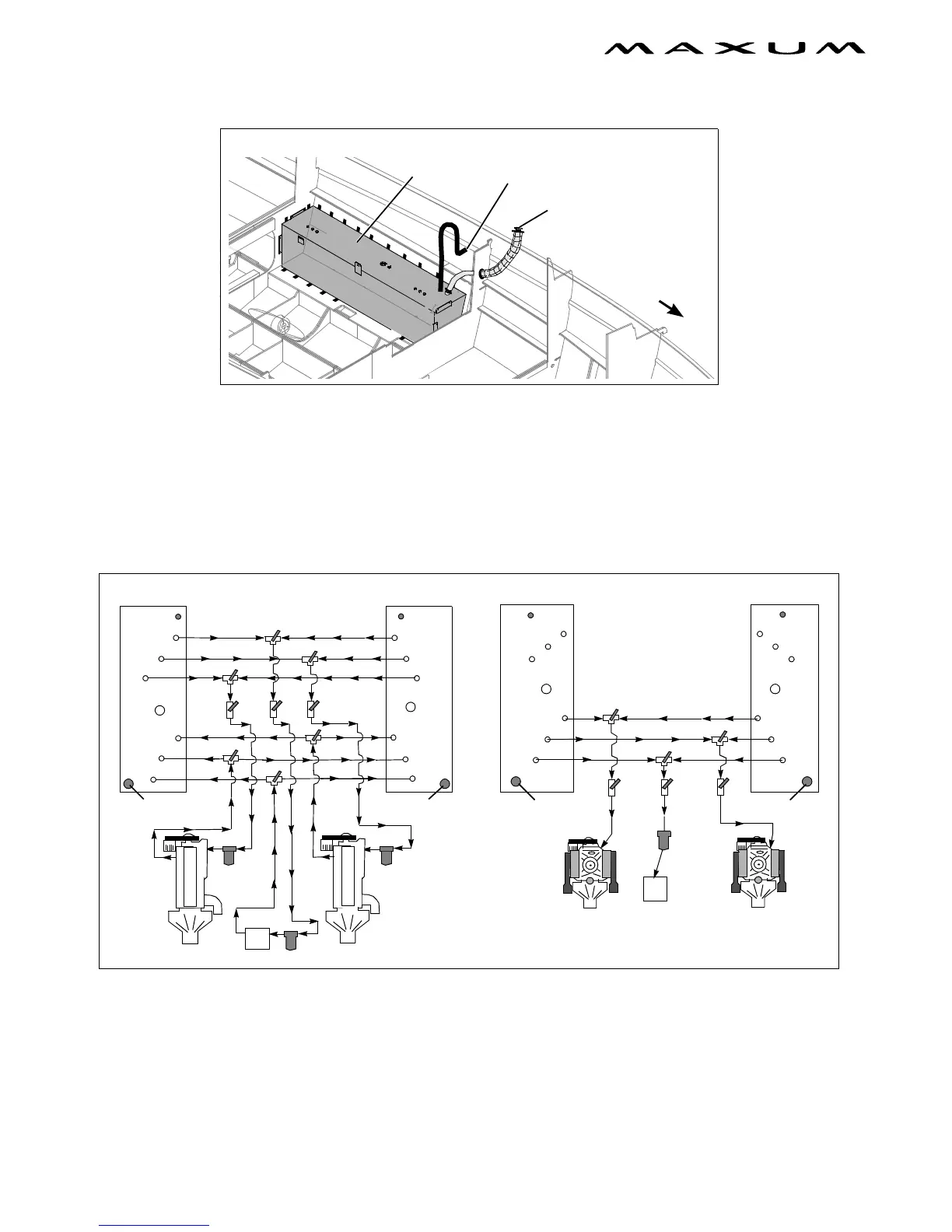

Fuel System Routing (With Fuel Management Board)
FUEL TANK FILL
FUEL TANK VENT
FITTING ON DECK
FWD.
FUEL TANK
PORT FUEL TANK ROUTING SHOWN - STARBOARD SIDE IS TYPICAL
STBD. PICKUP
PORT PICKUP
GEN. PICKUP
SENDER SENDER
FUEL FILL FUEL FILL
VENT
VENT
PORT PICKUP
STBD. PICKUP
GEN. PICKUP
PORT FUEL TANK
STBD. FUEL TANK
GENERATOR (OPTION)
GAS ENGINES
STARBOARD ENGINE
PORT ENGINE
FUEL
FILTER
PORT PICKUP
STBD. PICKUP
STBD. PICKUP
PORT PICKUP
GEN. PICKUP
GEN. PICKUP
SENDER
SENDER
FUEL FILL FUEL FILL
VENT
VENT
STBD. RETURN
STBD. RETURN
PORT RETURN
PORT RETURN
GEN. RETURN
GEN. RETURN
PORT ENGINE STARBOARD ENGINE
FUEL
FILTER
DIESEL ENGINES
FUEL
FILTER
FUEL
FILTER
STBD. FUEL TANK
PORT FUEL TANK
GENERATOR
