26 Chapter 2: Components/Systems
4100 SCB Owner’s Manual Supplement
Air Conditioning & Heating (Option)
Your yacht may be equipped with an optional air conditioning & heating system. For complete operating instructions,
please read the air conditioner/heater manual provided in your yacht’s owner’s packet.
• Both heating and cooling are controlled from the same panel.
• Before operating the air conditioning/heating unit, make sure the breakers on the AC main distribution panel are
activated.
• Make sure the air conditioning system’s seacock is OPEN before turning on the air conditioning/heating system.

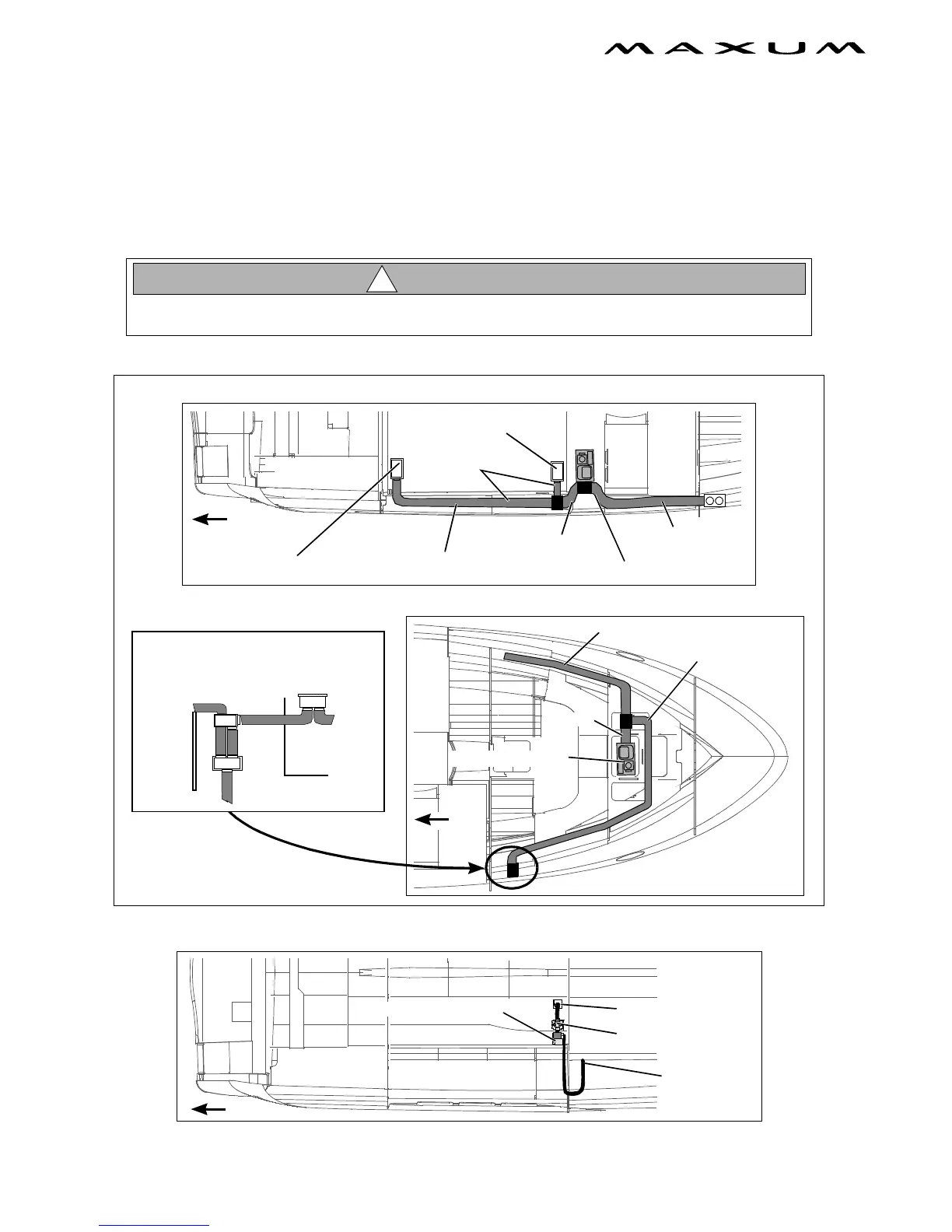

Air Conditioning Duct Routing
Air Conditioning Water Pickup Routing
CAUTION!
SYSTEM DAMAGE HAZARD! The air conditioning system’s raw water intake seacock must
remain OPEN anytime the air conditioner/heater is in use.
!
AIR DUCT ROUTED
ON TOP OF LINER SHELF
4" DUCT
TO PUMP
UNIT (LOCATED IN
AFT SETTEE)
5" DUCT
4" DUCT
AIR CONDITION
UNIT (LOCATED IN
FORWARD SETTEE)
AIR CONDITION
AFT
3" DUCT TO HEAD
6" DUCT
7" DUCT
AIR CONDITION UNIT
AFT
AFT DUCT ROUTING
FORWARD DUCT ROUTING
LINER
MID
BERTH
V-BERTH
SOFFIT
GALLEY
CAP KIT
SALON
SPLICE
DETAILED VIEW OF FORWARD & AFT
AIR CONDITIONING CONVERSION BOX
PUMP
AFT
FROM PUMP
TO AFT AIR
CONDITION UNIT
SEACOCK
RAW WATER STRAINER
