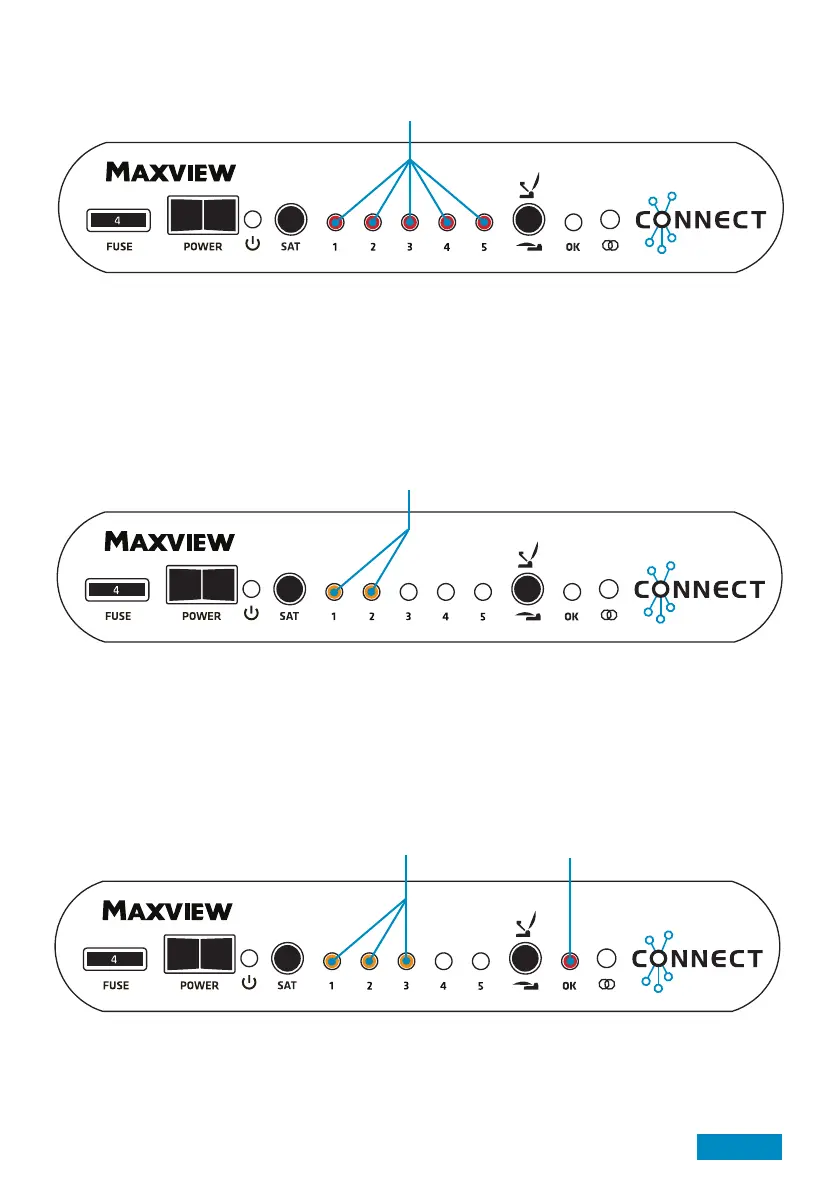

D. Ignition mode parked. When system parked during ignition mode all the SAT LED’s stop flashing green
and ALL 5 LED’s go solid RED.
During Ignition mode ALL control buttons have no function (locked).
Once ‘Ignition off’ last satellite found LED start to flash and ready to search (keys active again).
All solid red
E. Azimuth Error. If rotation motor stops the above LED sequence will occur, please contact Customer Services.
F. Elevation Error. If elevation motor stops the above LED sequence will occur, please contact Customer Services.
Solid orange
Solid orange Flashes red
