A. Antenna
The Antenna is mounted to the roof. It uses electric motors to scan for satellite signals.
The single variant has 2 cable connections; 1 for controlling the motors and 1 satellite signal
cable from the single LNB.
The twin variant has 3 cable connections; 1 for controlling the motors and 2 satellite signal
cables from the twin LNB.
The quad variant has 5 cable connections; 1 for controlling the motors and 4 satellite signal
cables from the single LNB.
B. Control Box
The Control Box requires wired connections for power, antenna control and satellite signal.
It can be mounted discretely in a cupboard and can be fixed vertically and horizontally.
This can then be controlled directly from the Control Box or using the Connect App

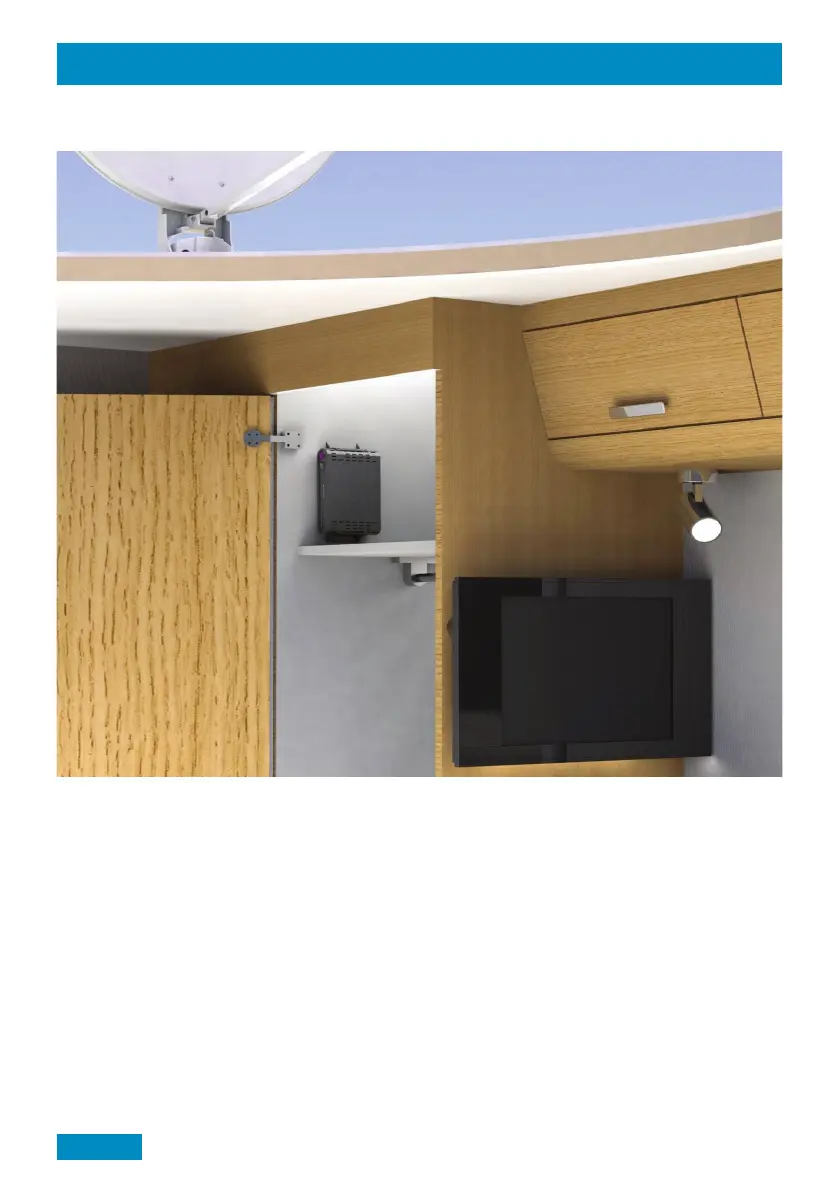

Application Example
A
B
INSTALLATION
Page 4
