24 RC12 Windlass

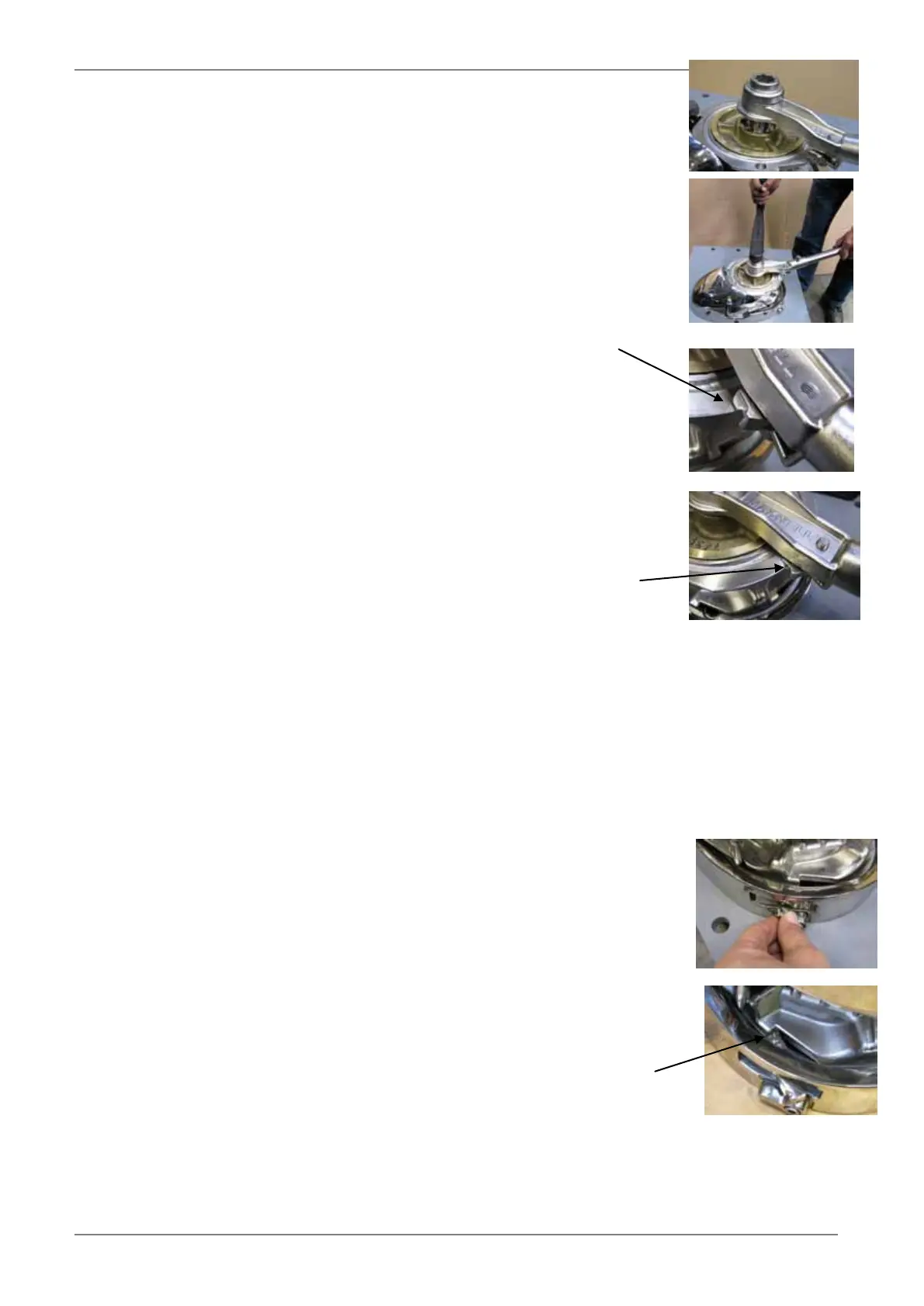

4. Insert emergency handle on shaft …
5. .…and using clutch handle tighten emergency handle on shaft.
6. Make sure pawl is not sandwiched on top of chainwheel
7.
Ensure that emergency handle pawl is engaged with upper
chainwheel
.
8.
Rotate clockwise to pull in the line.
Ensure that self locking mechanism is engaged with bottom chainwheel before you remove
handle.
Raising the Anchor Manually with Capstan Windlass
1 Tie off the rope/chain so that it does not pay out when the clutch
is released using chainstopper or small pawl on deckplate turning
it anticlockwise.
2 Pawl should be engaged with chainwheel preventing chainwheel
from freefalling.
3 Insert the clutch handle into the clutch nut and turn anticlockwise
to loosen the clutch.
Using 5mm Allen key remove cap, washer, screw, clutch nut, washer, key and capstan.
