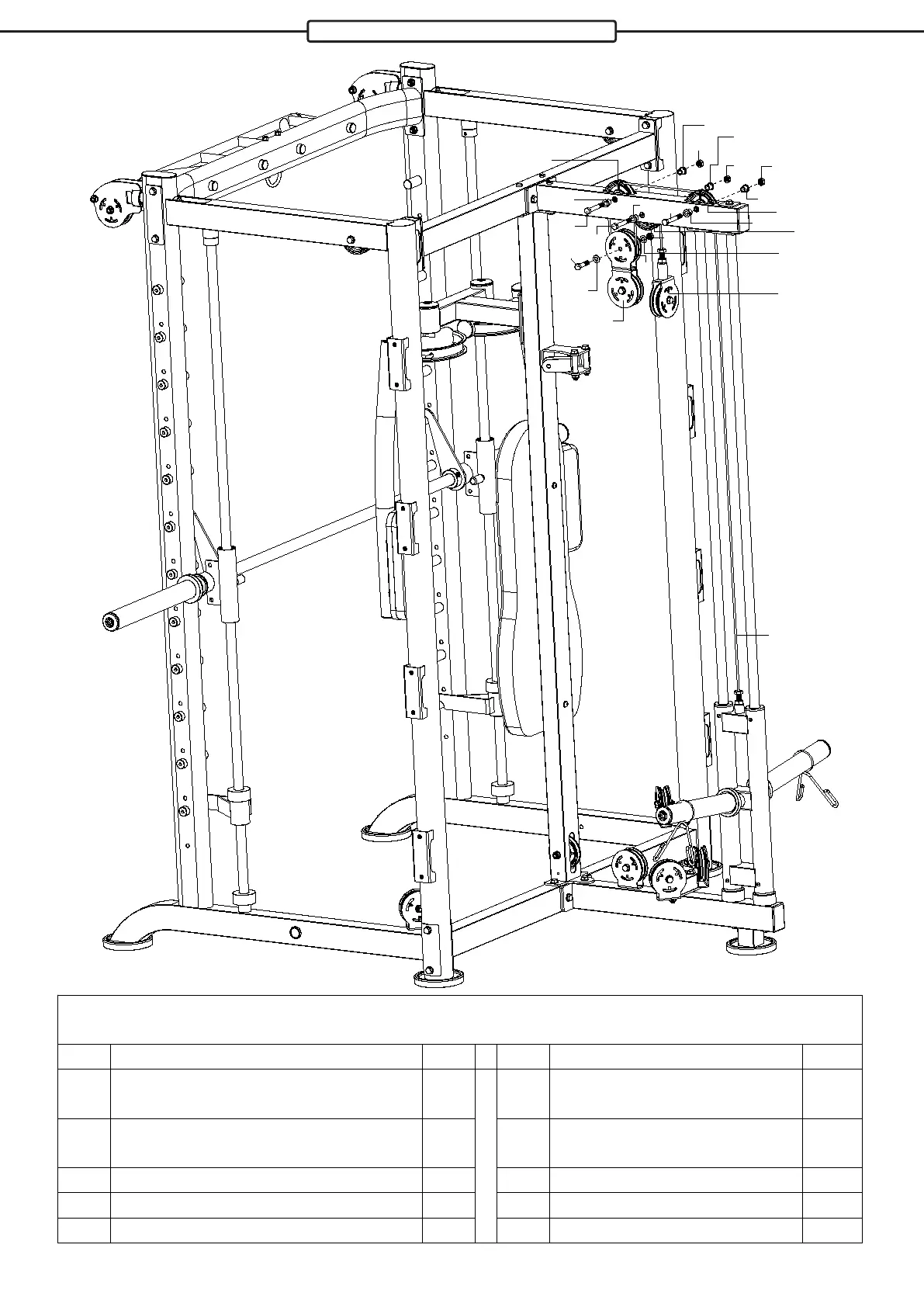

Maxxus Multipress 9.1 - Step 18: Pulley and Wire Rope Connections

21
Assembly - Multipress
Step 18
61
61
61
61
37
37
37
35
35
35
37
37
37
54
54
54
35
63
63
52
23
65
30
Spare parts of installation step
No. Product name Qty. No. Product name Qty.
23 Pulley assembly 1 54
External hexagon screw：
M10*70
3
30 Barbell fixed wire rope 1 61
External hexagon anti-proof
screw：M10
4
35
Pulley
4
63
Flat washer ：
φ10
2
37 Powder metallurgy shaft sleeve 6 65
Rear movable Pulley
1
52
External hexagon screw：M10*45
1
