Maxxus Multipress 9.1 User Manual

25
Assembly - Multipress
Step 22
1-1
1-2
1-3 1-2
1-4
2-1
2-2
2-3 2-2
2-4
A
A-2
A-3
A-4
A-5
A-6
A-7
A-8
A-9
33
48
48
47
47
51
51
61
61
A
A-1

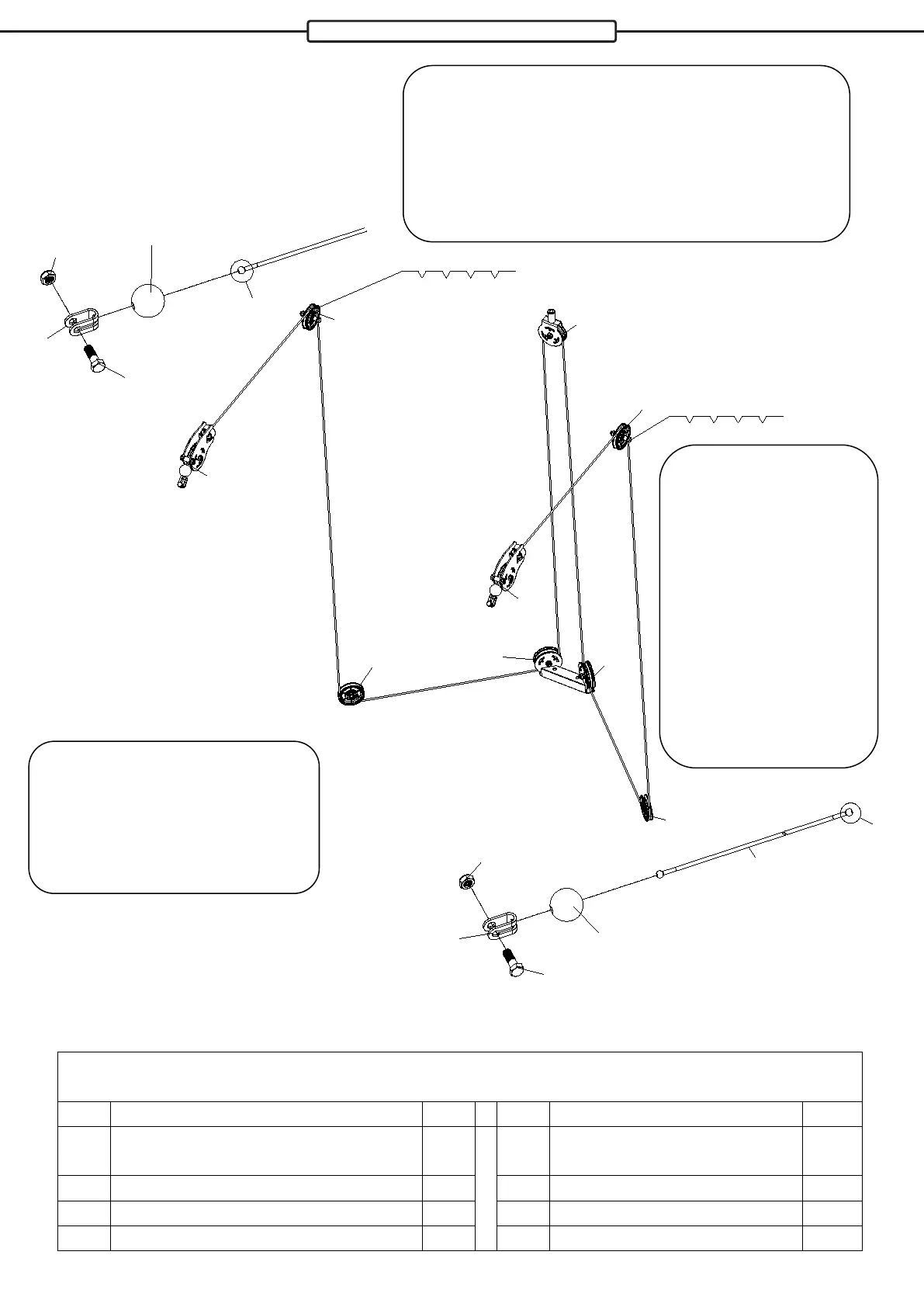

As shown in the picture, pull the A end
of Flyer wire rope（No.33） out of
from A-1, A-2, A-3, A-4, A-5, A-6, A-7,
A-8 in order and finally from A-9 of
pulley .
Note: 2-1, 2-2, 2-3 and 2-4 are preinstalled on Main frame
assembly-L（No.2）.
First，unlock spare parts 2-1, 2-2, 2-3 and 2-4 as shown in
the figure with wrench.
Then ，install them on Flyer wire rope（No.33）and lock
them well with wrench .
Note:1-1, 1-2, 1-3 and 1-4
are preinstalled on Main
frame assembly-R （No.1）.
First，unlock spare parts
1-1, 1-2, 1-3 and 1-4 as
shown in the figure with
wrench.
Then ， install them on
Flyer wire rope（No.33）
and lock them well with
wrench .
Spare parts of installation step
No. Product name Qty. No. Product name Qty.
33 Flyer wire rope 1 61
External hexagon anti-proof
screw：M10
2
47 Wire rope fixing U-shaped support 2
48 Wire rope collision ball 2
51
External hexagon screw：M10*30
2
