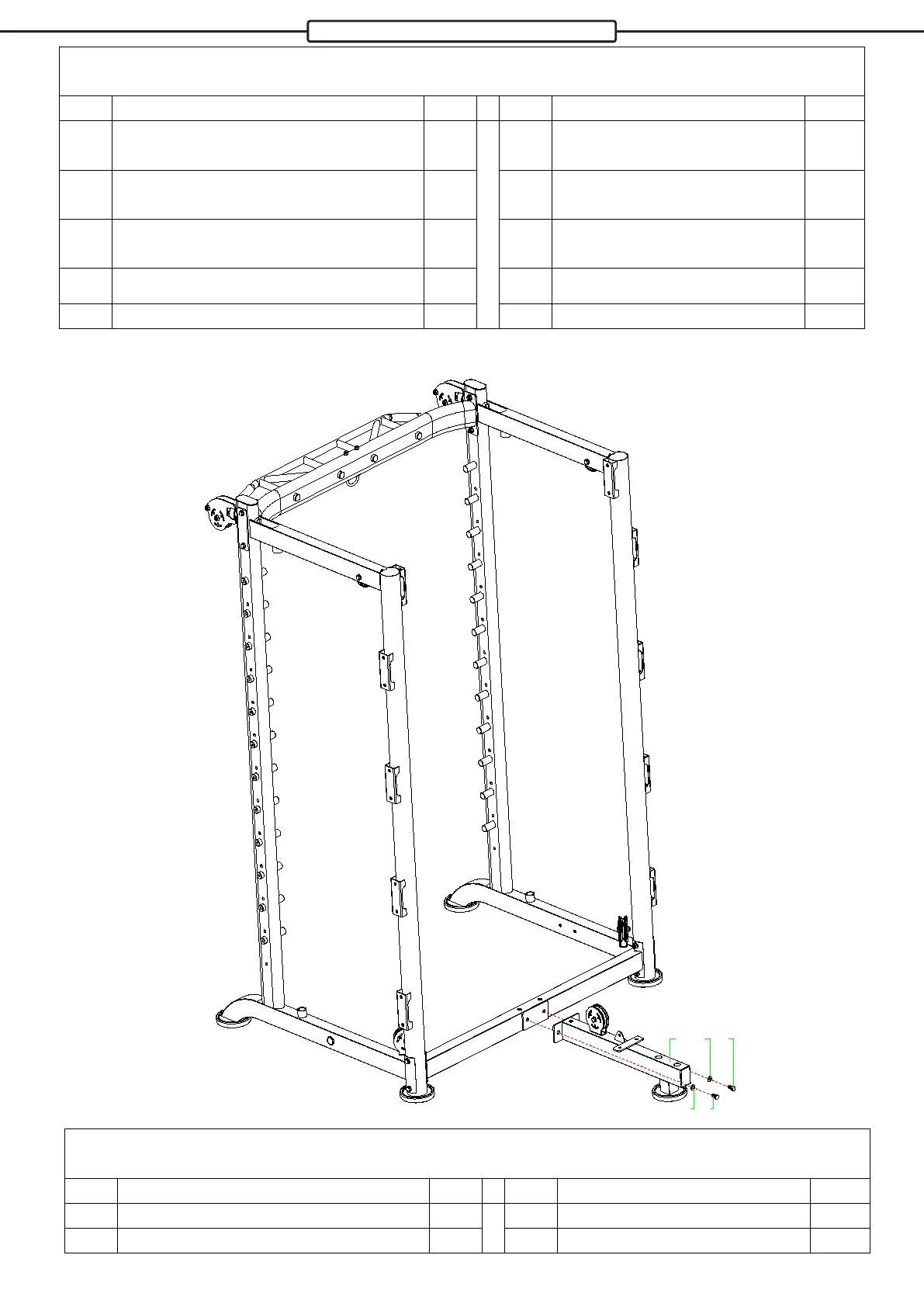

Assembly - Multipress
Step 2
06 63
63 50
50
Spare parts of installation step
No. Product name Qty. No. Product name Qty.
01 Main frame assembly-R 1 55
External hexagon screw：
M10*75
4
02 Main frame assembly-L 1 57
External hexagon screw：
M10*100
4
03 Rear base connection assembly 1 61
External hexagon anti-proof
screw：M10
8
04 Pull-up assembly 1 63
Flat washer ：φ10
8
05 Pull-up joint reinforced piece 2
64
Arced washer ：
φ10
8
Spare parts of installation step
No. Product name Qty. No. Product name Qty.
06 Rear foot tube assembly 1 63
Flat washer ：φ10
2
50
External hexagon screw：M10*20
2
