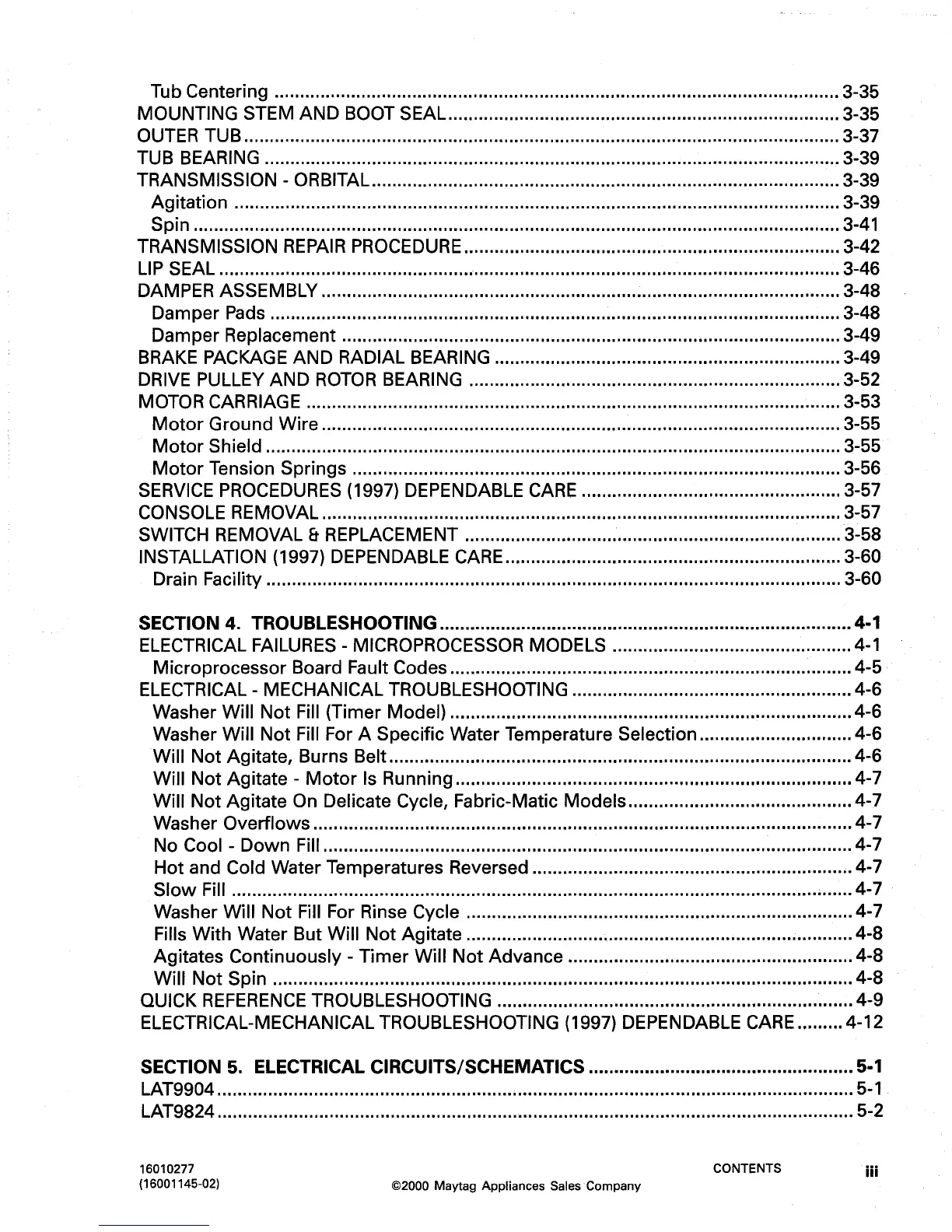

Maytag LAT8014 - Page 5

Tub Centering 3-35
MOUNTING STEM AND BOOT SEAL 3-35
OUTER TUB 3-37
TUB BEARING 3-39
TRANSMISSION - ORBITAL 3-39
Agitation 3-39
Spin
3-41
TRANSMISSION REPAIR PROCEDURE 3-42
LIP SEAL 3-46
DAMPER ASSEMBLY 3-48
Damper Pads 3-48
Damper Replacement 3-49
BRAKE PACKAGE AND RADIAL BEARING 3-49
DRIVE PULLEY AND ROTOR BEARING 3-52
MOTOR CARRIAGE 3-53
Motor Ground Wire 3-55
Motor Shield 3-55
Motor Tension Springs 3-56
SERVICE PROCEDURES (1997) DEPENDABLE CARE 3-57
CONSOLE REMOVAL 3-57
SWITCH REMOVAL & REPLACEMENT 3-58
INSTALLATION (1997) DEPENDABLE
CARE 3-60
Drain Facility 3-60
SECTION 4. TROUBLESHOOTING 4-'
ELECTRICAL FAILURES - MICROPROCESSOR MODELS 4-1
Microprocessor Board Fault Codes 4-5
ELECTRICAL - MECHANICAL TROUBLESHOOTING 4-6
Washer Will
Not Fill (Timer Model) 4-6
Washer Will
Not Fill For A Specific Water Temperature Selection 4-6
Will
Not Agitate, Burns Belt 4-6
Will
Not Agitate - Motor Is Running , 4-7
Will
Not Agitate On Delicate Cycle, Fabric-Matic Models 4-7
Washer Overflows 4-7
No Cool - Down Fill 4-7
Hot and Cold Water Temperatures Reversed 4-7
Slow Fill 4-7
Washer Will
Not Fill For Rinse Cycle 4-7
Fills With Water But Will
Not Agitate 4-8
Agitates Continuously -
Timer Will Not Advance 4-8
Will
Not Spin 4-8
QUICK
REFERENCE TROUBLESHOOTING 4-9
ELECTRICAL-MECHANICAL TROUBLESHOOTING (1997) DEPENDABLE
CARE 4-12
SECTION 5. ELECTRICAL CIRCUITS/SCHEMATICS 5-'
LAT9904 ..........................................................•.................................................................. 5-1
LAT9824 5-2
16010277
(16001145-02)
©2000 Maytag Appliances Sales Company
CONTENTS
iii
