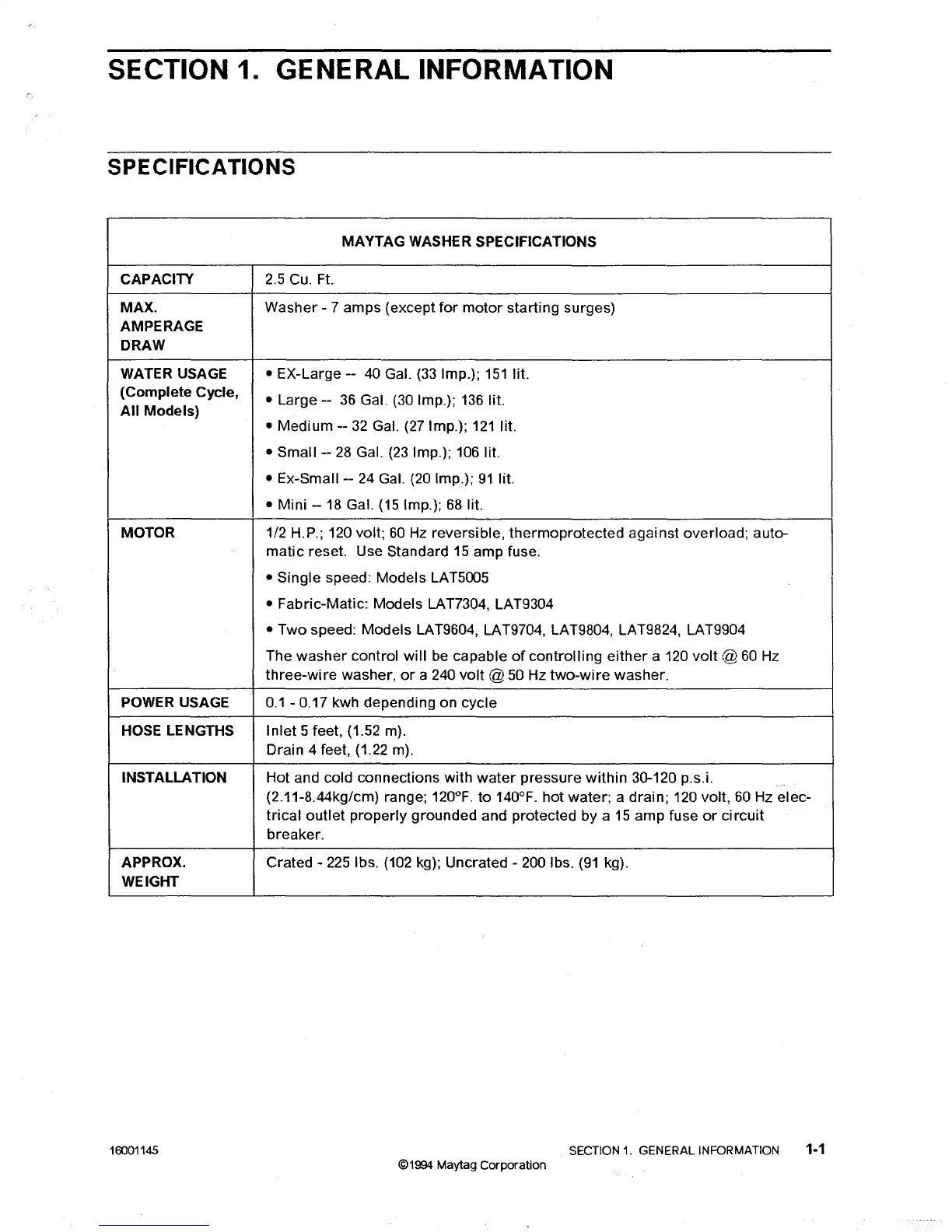

SECTION 1. GENERAL INFORMATION
SPECIFICATIONS
MAYTAG WASHER SPECIFICATIONS
CAPACITY
2.5
Cu.
Ft.
MAX. Washer - 7 amps (except
for
motor
starting surges)
AMPERAGE
DRAW
WATER USAGE
• EX-Large -- 40 Gal.
(33
Imp.);
151
lit.
(Complete Cycle,
• Large --
36
Gal. (30 Imp.);
136
lit.
All Models)
• Medium --
32
Gal.
(27
Imp.);
121
lit.
• Small
--
28
Gal.
(23
Imp.);
106
lit.
•
Ex-Small--
24
Gal. (20 Imp.);
91
lit.
• Mini -
18
Gal.
(15
Imp.);
68
lit.
MOTOR
1/2 H.P.; 120 volt;
60
Hz
reversible, thermoprotected against overload; auto-
matic
reset. Use Standard
15
amp fuse.
• Single speed: Models LAT5005
• Fabric-Matic: Models LAT7304, LAT9304
• Two speed: Models LAT9604, LAT9704, LAT9804, LAT9824, LAT9904
The
washer
control will
be
capable
of
controlling
either
a
120
volt
@
60
Hz
three-wire
washer,
or
a 240
volt
@
50
Hz
two-wire
washer.
POWER USAGE
0.1
- 0.17 kwh depending on cycle
HOSE
LE
NGTHS Inlet 5 feet, (1.52 m).
Drain 4 feet, (1.22 m).
INSTALLATION Hot and cold connections with
water
pressure
within
30-120 p.s.i.
(2.11-8.44kg/cm) range; 120°F.
to
140°F. hot water; a drain; 120 volt,
60
Hz elec-
trical
outlet
properly grounded and protected by a
15
amp fuse
or
ci
rcuit
breaker.
APPROX.
Crated -
225
Ibs.
(102
kg); Uncrated - 200 Ibs.
(91
kg).
WEIGHT
16001145
©1994 Maytag Corporation
SECTION 1. GENERAL INFORMATION
1-1
