Maytag LAT8014 - Water Injector Assembly; Water Valve Types

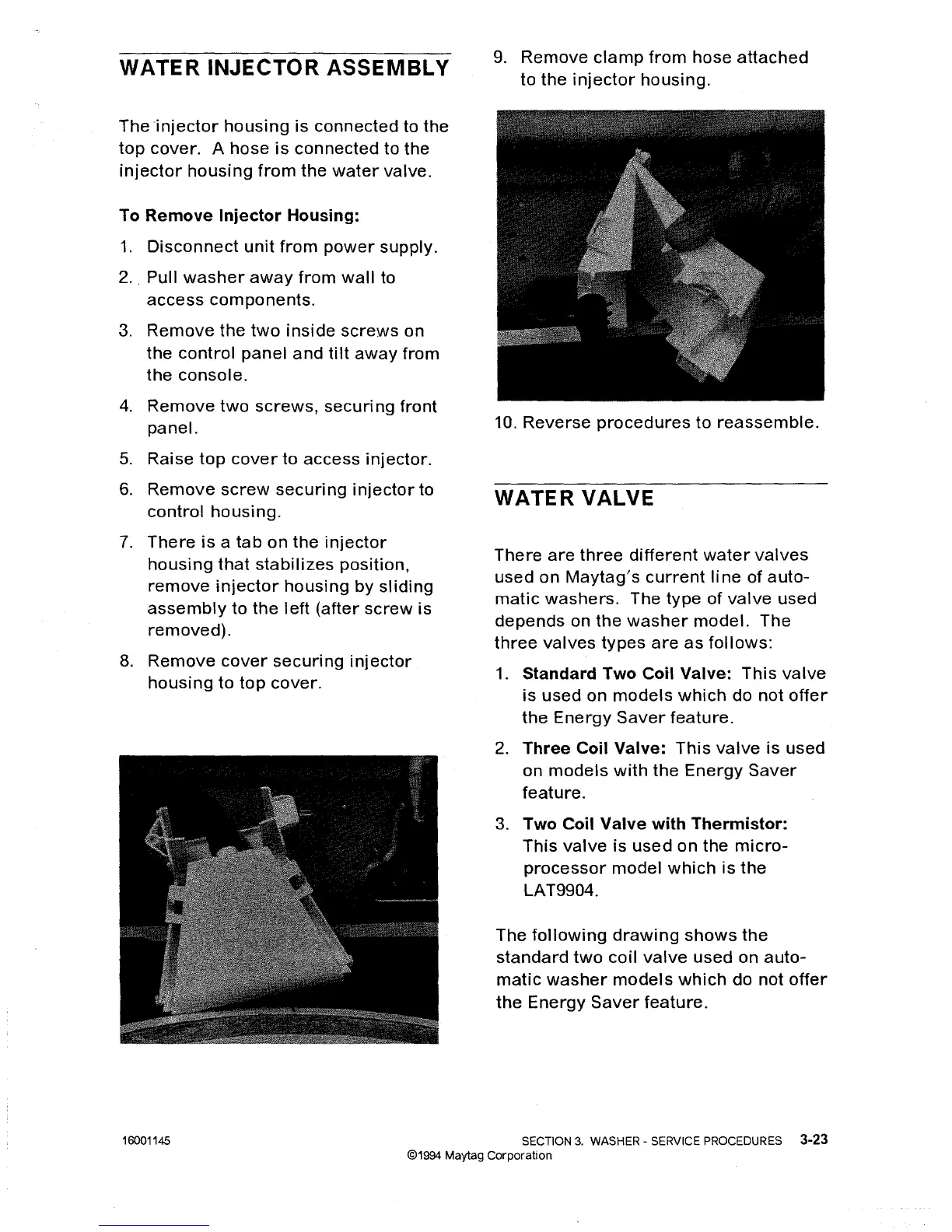

WATER INJECTOR ASSEMBLY
The injector housing is connected to the
top cover. A hose is connected to the
injector housing from the water valve.
To Remove Injector Housing:
1. Disconnect unit from power supply.
2
.. Pull washer away from wall to
access components.
3. Remove the two inside screws on
the control panel and tilt away from
the console.
4. Remove two screws, securing front
panel.
5. Raise top cover to access injector.
6. Remove screw securing injector to
control housing.
7. There is a tab on the injector
housing that stabilizes position,
remove injector housing by sliding
assembly to the left (after screw is
removed).
8. Remove cover securing injector
housing to top cover.
9. Remove clamp from hose attached
to the injector housing.
10. Reverse procedures to reassemble.
WATER VALVE
There are three different water valves
used on May tag's current line of auto-
matic washers. The type of valve used
depends on the washer model. The
three valves types are as follows:
1. Standard Two Coil Valve: This valve
is used on models which do not offer
the Energy Saver feature.
2. Three Coil Valve: This valve is used
on models with the Energy Saver
feature.
3. Two Coil Valve with Thermistor:
This valve is used on the micro-
processor model which is the
LAT9904.
The
following drawing shows the
standard two coil valve used on auto-
matic washer models which do not offer
the Energy Saver feature.
16001145
SECTION
3. WASHER - SERVICE PROCEDURES 3-23
©1994 Maytag Corporation
