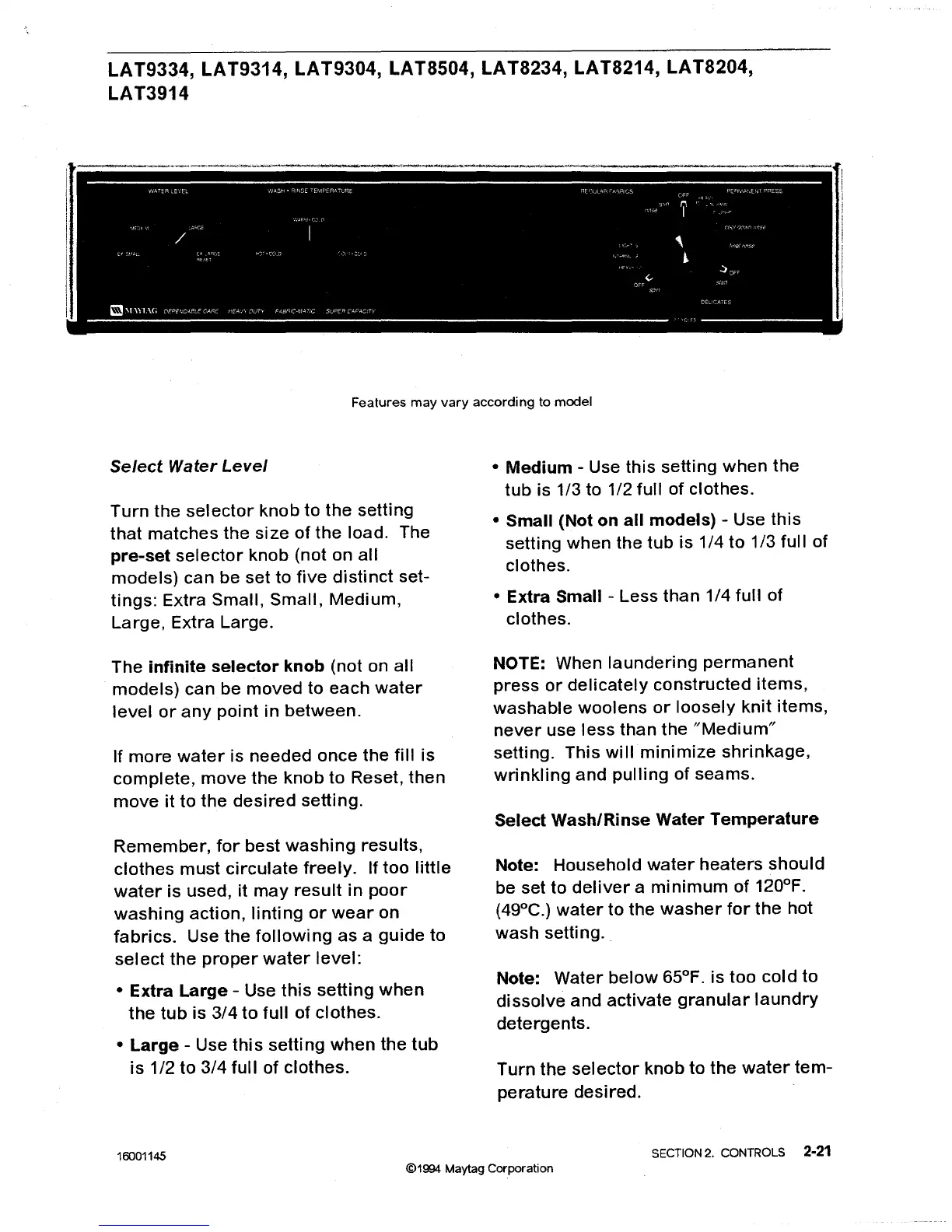

Maytag LAT8014 - LAT9334, LAT9314, LAT9304, LAT8504, LAT8234, LAT8214, LAT8204, LAT3914 Controls; Select Water Level

LAT9334, LAT9314, LAT9304, LAT8504, LAT8234, LAT8214, LAT8204,
LAT3914
Features may vary according to model
Select Water Level
Turn the selector knob to the setting
that matches the size of the load. The
pre-set selector knob (not on all
models) can be set to five distinct set-
tings: Extra Small, Small, Medium,
Large, Extra Large.
The
infinite selector knob (not on all
models) can be moved to each water
level or any point in between.
If more water is needed once the fill is
complete, move the knob to Reset, then
move it to the desired setting.
Remember, for best washing results,
clothes must circulate freely. If too little
water is used, it may result in poor
washing action, Iinting or wear on
fabrics. Use the following as a guide to
select the proper water level:
• Extra Large - Use this setting when
the tub is 3/4 to full of clothes.
• Large - Use this setting when the tub
is 1/2 to 3/4 full of clothes.
16001145
• Medium - Use this setting when the
tub is 1/3 to 1/2 full of clothes.
•
Small (Not on all models) - Use this
setting when the tub is 1/4 to 1/3 full of
clothes.
•
Extra Small - Less than 1/4 full of
clothes.
NOTE: When
laundering permanent
press or delicately constructed items,
washable woolens or loosely knit items,
never use less than the "Medium"
setting. This will minimize shrinkage,
wrinkling and pulling of seams.
Select Wash/Rinse Water Temperature
Note: Household water heaters should
be set to deliver a minimum of 120°F.
(49°C.)
water to the washer for the hot
wash setting ..
Note: Water below 65°F. is too cold to
dissolve and activate granular laundry
detergents.
Turn the selector knob to the water tem-
perature desired.
SECTION 2. CONTROLS 2·21
©1994 Maytag Corporation
