DRAIN SYSTEM

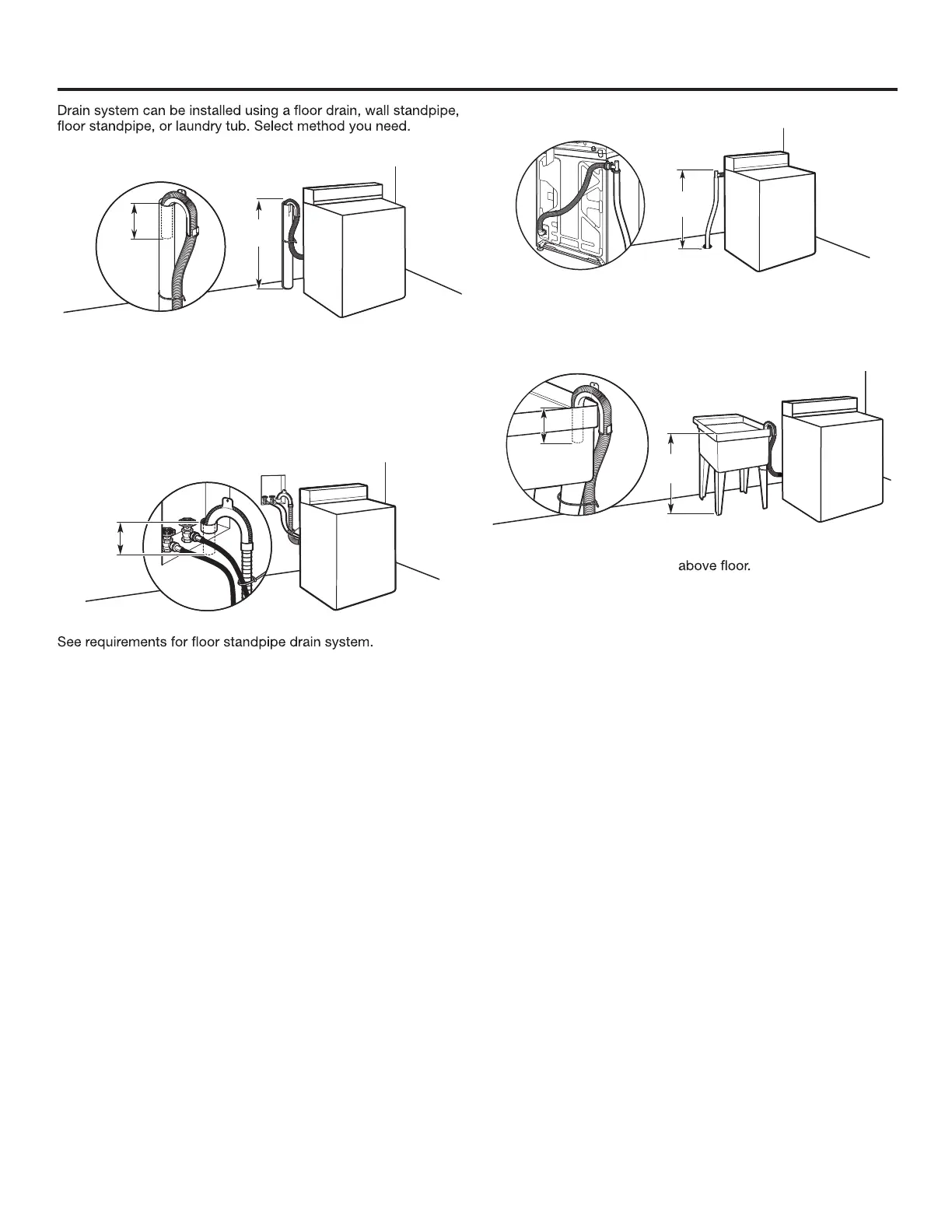

Floor standpipe drain system
Floor drain system requires a Siphon Break Kit
(Part Number 285320). Minimum siphon break: 710 mm (28")
from bottom of washer. Additional hoses may be needed.
Laundry tub drain system
203 mm
(8")
990 mm
(39")
990 mm
(39")
203 mm
(8")
Minimum diameter for a standpipe drain: 51 mm (2"). Minimum
carry-away capacity: 38 L (10 gallon) per minute. Top of
standpipe must be at least 990 mm (39") high; install no higher
than
2.44 m (96") from bottom of washer.
Wall standpipe drain system
710 mm
(28")
Floor drain system
203 mm
(8")
Minimum capacity: 76 L (20 gallon). The top of the laundry tub
must be at least 990 mm (39")
