Maytag W10393006 User Manual

PAGE 24
FOR SERVICE TECHNICIAN’S USE ONLY
DO NOT REMOVE OR DESTROY
USER INTERFACE
CYCLE
CONTROL
UNIT
HEATER RELAY
WATER VAL V E
Voltage References:
VDD - +5V DC
VSS - GND

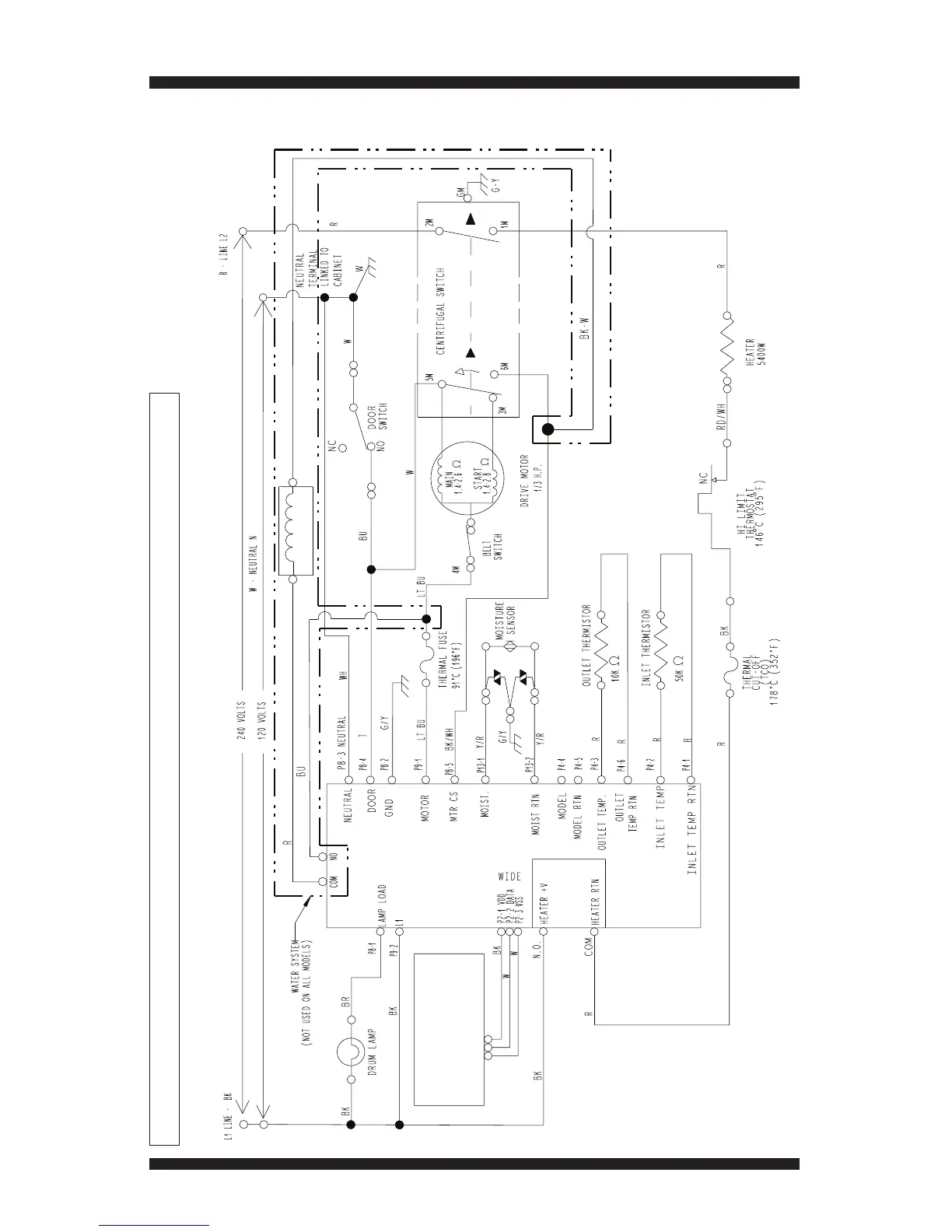

MAYTAG ELECTRIC DRYER WIRING DIAGRAM (Figure 18)
IMPORTANT: Electrostatic discharge may cause damage to machine control electronics. See page 1 for ESD information.

Maytag W10393006 Specifications

General

Brand	Maytag
Model	W10393006
Category	Dryer
Language	English
