PAGE 25
FOR SERVICE TECHNICIAN’S USE ONLY
DO NOT REMOVE OR DESTROY
IMPORTANT: Electrostatic discharge may cause damage to machine control electronics. See page 1 for ESD information.
USER INTERFACE
CYCLE
CONTROL
UNIT
HEATER RELAY
WATER VAL VE

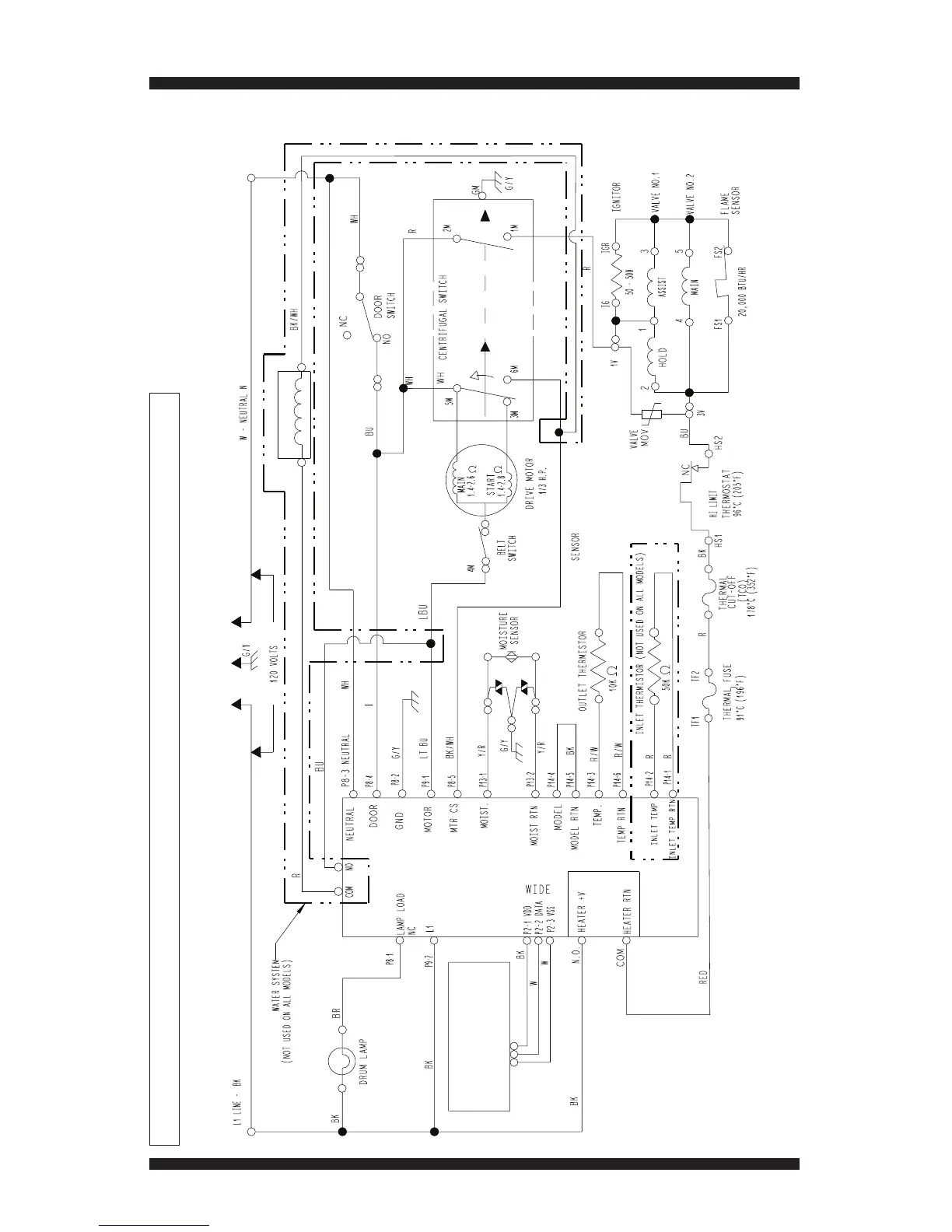

MAYTAG GAS DRYER WIRING DIAGRAM (Figure 19)
Voltage References:
VDD - +5V DC
VSS - GND
