99996114-LES

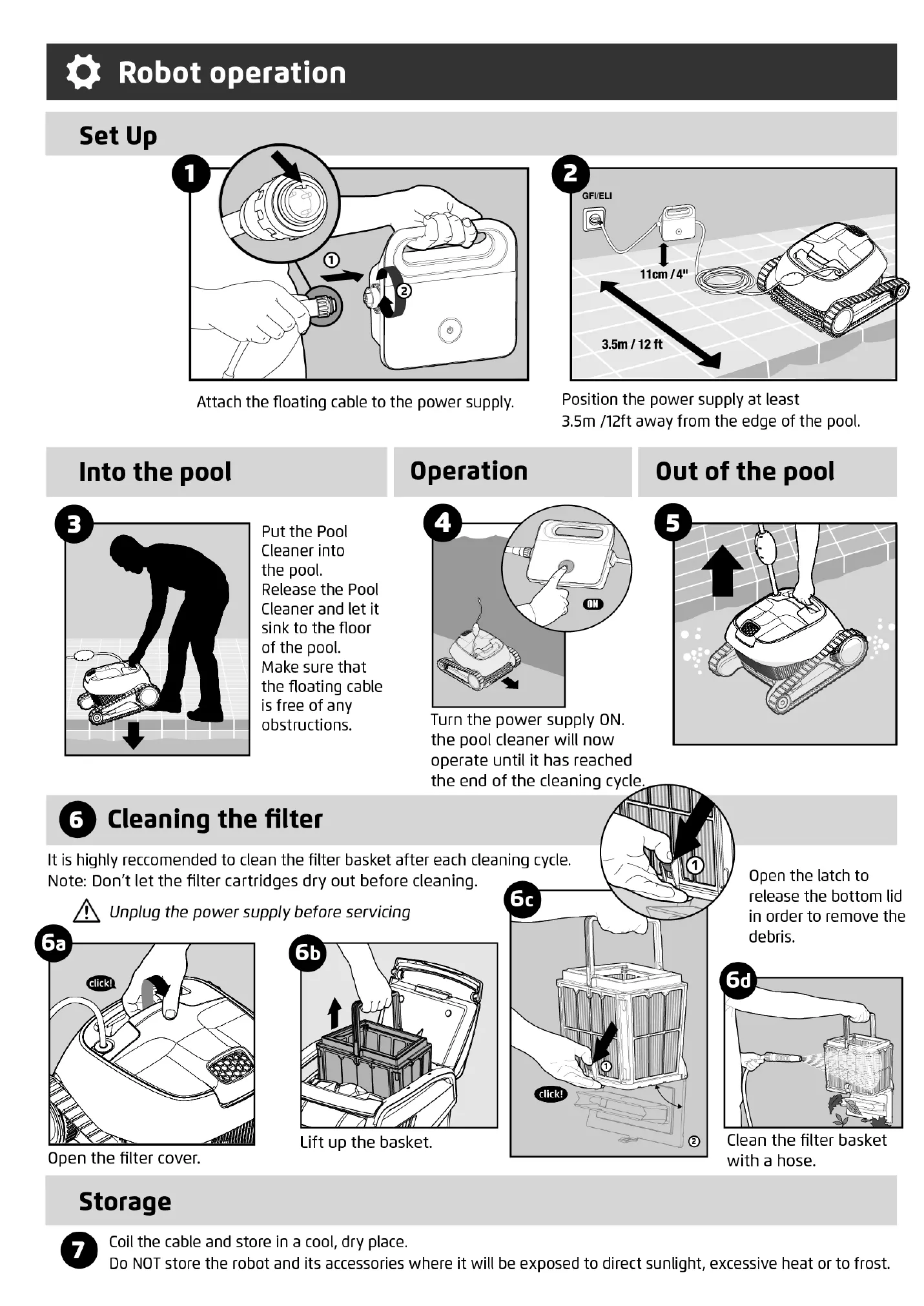

O Robot operation
Set Up
C)
2
Attach the floating cable to the power supply.
@ Maintenance
Periodic filter cleaning
Dismantle the 2 ultra-fine filter panels of the outer basket according to the following steps:
Into the pool
Operation
1 lcm/4"
3.5m/ 12 ft
Position the power supply at least
3.5m /12ft away from the edge of the pool.
Out of the pool
Put the Pool
Cleaner into
the pool.
Release the Pool
Cleaner and let it
sink to the floor
of the pool.
Make sure that
the floating cable
is free of any
obstructions.
O Cleaning thefilter
Turn the power supply ON.
the pool cleaner will now
operate until it has reached
the end of the cleaning cycle.
Dismantle the 2 panels using your thumbs.
click!
click!
Assemble the filter panels.
Cleaning the impeller
If you notice debris trapped in the impeller:
A
Unplug the power supply before servicing
Clean the debris trapped in the impeller opening,
according to the following steps:
If the debris is not reachable
follow the next steps.
Using a short screwdrive
open the 2 screws.
For a detailed manual (including videos):
Clean the filter panels with a hose.
Insert the clean filter basket and close
the filter cover.
It is highly reccomended to clean the filter basket after each cleaning cycle.
Note: Don't let the filter cartridges dry out before cleaning.
A
Unplug the power supply before servicing
o
rlirk!
Open the latch to
release the bottom lid
in order to remove the
debris.
Clean the filter basket
with a hose.
O
Lift up the basket.
open the filter cover.
Storage
Pull the impeller cover backwards to
release it. Clean the debris trapped
around the impeller. Assemble the
impeller cover.
Dolp in
maytrnnics
by
Coil the cable and store in a cool, dry place.
Do NOTstore the robot and its accessories where it will be exposed to direct sunlight, excessive heat or to frost.
