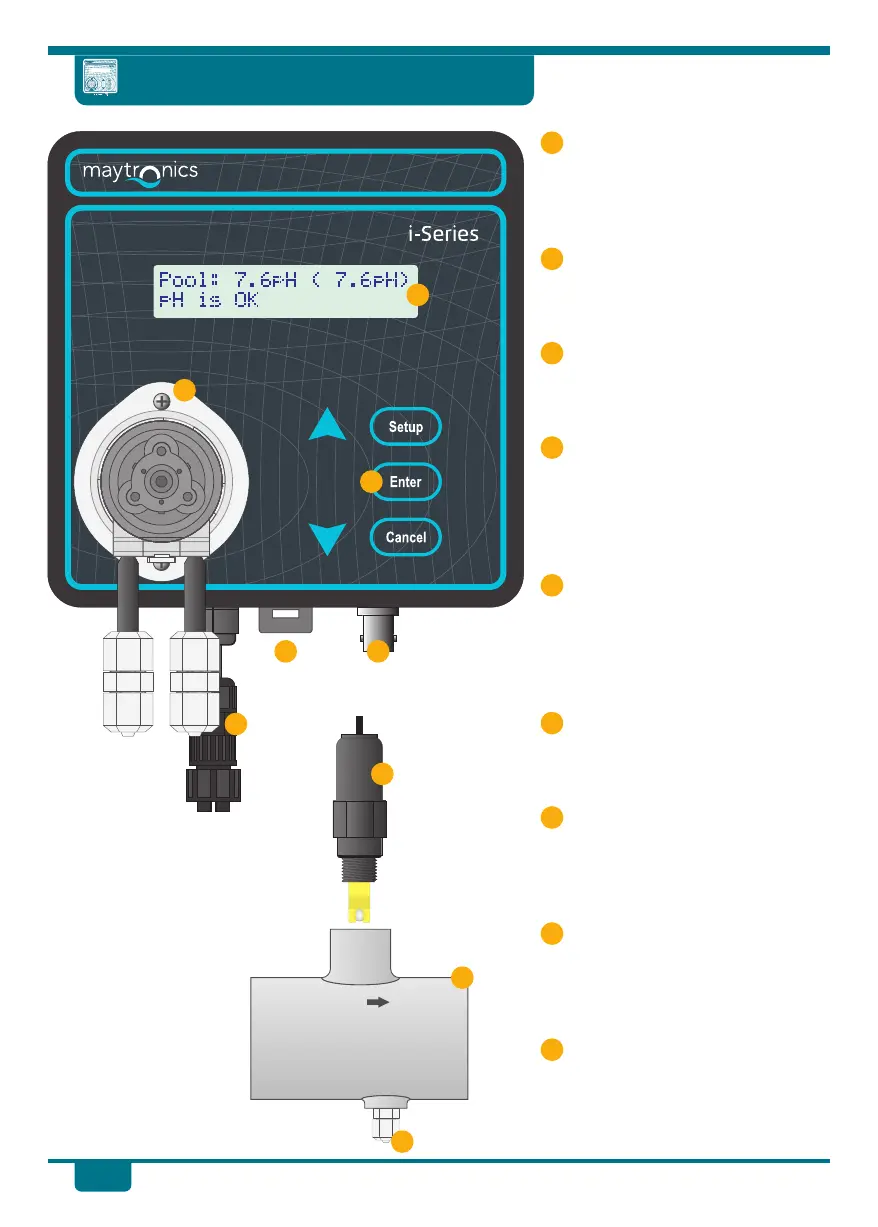

Getting to know your pH Drive
4
KEYPAD
Used for setup and maintenance of
your pH Drive.
2
DOSING PUMP
High quality, low maintenance
peristaltic dosing pump.
3
POWER CONNECTOR
IP65 Waterproof connector plugs
into May tronic s Ozone Swim
systems that are equipped with the
matching outlet.
4
MOUNTING CLIP
Pull the clip downwards when
mounting the pH Drive to the
mounting rail, or to unclip when
removing.
5
pH SENSOR SOCKET
Connect the pH Sensor to the BNC
pH Sensor socket.
6
pH SENSOR
pH TEE
NON-RETURN VALVE
Commercial quality pH Sensor
screws into pH Tee to firm hand
tightness.
A single pH Tee for installing the pH
Sensor and non-return injection
valve.
High quality polypropylene non-
return injection valve.
7
8
9
DISPLAY
User-friendly plain text menu and
help system.
1
5 6
4
1
2
3
7
8
9
