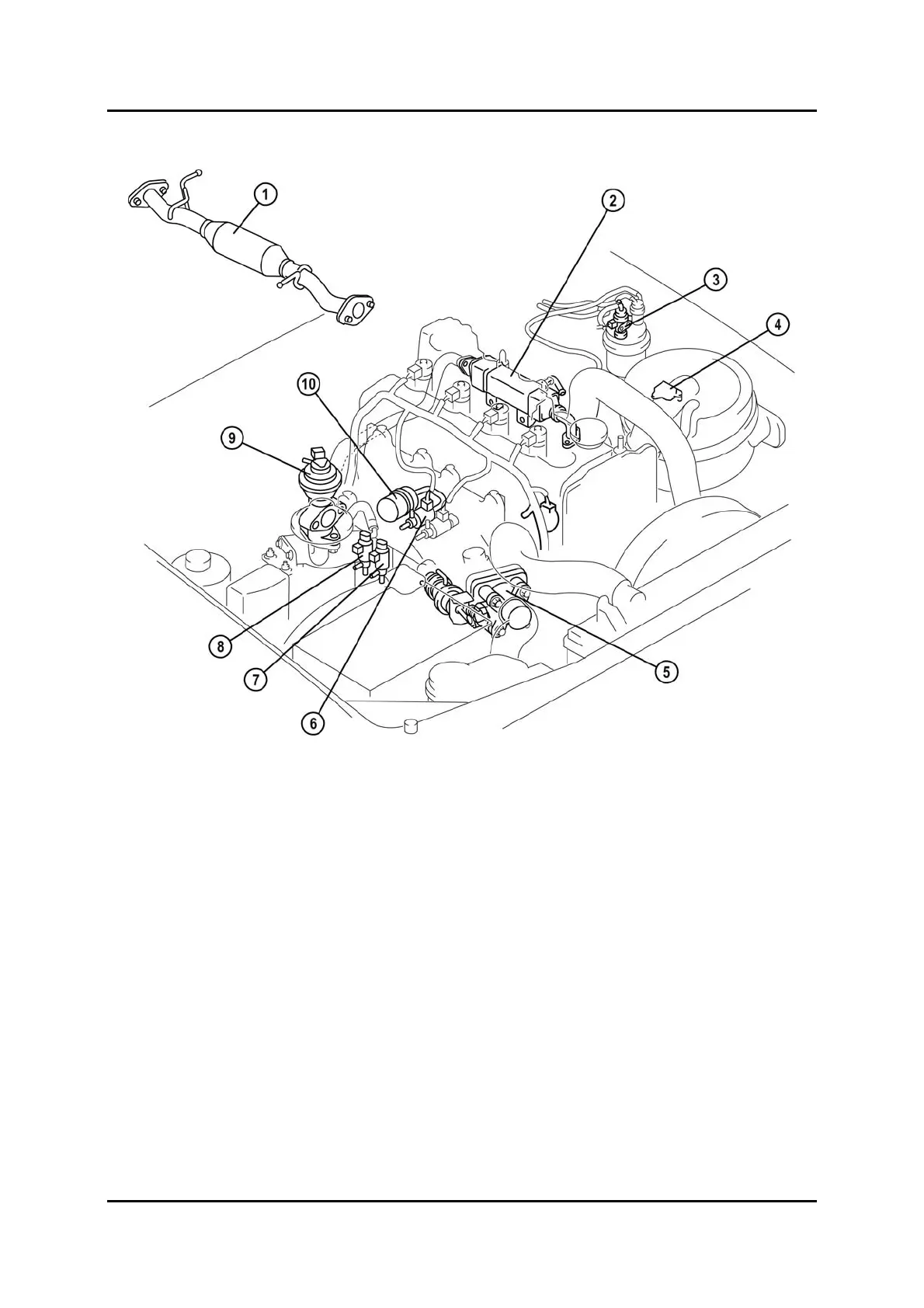

WL-C Engine Emission System
BT-50_01033
1 Oxidation catalytic converter 6 EGR control solenoid valve
2 EGR cooler 7 ISV solenoid valve (full)
3 EGR solenoid valve 8 ISV solenoid valve (half)
4 MAF sensor 9 EGR valve
5 ISV 10 Air filter
Service Training BT-50 01-35
