Transmission S15M(X)-D Manual Transmission
Overview

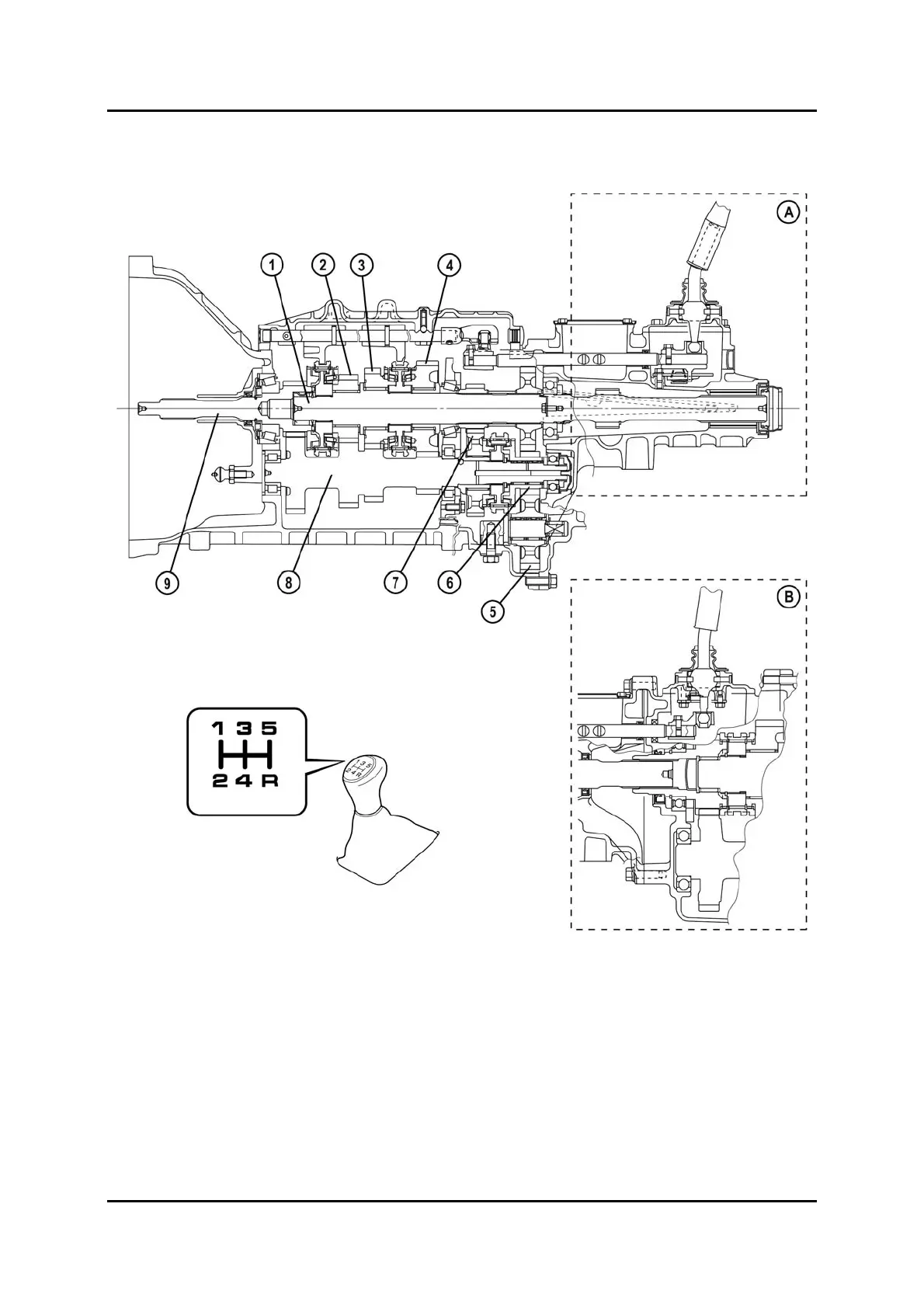

BT-50_05002
A Extension housing (S15M-D) 5 Reverse idler gear
B Transfer case (S15MX-D) 6 Reverse gear
1 Output shaft 7 5
th
gear
2 3
rd
gear 8 Counter shaft
3 2
nd
gear 9 Input shaft
4 1
st
gear
