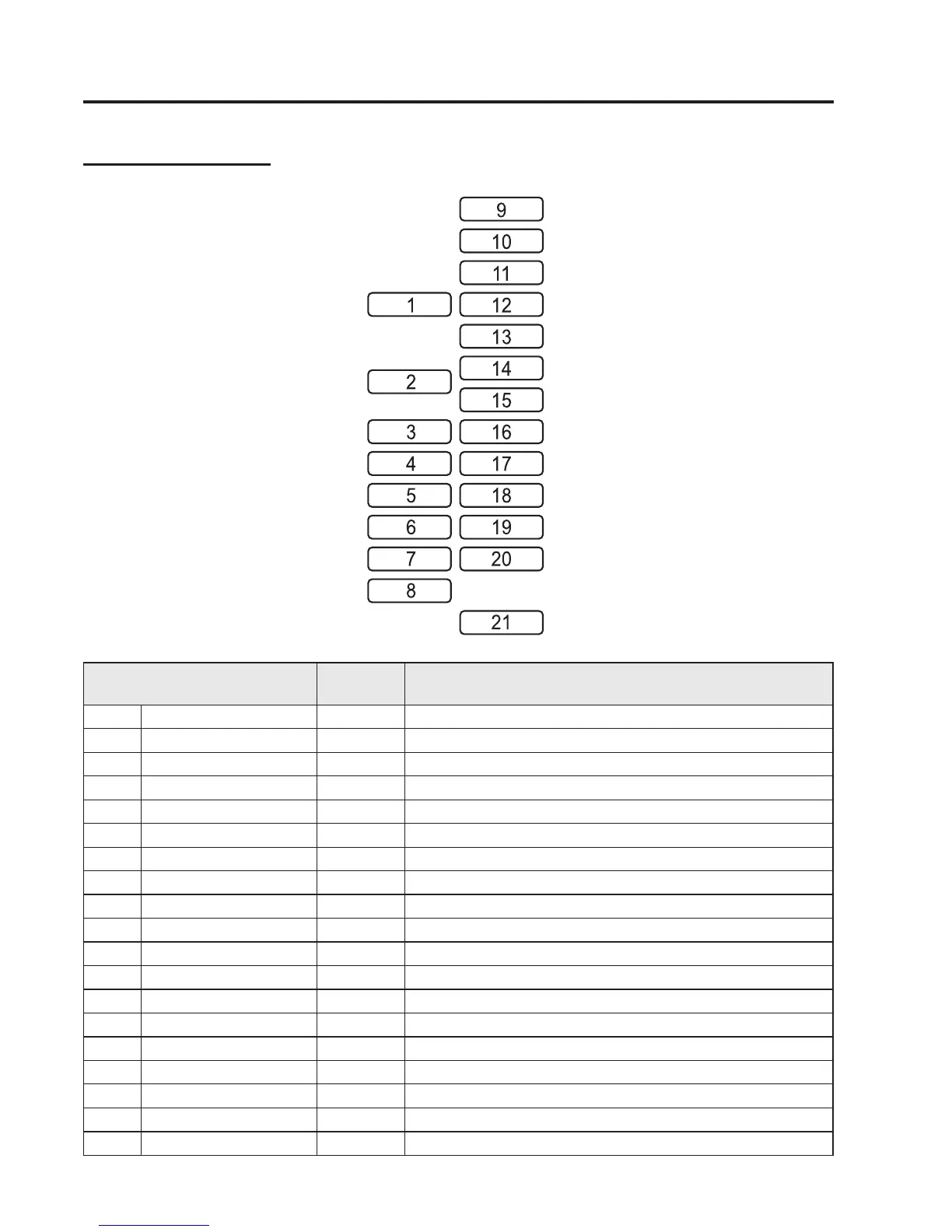

Fuse block (Left side)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 P.SEAT D 30 A Power seat
í
2 P.WINDOW3 30 A Power windows
í
3 R.OUTLET3 15 A ―
4 P.WINDOW2 25 A Power windows
5 SRS2/ESCL 15 A Electronic steering lock
6 D.LOCK 25 A Power door locks
7 SEAT WARM 20 A Seat warmer
í
8 SUNROOF 10 A Sunroof
í
9 F.OUTLET 15 A Accessory sockets
10 MIRROR 7.5 A Power control mirror
11 R.OUTLET1 15 A Accessory sockets
12 ―― ―
13 ―― ―
14 ―― ―
15 ―― ―
16 ―― ―
17 M.DEF 7.5 A Mirror defogger
í
18 ―― ―
19 ―― ―
6-66
Maintenance and Care
í
Some models.
Owner Maintenance
