qCurtain Air Bags

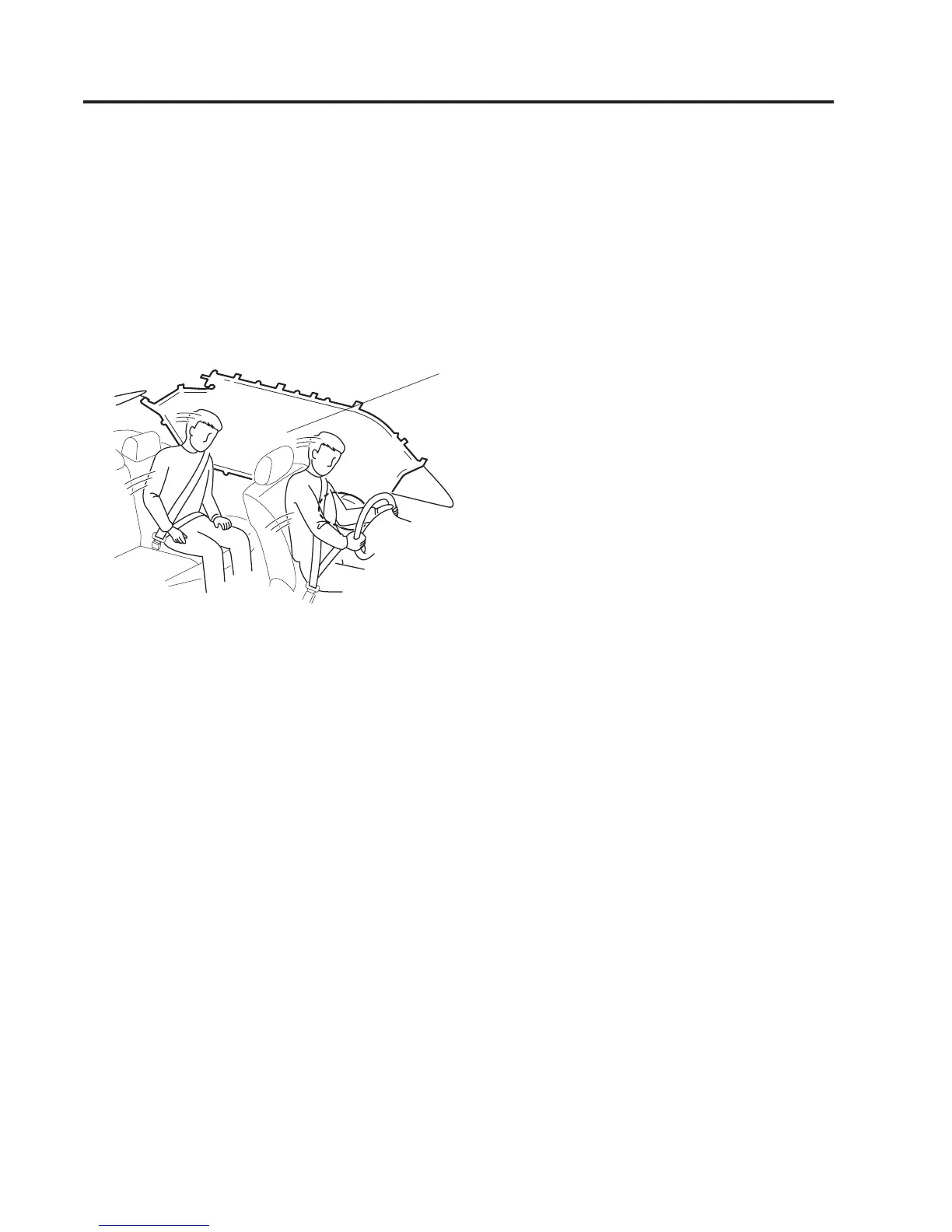

The curtain air bags are mounted in the front and rear window pillars, and the roof edge
along both sides.
When the air bag crash sensors detect a side impact of greater than moderate force, the
curtain air bag inflates quickly and helps to reduce injury mainly to the rear outboard
passenger's head caused by directly hitting interior parts such as a door or window.
For more details about air bag deployment, refer to “SRS Air Bag Deployment Criteria”
(page 2-55).
Only one side curtain air bag will deploy on the
side of the vehicle that receives the force of an
impact.
qWarning Light/Beep
A system malfunction or operation conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page 4-33.
Refer to Air Bag/Front Seat Belt Pretensioner System Warning Beep on page 7-47.
2-54
Essential Safety Equipment
SRS Air Bags
