BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–21
09-80B
2. Drill the 2 locations indicated by (C), and remove the front side frame component.
Note
• The 2 weld locations indicated by (C) cannot be seen from the interior.
End Of Sie
(B)2
(B)4

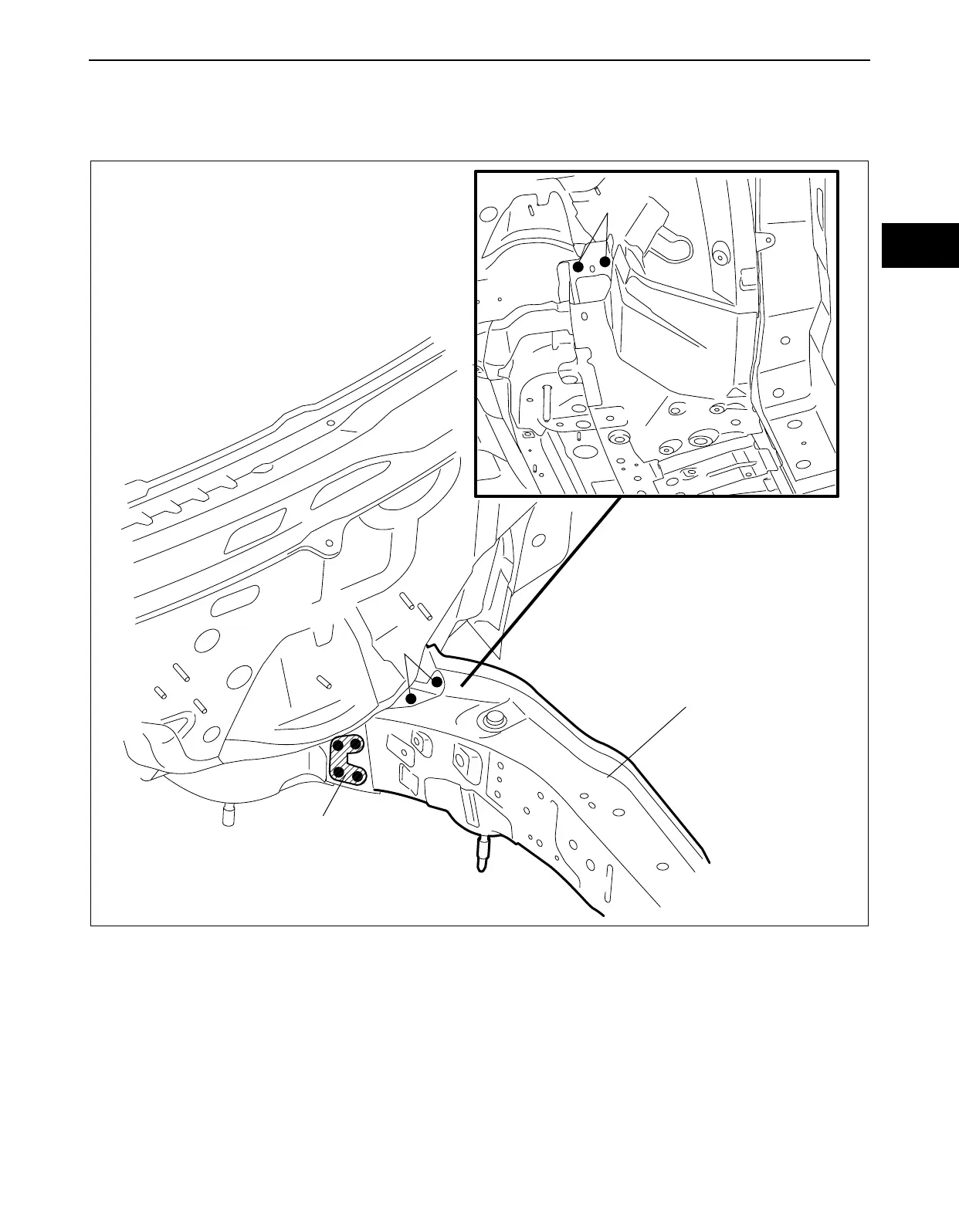

FRONT SIDE FRAME COMPONENT
(C)2
acxuub00000091
