BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–61
09-80B
REAR FENDER PANEL REMOVAL[PANEL REPLACEMENT]
id098008744900

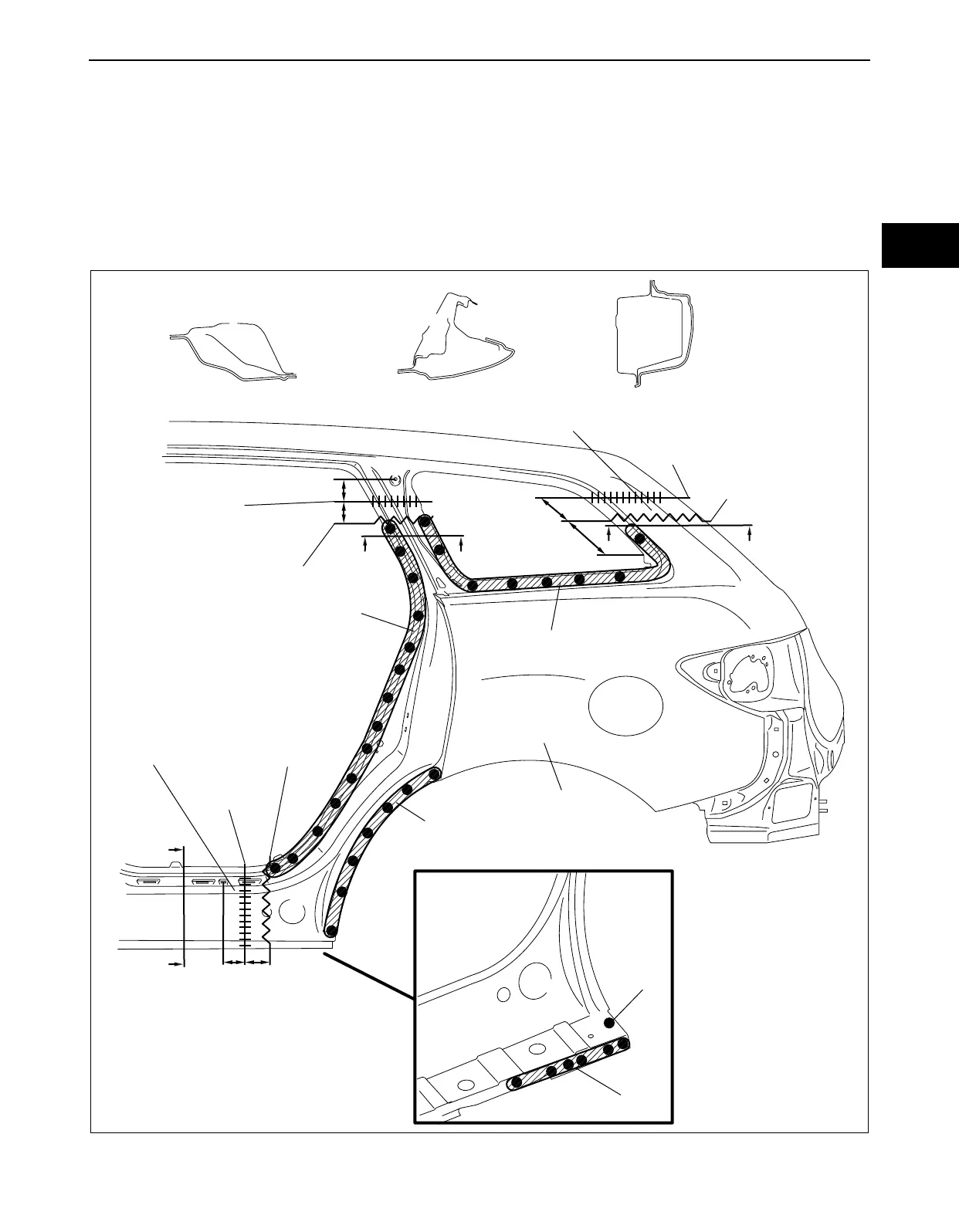

1. Rough cut area (A), drill the 73 locations indicated by (B).
Caution
• Avoid cutting with a blow torch or similar tools as the insulator (shaded area) is flammable.
2. The rear fender panel and the rear pillar (inner) are joined with spot weld sealer at the tire arch line. Use a
chisel or similar tool to separate the rear fender panel from the rear pillar (inner), then remove the rear fender
panel.
3. Remove the rear fender panel.
4. Remove the spot weld sealer using a disc grinder.
(B)6
(B)1
45mm {1.77in}
40mm
{1.57in}
140mm
{5.51in}
45mm
30mm
{1.77in}
{1.18in}
40mm {1.57in}
REAR FENDER PANEL
(B)8
(B)10
(B)21
(A)
(A)
CUT-AND JOIN
LOCATION
CUT-AND JOIN
LOCATION
CUT-AND JOIN
LOCATION
ROUGH CUT
LOCATION
ROUGH CUT
LOCATION
ROUGH CUT
LOCATION
BB
AA
C
C
(A)
A-A B-B C-C
INSULATOR
INSULATOR
acxuub00000115
