BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–32
105mm

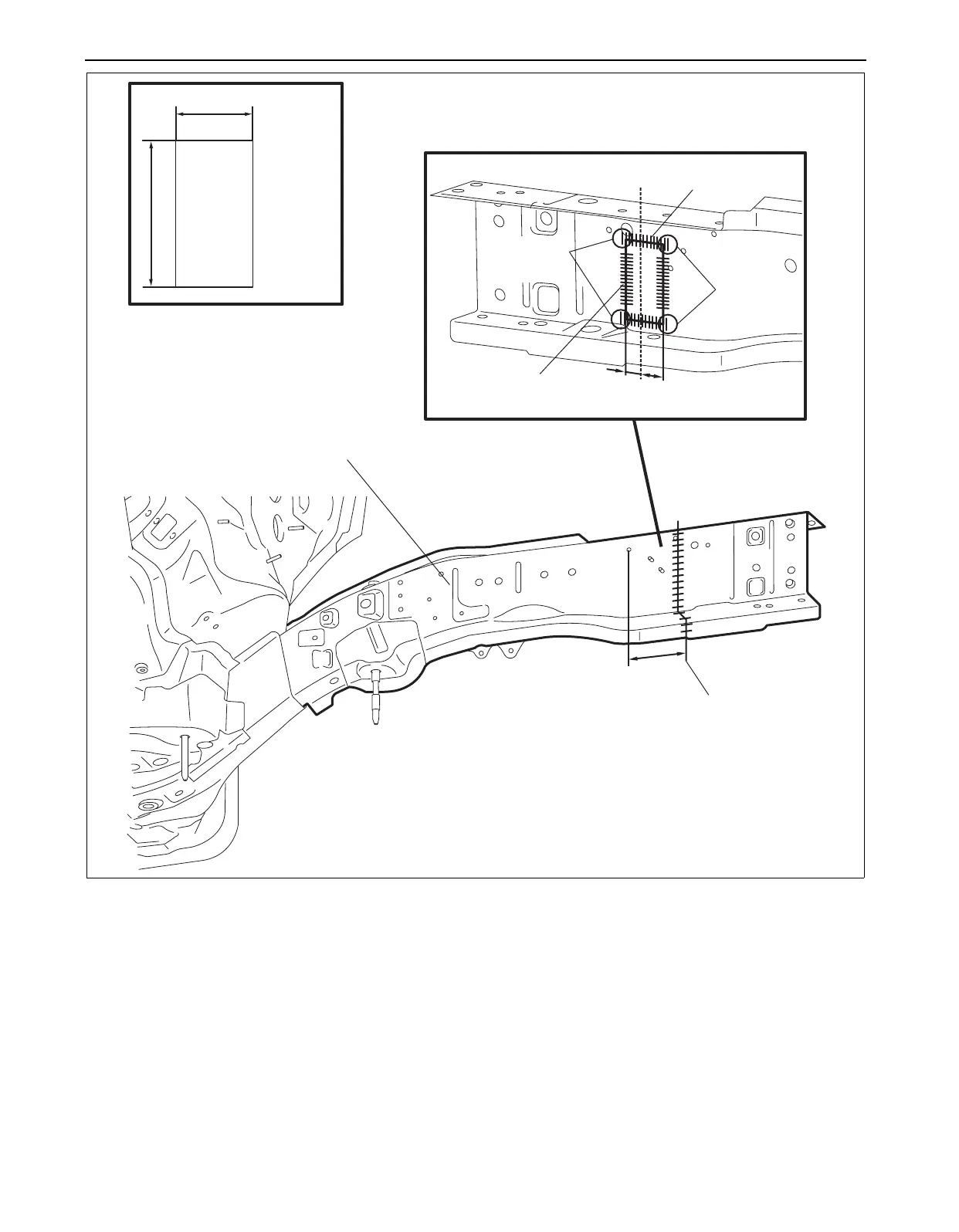

FRONT SIDE FRAME (INNER, LH)
100mm
25mm
REINFORCEMENT
CUT-AND-JOIN
LOCATION
{4.13in}
{0.09in}
{0.98in}
{3.94in}
L=70mm x 2
L=30mm x 2
t=2.3mm
{1.18in}
{2.76in}
EXTRUSION
BEAD
EXTRUSION
BEAD
15mm
{0.59in}
10mm
{0.39in}
