BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–80
6. After temporarily installing new parts, make sure the related parts fit properly.

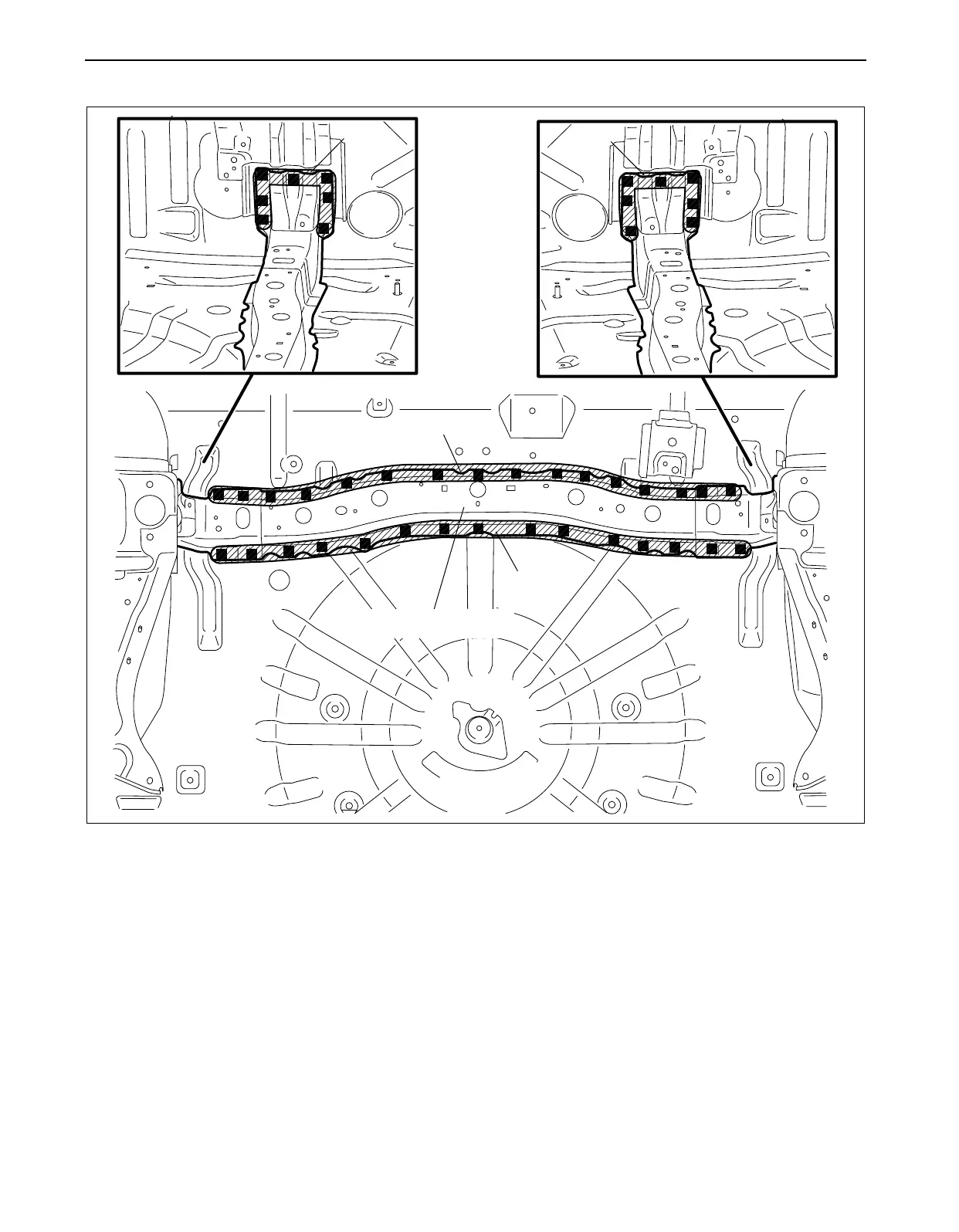

7. Install the crossmember No.5.
End Of Sie
BM: REAR SIDE FRAME
9
18
18
9
CROSSMEMBER No.5
acxuub00000144
