BODY STRUCTURE [DIMENSIONS]
09-80D–5
09-80D

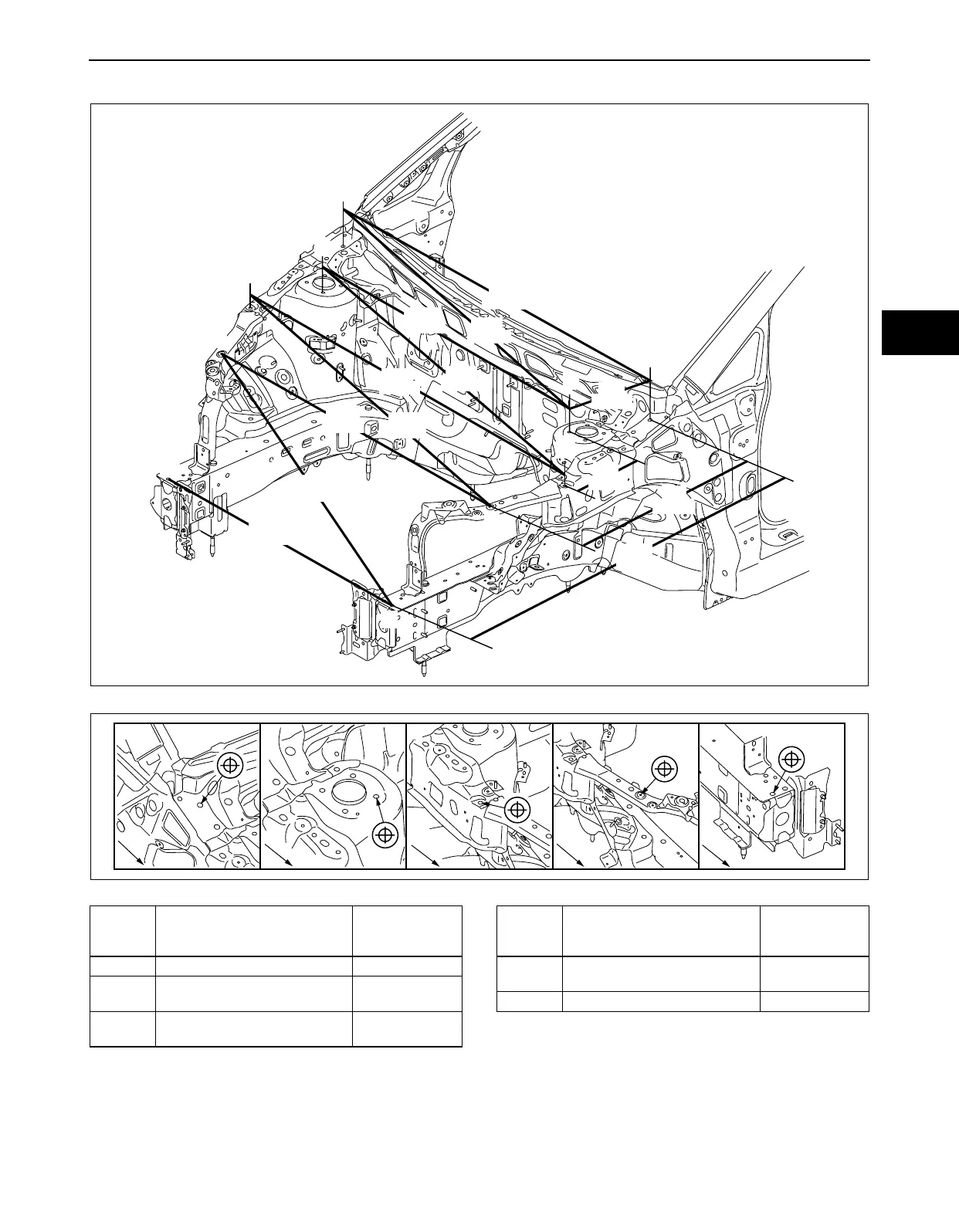

FRONT BODY STRAIGHT-LINE DIMENSIONS (2)[DIMENSIONS]
id098010740700
.
End Of Sie
A
B
C
D
E
A'
B'
C'
D'
E'
1,432
1,309
1,151
1,320
1,467
1,380
1,258
1,228
1,044
609
mm
1,014
255
235
{56.38}
{51.54}
{45.31}
{51.97}
{57.76}
{54.33}
{49.53}
{48.35}
{41.10}
{23.98}
{in}
{39.92}
{10.04}
{9.25}
acxuub00000006
Fr
Fr
Fr
Fr
Fr
A B C D E
acxuub00000007
Point
symbol
Designation
Hole diameter
or bolt or nut
size (mm {in})
A Hood hinge installation hole φ14 {0.55}
B
Suspension housing upper
datum hole
φ11 {0.43}
C
Apron reinforcement upper
datum hole
φ12 {0.47}
D
Shroud side member datum
hole
φ7 {0.28}
E Front side frame datum hole φ14 {0.55}
Point
symbol
Designation
Hole diameter
or bolt or nut
size (mm {in})
