BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–24
FRONT SIDE FRAME (PARTIAL CUTTING) REMOVAL[PANEL REPLACEMENT]
id098008742100
RH
Caution
• The rough cut area indicates the maximum size range of the installation position.

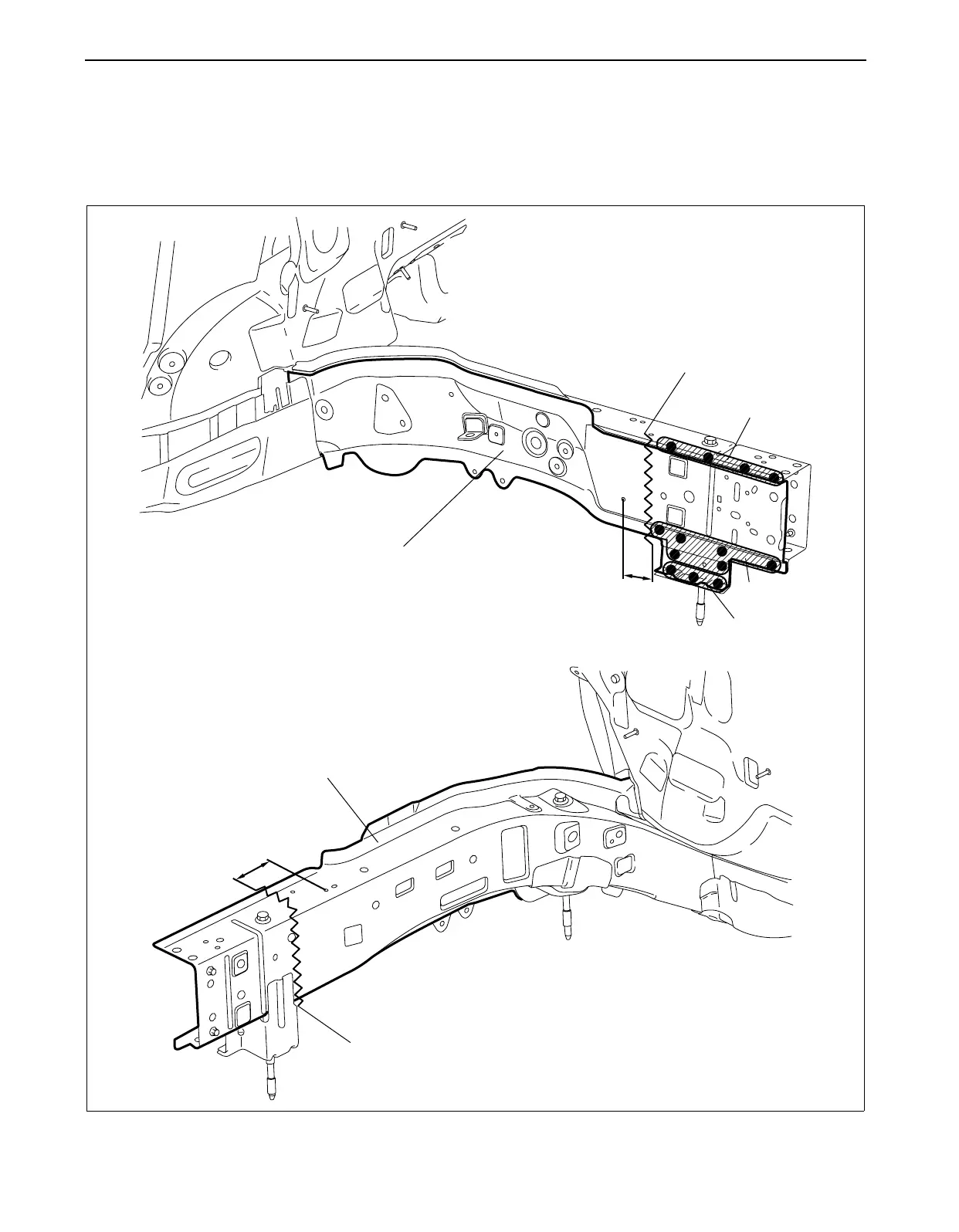

1. Rough cut area (A), drill the 18 locations indicated by (B), and then remove the front side frame.
(B)7
(B)8
(B)3
30mm
FRONT SIDE FRAME (OUTER, RH)
{1.18in}
ROUGH CUT AND
CUT-AND-JOIN LOCATION
(A)
85mm
FRONT SIDE FRAME (INNER, RH)
ROUGH CUT AND
CUT-AND-JOIN LOCATION
(A)
{3.35in}
acxuub00000110
