BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–25
09-80B
LH
Caution
• The rough cut area indicates the maximum size range of the installation position.

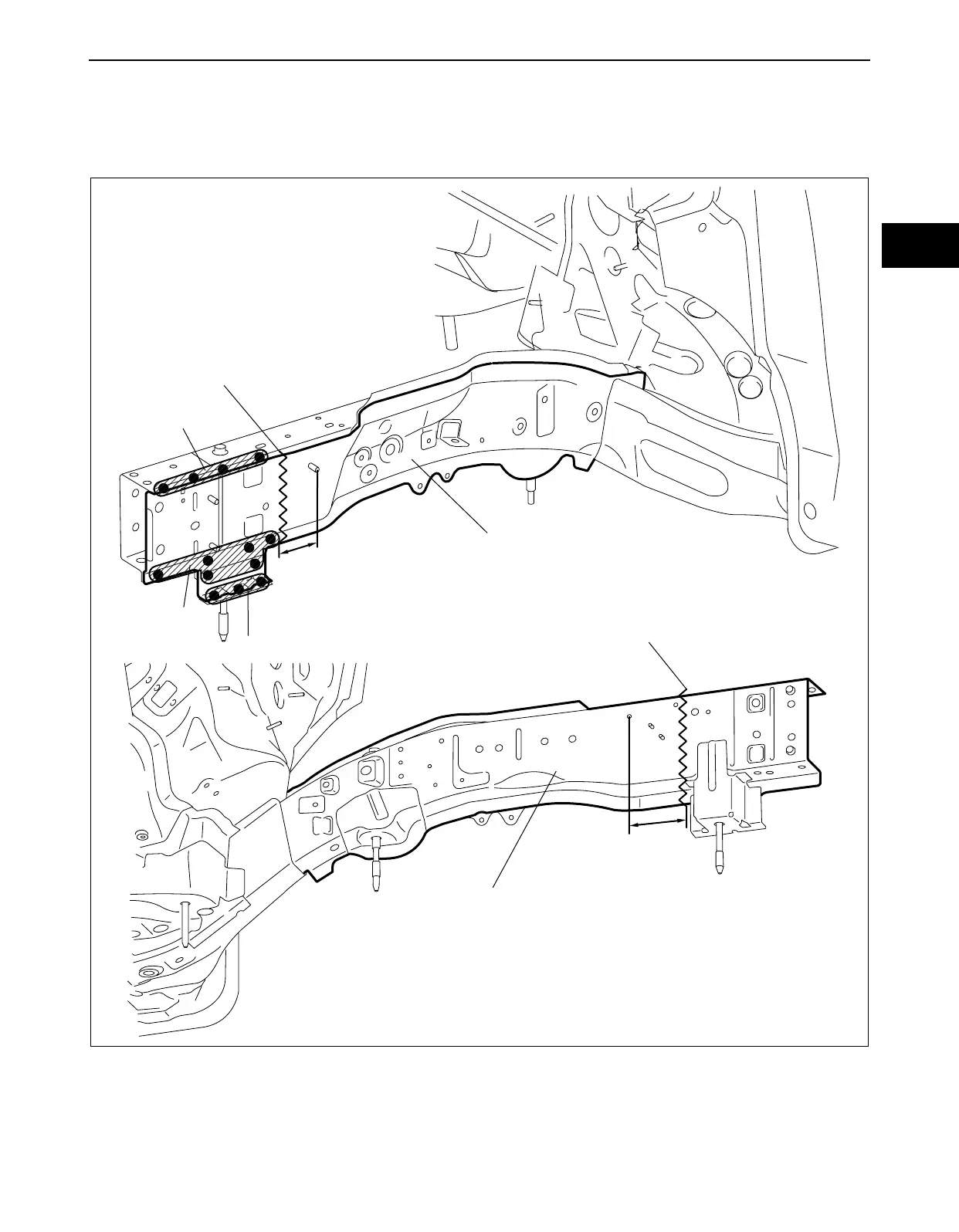

1. Rough cut area (A), drill the 18 locations indicated by (B), and then remove the front side frame.
End Of Sie
(B)7
(B)8
(B)3
FRONT SIDE FRAME (OUTER, LH)
50mm
(A)
ROUGH CUT AND
CUT-AND-JOIN LOCATION
{1.97in}
FRONT SIDE FRAME (INNER, LH)
105mm
ROUGH CUT AND
CUT-AND-JOIN LOCATION
(A)
{4.13in}
acxuub00000111
