Mazda CX-7 2011 - Room Straight-Line Dimensions (1)[Dimensions]

BODY STRUCTURE [DIMENSIONS]
09-80D–8
End Of Sie
BM: ROOM

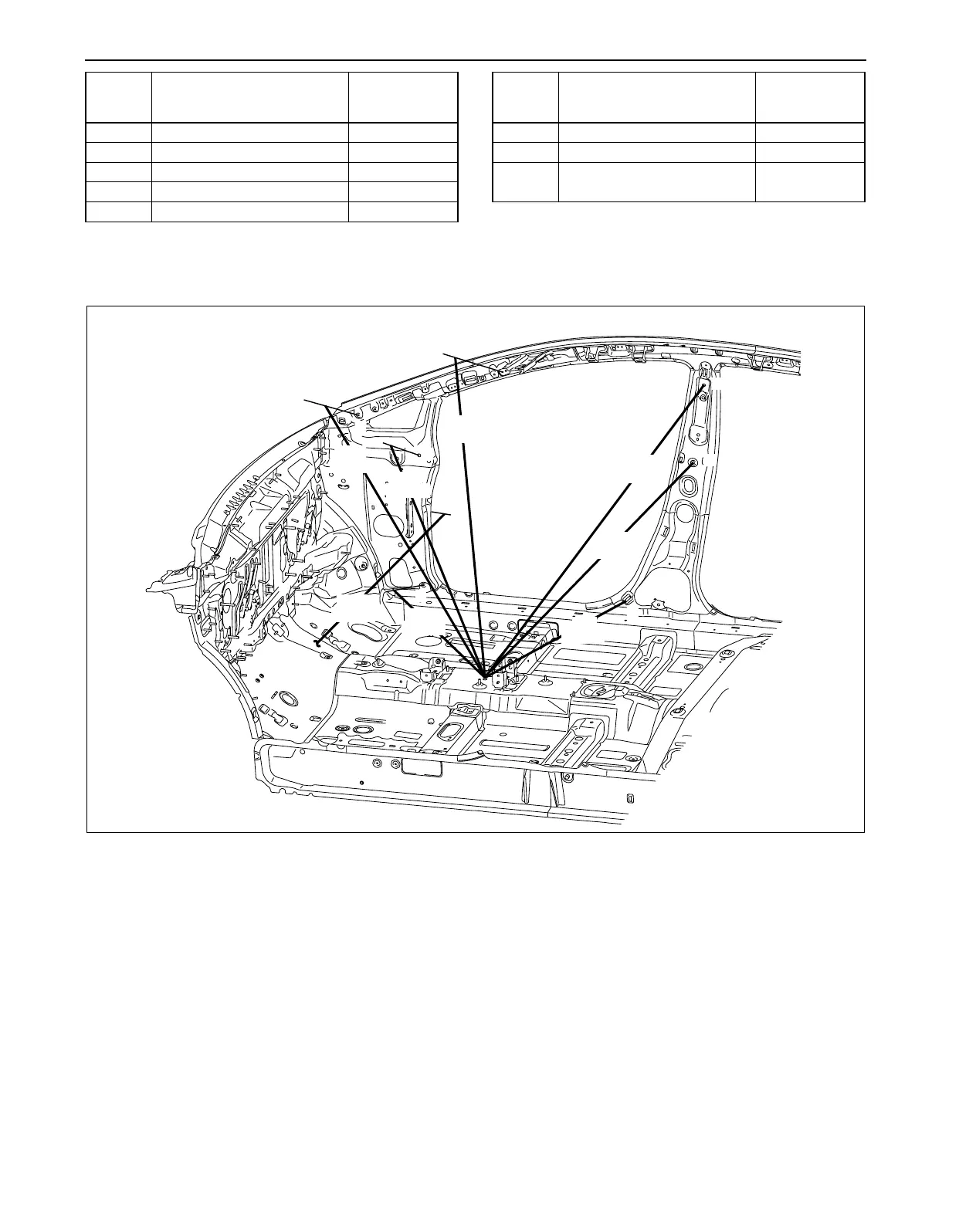

ROOM STRAIGHT-LINE DIMENSIONS (1)[DIMENSIONS]
id098010743300
D Side frame outer notch -
E Side frame outer datum hole φ12 {0.47}
F Side frame outer datum hole φ12 {0.47}
G Side frame outer notch -
H Side frame outer notch -
Point
symbol
Designation
Hole diameter
or bolt or nut
size (mm {in})
I Side frame outer datum hole φ8.2 {0.32}
J Side frame outer datum hole φ4.5 {0.18}
K
Front side frame outer datum
slot
φ8 × 6.1
{0.31 × 0.24}
Point
symbol
Designation
Hole diameter
or bolt or nut
size (mm {in})
A
B
I-I'
C
E
G
H
F
D
mm
1,129
1,006
1,315
1,102
797
1,195
1,538
864
{in}
{44.45}
{60.55}
{47.05}
{39.61}
{31.38}
{43.39}
{51.77}
{34.02}
