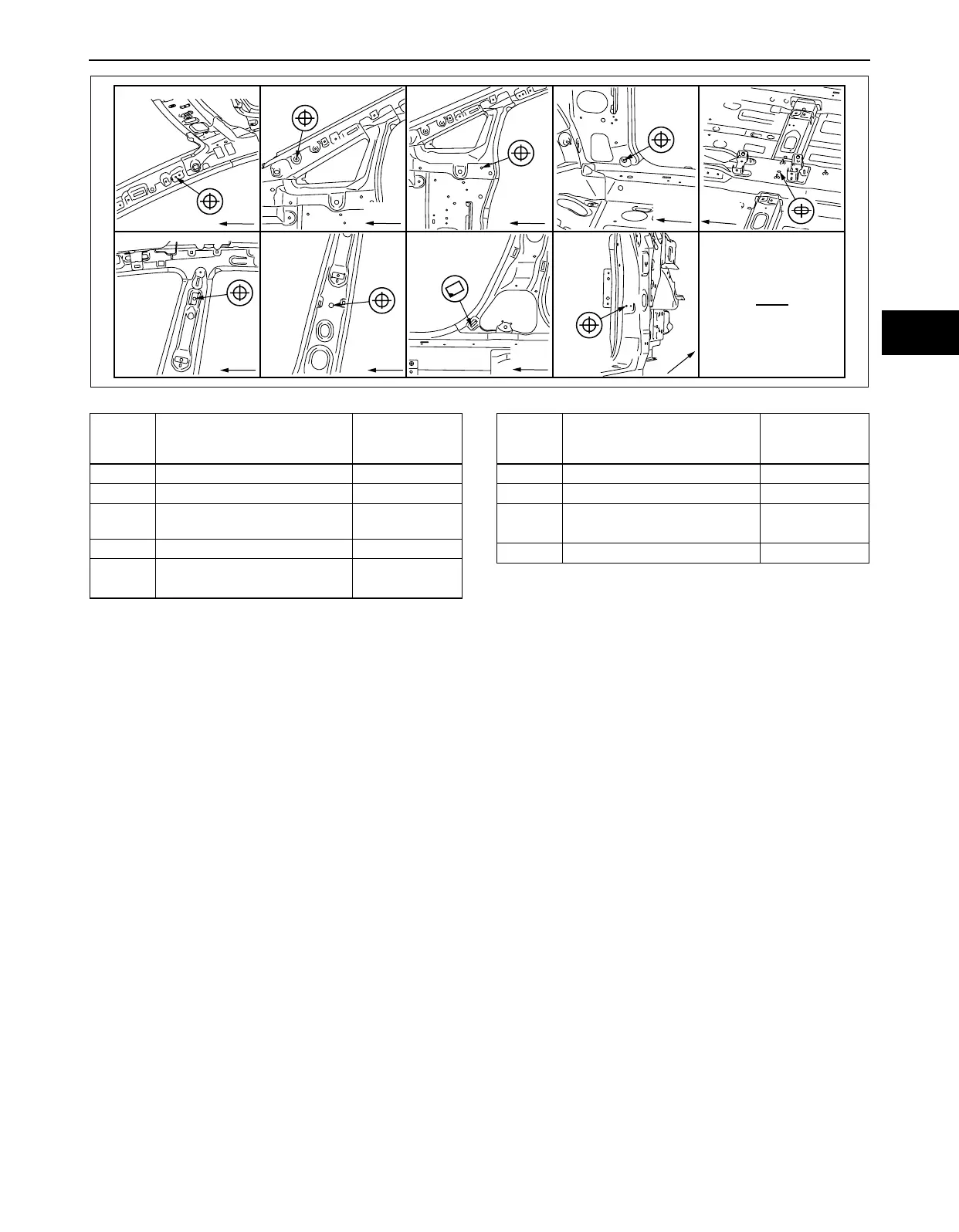

BODY STRUCTURE [DIMENSIONS]
09-80D–9
09-80D
.
End Of Sie
Fr
Fr
Fr
Fr
Fr Fr
Fr
Fr
Fr
A B C D E
F G H I
acxuub00000011
Point
symbol
Designation
Hole diameter
or bolt or nut
size (mm {in})
A Front pillar inner datum hole φ6 {0.24}
B Front pillar inner datum hole φ7 {0.28}
C
Front pillar inner reinforcement
datum hole
φ10 {0.39}
D Hinge pillar inner datum hole φ8.6 {0.34}
E
Instrument panel bracket
datum slot
φ12 × 18
{0.47 × 0.71}
F Center pillar inner datum hole φ16 {0.63}
G Center pillar inner datum hole φ10 {0.39}
H Center pillar inner square hole
26 × 6
{1.02 × 0.24}
I Side frame installation hole φ12 {0.47}
Point
symbol
Designation
Hole diameter
or bolt or nut
size (mm {in})
