BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–30

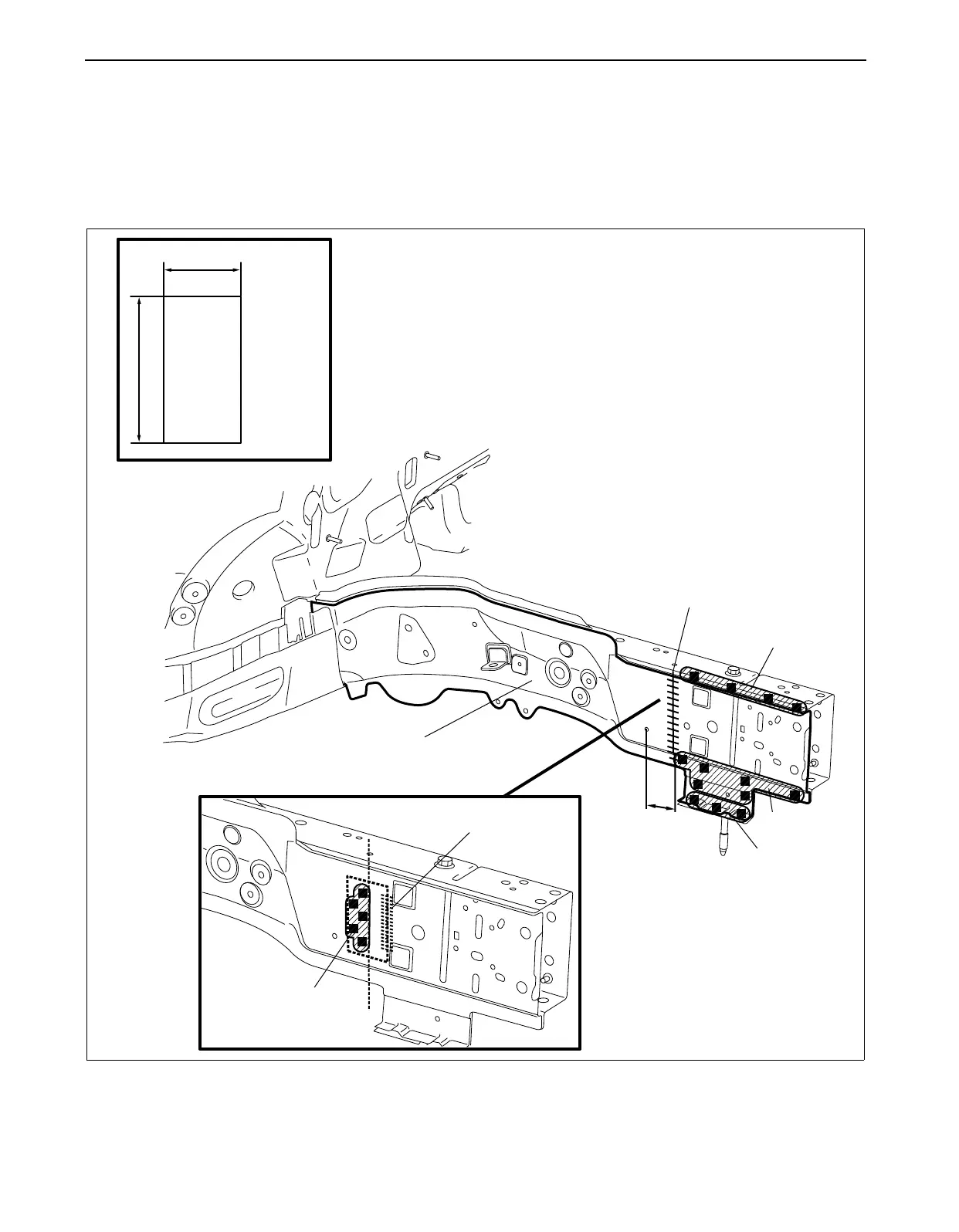

10. Because the front side frame (outer) cannot be welded to the existing parts from the inside of the panel, drill 5
plug weld holes at the locations indicated by (A) on the existing parts. Install the reinforcement and the existing
parts by plug welding from the outside, then butt weld the new and existing parts.
Caution
• Press fit the reinforcement panel and the body side material, and then plug weld them.
11. After temporarily installing new parts, make sure the related parts fit properly.
12. Install the front side frame (outer).
7
8
3
(A)5
L=70mm
FRONT SIDE FRAME (OUTER, RH)
30mm
CUT-AND-JOIN
LOCATION
{2.76in}
{1.18in}
100mm
50mm
t=2.3mm
REINFORCEMENT
{0.09in}
{1.97in}
{3.94in}
acxuub00000113
