BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–33
09-80B
7. Install the front side frame reinforcement.
8. Install the suspension mount reinforcement.
9. Install the suspension mount bolt.
Tightening torque
1.0—5.0 N·m {11—50 kgf·cm, 8.9—44 in·lbf}
L=50mm
{1.97in}
L=50mm
2
{1.97in}

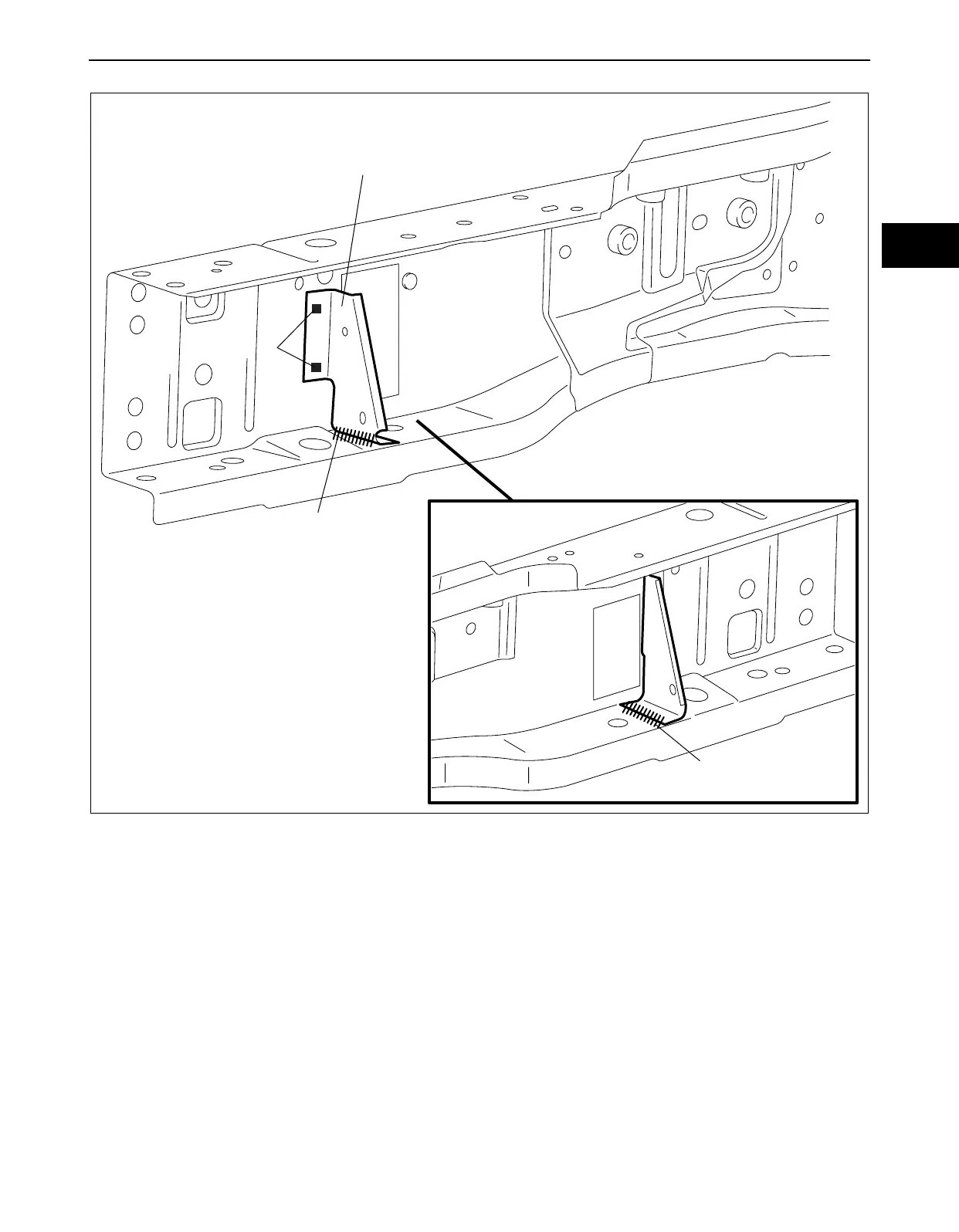

FRONT SIDE FRAME REINFORCEMENT (LH)
acxuub00000095
