BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–52

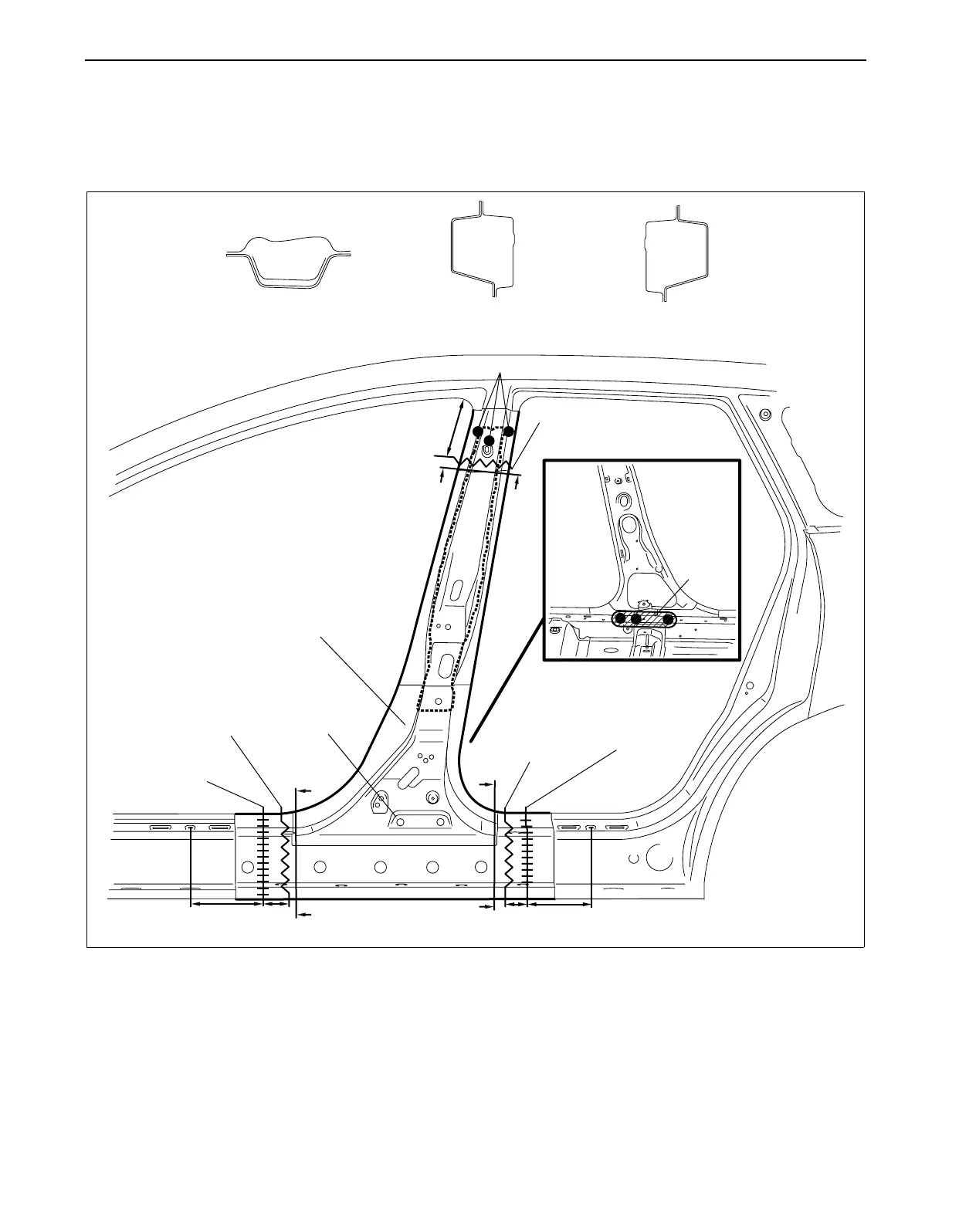

2. Rough cut area (C), drill the 3 locations indicated by (D).
Caution
• Avoid cutting with a blow torch or similar tools as the insulator (shaded area) is flammable.
3. Drill the 3 locations indicated by (E) from the interior.
4. Remove the center pillar inner reinforcement.
CENTER PILLAR
REINFORCEMENT
110mm
{4.33in}
150mm
{5.90in}
20mm
{0.79in}
30mm
180mm
{1.18in}
{7.09in}
ROUGH CUT AND
CUT-AND JOIN LOCATION
CUT-AND JOIN
LOCATION
CUT-AND JOIN
LOCATION
ROUGH CUT
LOCATION
(E)3
(C)
ROUGH CUT
LOCATION
(C)
(C)
(D)3
A
A
B
B
C
C
A-A
B-B C-C
INSULATOR
acxuub00000105
