BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–58
2. Rough cut area (C).
Caution
• During rough cutting, be careful not to damage the hinge reinforcement and the center pillar
reinforcement (inner) indicated by dotted lines in the figure.
3. Drill the 5 locations indicated by (D) from the interior.
4. Remove the side sill reinforcement.
End Of Sie

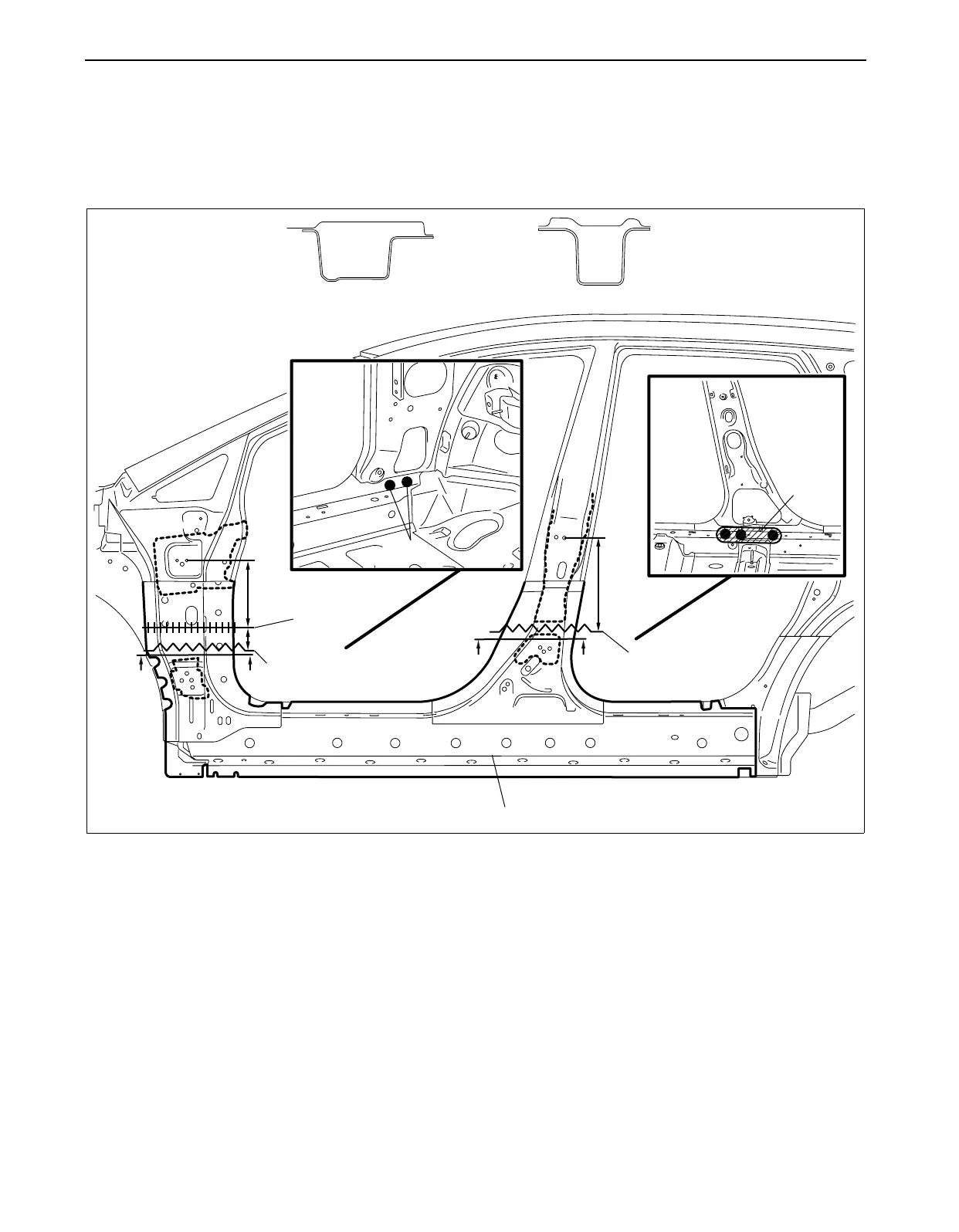

CUT-AND JOIN
LOCATION
ROUGH CUT
LOCATION
SIDE SILL REINFORCEMENT
ROUGH CUT AND
CUT-AND-JOIN
LOCATION
(C)
(C)
{9.45in}
240mm
270mm
{10.63in}
30mm
{1.18in}
AA
BB
A-A
B-B
(D)3
(D)2
