BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–70

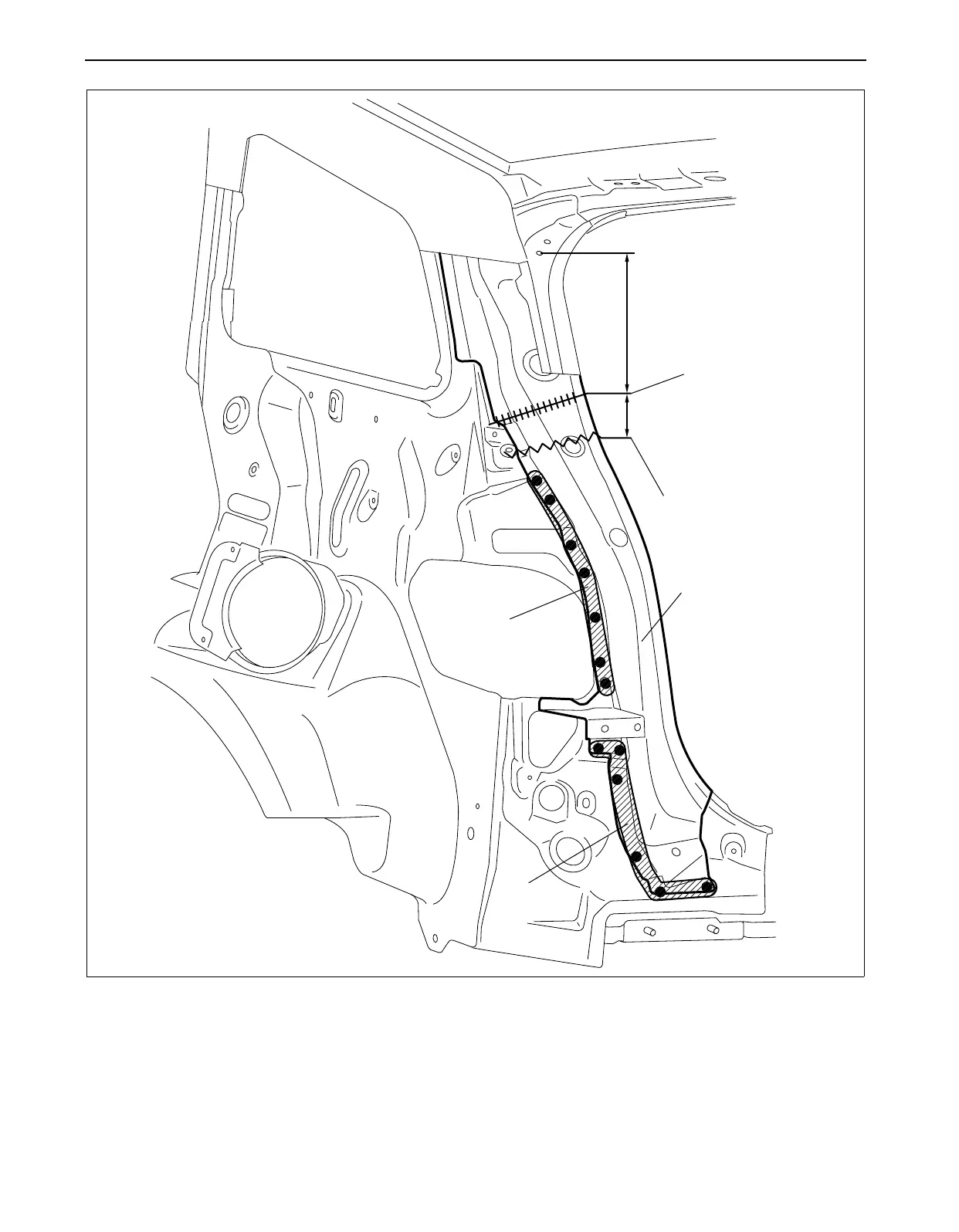

2. Rough cut area (D), drill the 13 locations indicated by (E).
CUT-AND JOIN
LOCATION
ROUGH CUT
LOCATION
REAR PILLAR
REINFORCEMENT
(E)7
(D)
(E)6
{9.84in}
250mm
30mm
{1.18in}
acxuub00000124
